Cougar Unity360-FB Single-Frame 360 ARGB PWM Forward, 120mm×3, 700–2500 RPM, FDB, 5,4 mmH2O, čierna

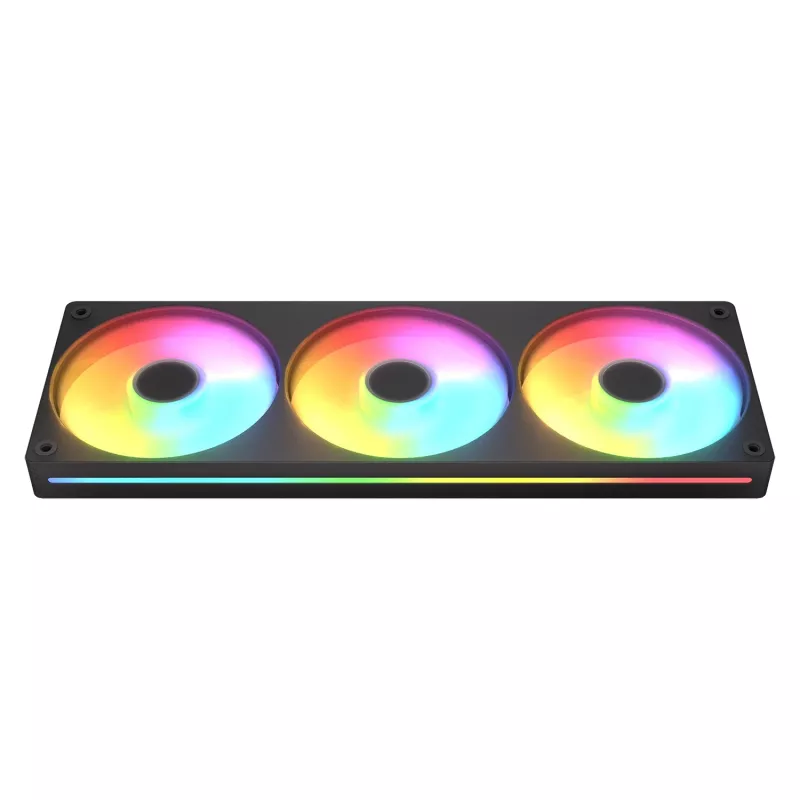

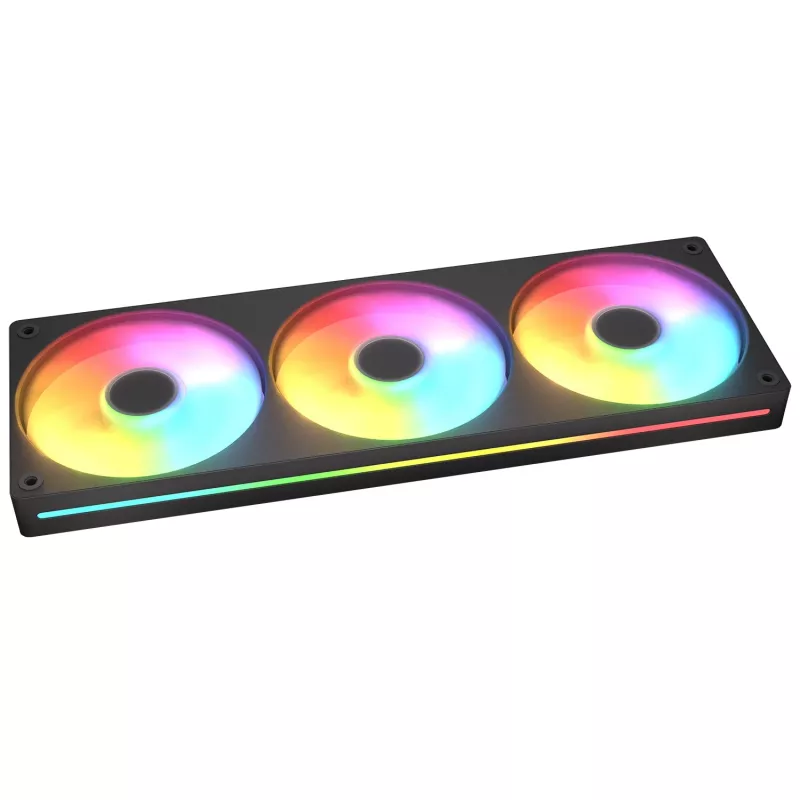

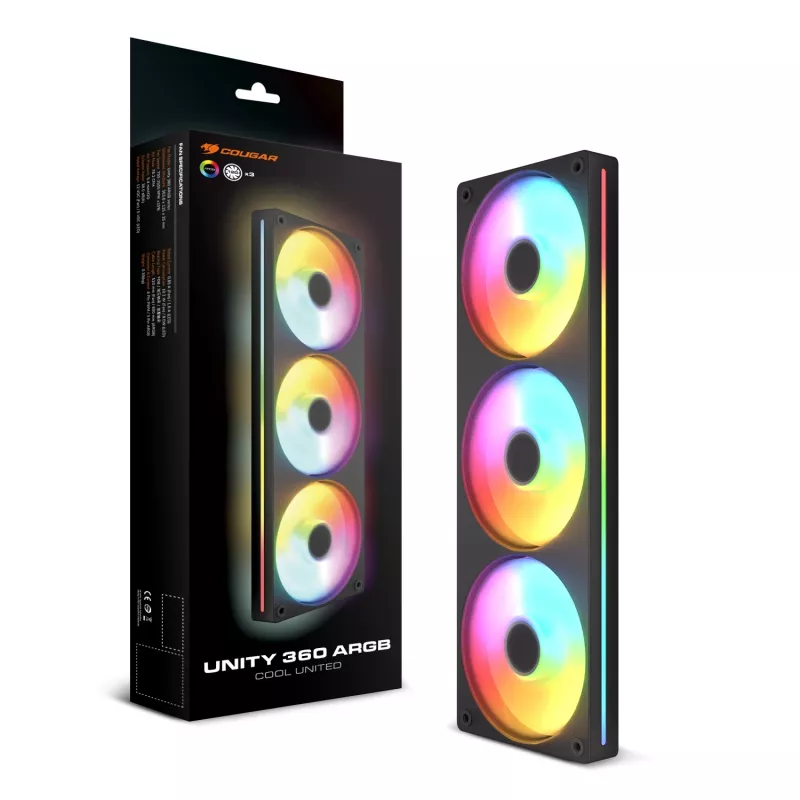

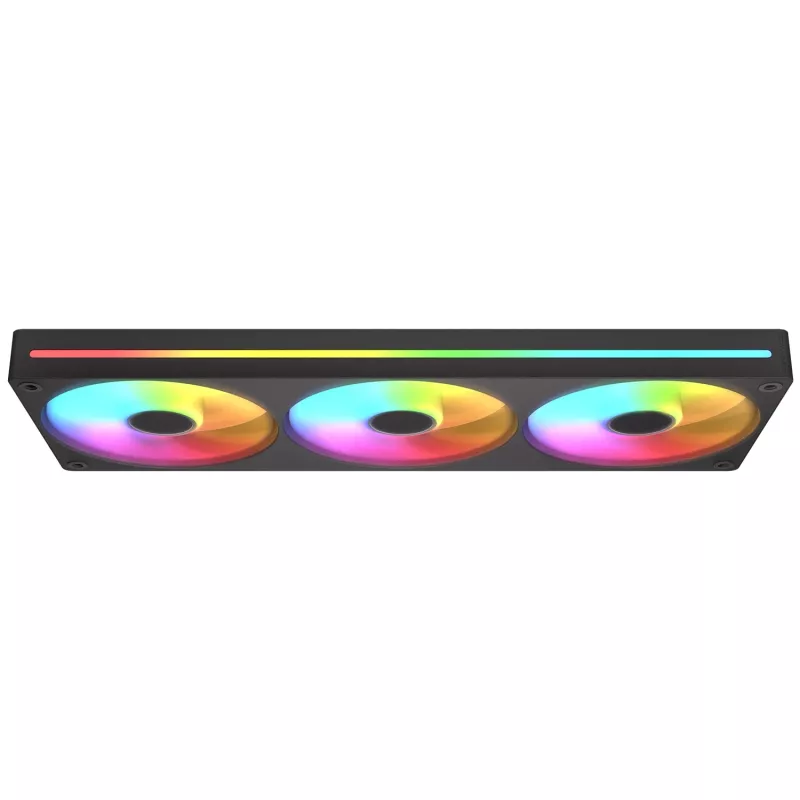

Cool United Unity360-FB is a single-frame 360 mm fan assembly that integrates three 120 mm PWM fans into a single unit. Designed for case and radiator cooling, the assembly offers adjustable PWM speed control, fluid dynamic bearings, ARGB side lighting, and a compact black frame measuring 363.6 × 25 × 125 mm for straightforward installation and neat cable routing.

Advantages

The single-frame design simplifies installation and lighting setup by connecting multiple fans as one unit, while PWM control automatically adjusts fan speed according to system temperature for a balance of performance and low noise. ARGB side strips provide vivid lighting effects that can be synchronized with motherboard software, and rubber corner dampers reduce vibration for near-silent operation. The streamlined cable design requires only two connections for power and lighting, minimizing clutter.

Suitable for

• Case cooling in mid-tower and full-tower PCs
• Radiator-mounted cooling for 360 mm AIO or custom loops
• Systems requiring addressable RGB lighting synchronized with motherboard software
• Quiet builds that still need high airflow and static pressure

Key specifications

• Three integrated 120 mm fans in a single 360 mm frame
• Speed range: 700–2500 RPM (PWM)
• Maximum air pressure: 5.4 mmH2O
• Maximum airflow: 78.2 CFM (per fan specification)
• Bearing type: Fluid Dynamic Bearing (FDB)
• Frame color: Black
• Overall dimensions: 363.6 × 25 × 125 mm

How to use

Mount the single-frame unit to a compatible 360 mm fan/radiator location in your case using the supplied screws, aligning the airflow direction as required for intake or exhaust. Connect the two required cables to the motherboard: one PWM fan connector for speed control and one ARGB header for addressable lighting, or use compatible controllers if your motherboard lacks ARGB/PWM headers. Ensure cables are routed to avoid interference with other components and that the rubber corners contact the case to damp vibrations.

Recommendations

For optimal cooling performance and noise control, enable PWM fan curves in your motherboard software and synchronize ARGB lighting through the motherboard RGB utility. Use the fans on radiators with sufficient clearance and ensure intake/exhaust balance to maintain positive or neutral case pressure depending on your build preference.
