Creaform Peel 2 CAD System + odolné puzdro 3D ručný skener (SYS-P3D-PEEL2CADPB)

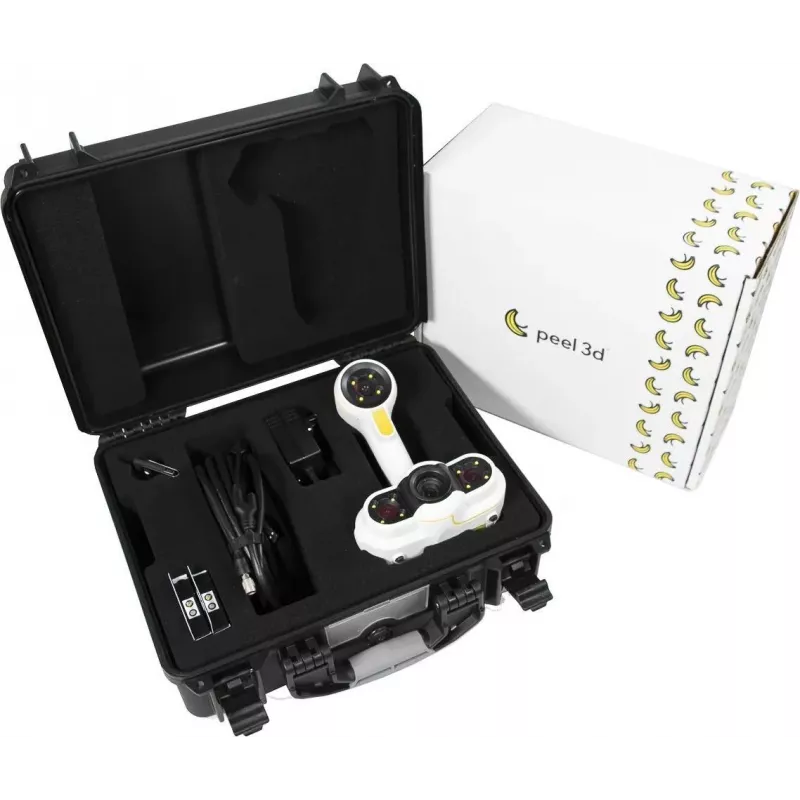

The Creaform Peel 2 CAD System is a professional handheld 3D scanner designed for reverse engineering and CAD workflows. This complete package includes the Peel 2 scanner, Peel.OS software license, calibration plate, USB cable, power supply, and a rugged transport case for safe storage and portability. With structured light technology, it delivers high accuracy and resolution for capturing complex geometries.

Advantages

High accuracy up to 0.100 mm and volumetric accuracy of 0.500 mm/m ensure reliable measurements. The scanner is lightweight at 0.95 kg and portable, making it ideal for on-site use. Advanced CAD integration features allow direct export to formats like STEP, IGES, and DXF, streamlining the reverse engineering process. The included rugged case provides protection during transport.

Suitable for

• Reverse engineering and product design
• Quality control and inspection
• 3D modeling for manufacturing
• Education and research

Key specifications

• Measurement Principle: Structured Light (White Light)
• Accuracy: Up to 0.100 mm
• Volumetric Accuracy: 0.500 mm/m
• Resolution: 0.250 mm
• Measurement Area: 380 x 380 mm
• Stand-off Distance: 400 mm
• Depth of Field: 250 mm
• Scan Speed: 500,000 measurements/second
• Texture Capture: Yes (Color)
• Software: Peel.OS
• Connectivity: USB 3.0
• Output Formats: OBJ, STL, PLY, ZPR, A3D, FBX, MA, DAE, X3D, TXT, CSV, DXF, IGES, STEP
• Scanner Weight: 0.95 kg
• Scanner Dimensions: 250 x 150 x 150 mm
• Operating Temperature: 0°C to 40°C
• Included: Peel 2 Scanner, Software License, Calibration Plate, USB Cable, Power Supply, Rugged Case

Recommendations

This system is ideal for professionals requiring precise 3D scanning for CAD applications. The rugged case ensures the scanner is protected and easy to transport. For best results, use in a controlled lighting environment.
