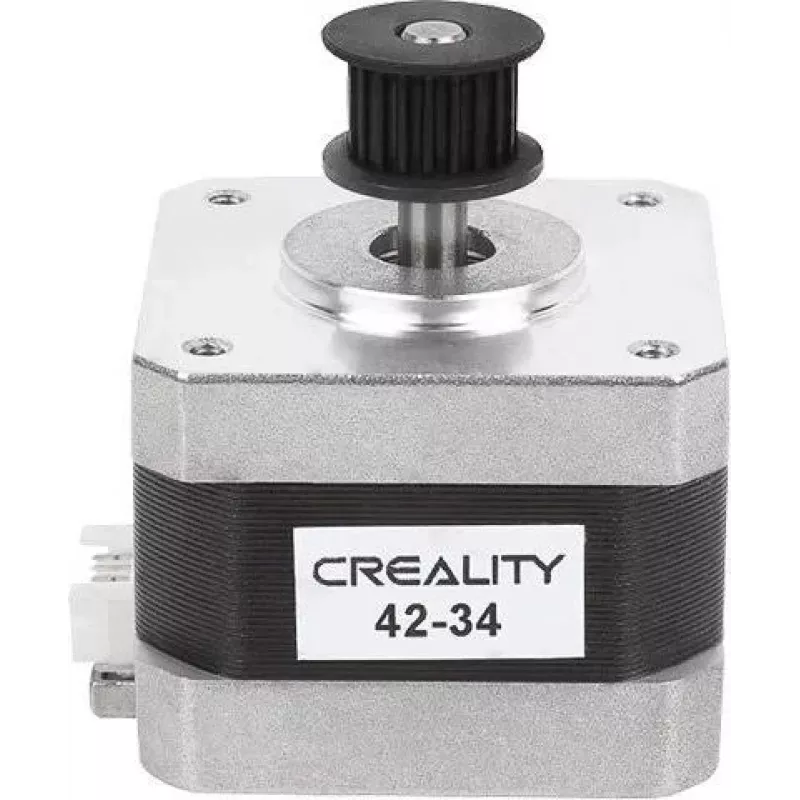

Creality CR-6 Max 42-34 krokový motor s 2GT-20 synchronizačným ozubeným kolieskom

The Creality CR-6 Max 42-34 Stepper Motor is a high-quality NEMA 17 replacement motor designed for Creality 3D printers. It features a 34mm body length and comes with a 2GT-20 synchronous gear, making it ideal for precise Z-axis movements. This motor ensures reliable performance and easy installation for your 3D printing needs.

Advantages

This stepper motor offers a step angle of 1.8° and a holding torque of 0.4 N.m, providing accurate and stable motion control. With a rated current of 1.5A and voltage of 3.6V, it delivers consistent power. The D-cut shaft and JST-XH connector simplify wiring and integration.

Suitable for

• Creality CR-6 MAX (Z-axis)
• Creality CR-10 Smart
• Creality Ender-3 S1 Series

Key specifications

• Motor Type: NEMA 17 Stepper Motor
• Step Angle: 1.8°
• Phase: 2-Phase
• Rated Voltage: 3.6V
• Rated Current: 1.5A
• Holding Torque: 0.4 N.m (56 oz.in)
• Body Length: 34 mm
• Shaft Diameter: 5 mm
• Shaft Type: D-Cut
• Shaft Length: 20 mm
• Number of Leads: 4-Wire
• Inductance: 3.5 mH ± 20%
• Resistance: 2.4 Ohm ± 10%
• Insulation Class: Class B
• Operating Temperature: -20°C to +50°C
• Connector Type: JST-XH 2.54mm 4-Pin
• Mounting Hole Spacing: 31 mm

Recommendations

Ensure compatibility with your printer model before purchase. This motor is specifically designed for Creality CR-6 MAX, CR-10 Smart, and Ender-3 S1 series printers. For best results, use with original Creality components.
