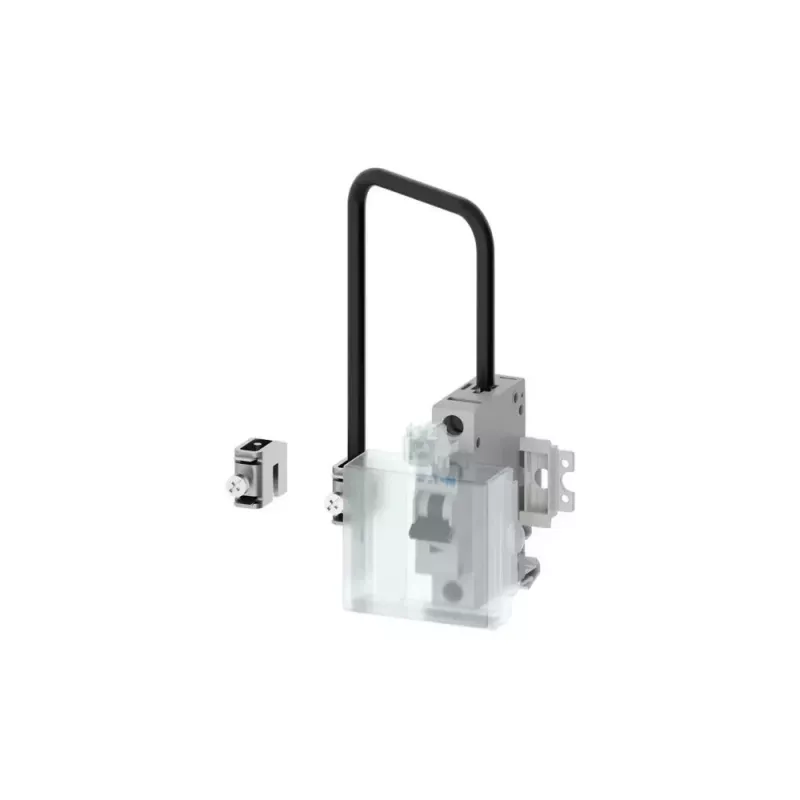

EATON ZSD-SPZ-SET 184514 odbočovacia súprava pre zbernicové systémy xEnergy

In industrial switchgear and power distribution panels, reliable voltage tapping from busbar systems is essential for auxiliary and control circuits. The EATON ZSD-SPZ-SET 184514 is an equipment package specifically designed for voltage tapping on Eaton xEnergy busbar systems. It provides a secure and fully insulated connection point for measurement and auxiliary circuits, ensuring safe operation in demanding environments. This set is ideal for panel builders and electrical engineers who need a quick, compliant solution for integrating control and monitoring functions into their power distribution infrastructure.

Key specifications

• Accessory type: Equipment package for voltage tapping
• Compatible with Eaton xEnergy busbar systems
• Fully insulated design for safe operation
• Rated system voltage up to 690V AC (system dependent)
• Intended for auxiliary and control circuits, measurement applications
• Material: High-grade insulating plastics and conductive metals
• Quick and secure installation directly on busbar
• Manufacturer article number: 184514
• Product series: xEnergy
• Compliance: Designed to meet relevant IEC standards

Why choose it

This equipment package streamlines the installation of voltage tapping points, reducing assembly time and ensuring consistent quality. Its fully insulated construction enhances safety, protecting personnel and equipment from accidental contact. Designed as part of the xEnergy series, it integrates seamlessly with Eaton's modular busbar systems, providing a reliable and standardized solution for auxiliary power distribution. The use of high-grade materials ensures durability and long-term performance in industrial environments.

Ideal use cases

• Voltage tapping for control circuits in switchgear and distribution boards
• Measurement applications requiring safe access to busbar voltage
• Integration of monitoring devices in industrial power distribution
• Retrofit or expansion of existing Eaton xEnergy installations
• Panel building projects requiring compliant auxiliary power connections

Good to know

The ZSD-SPZ-SET is a specialized accessory within Eaton's xEnergy portfolio, intended for use by qualified electrical personnel. It is not a standalone device but a set of components that enable voltage tapping when combined with compatible busbar systems. Always verify system voltage and current ratings against the specific application. The product is designed to meet relevant IEC standards, ensuring compatibility and safety in international projects. For detailed installation instructions and technical data, refer to the official Eaton documentation.
