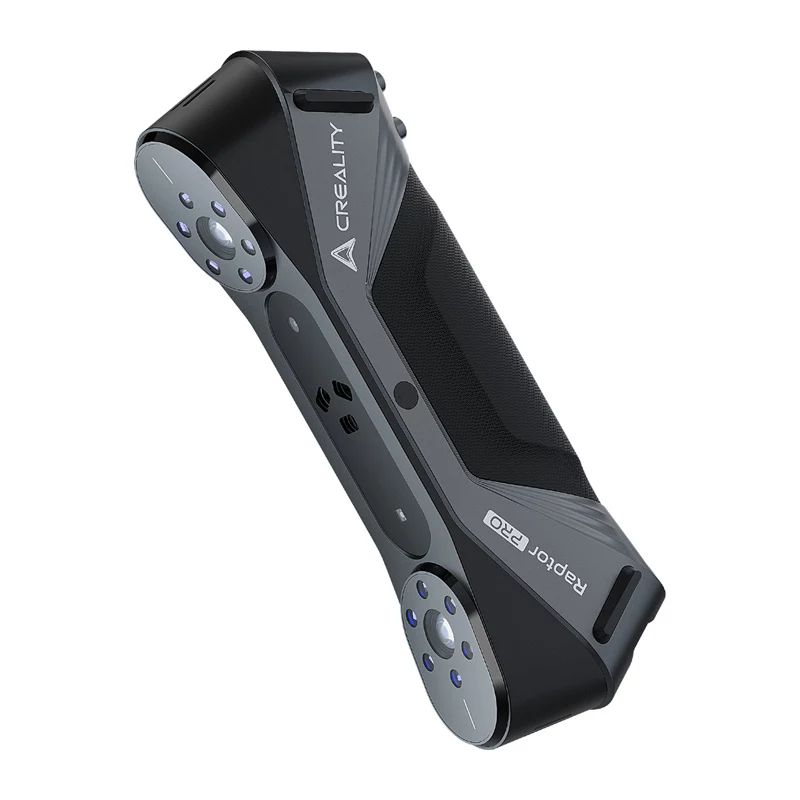

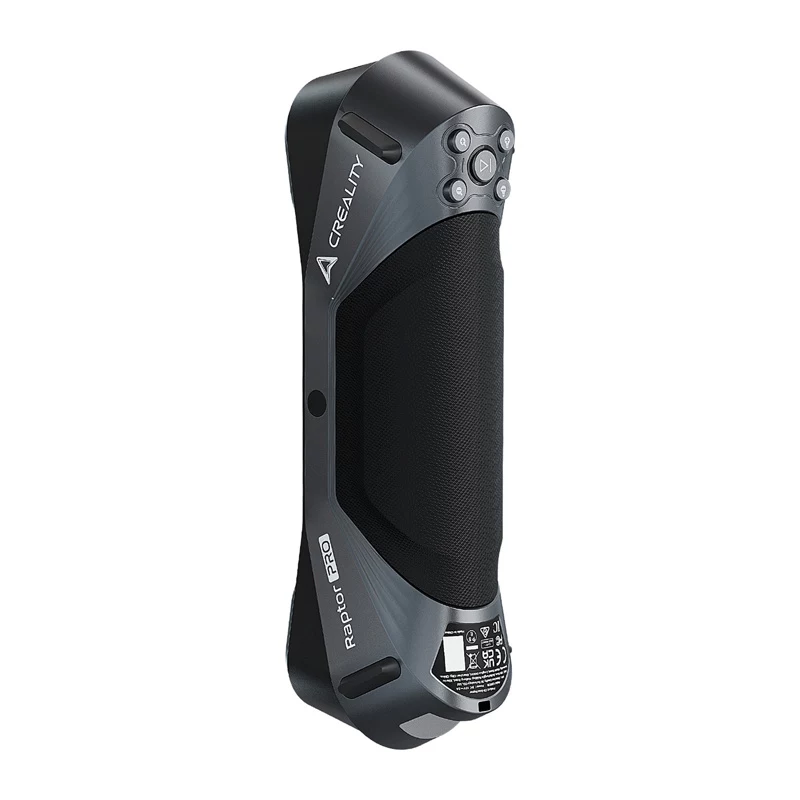

3D skener Creality CR-Scan Raptor Pro

The Creality CR-Scan Raptor Pro 3D Scanner is an advanced measuring tool designed for professional engineering, automotive, industrial, and design applications. It combines blue laser lines, near-infrared (NIR) structured light, and full-color RGB capture to deliver accurate, high-speed, and flexible 3D scanning.

Key features

• Dual blue laser system with 22 cross laser lines for wide area coverage and 7 parallel laser lines (each 0.1 mm thick) for fine details
• Near-infrared (NIR) structured light scanning at up to 30 frames per second
• Scanning range from 5 × 5 × 5 mm to 4000 × 4000 × 4000 mm
• Volumetric accuracy of 0.02 mm + 0.08 mm/m
• Temperature compensation algorithm for stable, repeatable results
• Up to 660,000 points per second and scanning frequency up to 60 frames per second
• Markerless and spray-free scanning for objects rich in geometric features, including black and metallic surfaces
• Face & Body mode with dedicated face mapping algorithm; full body scan in as little as 2 minutes
• One-Shot 3D imaging technology for natural image stabilization and reduced risk of losing tracking
• Quick rewind function
• Blue laser resistant to ambient light: outdoor scanning up to 50,000 lux in 7-line mode and up to 100,000 lux in 22-cross-line mode
• Ring light indicator, physical control buttons, non-slip housing, and detachable lanyard
• 2.3 MP 3D camera

Specifications

• Brand: Creality
• MPN: 4008050057
• Scanning technologies: blue laser lines, near-infrared (NIR) structured light, full-color RGB capture
• Laser modes: 22 cross laser lines, 7 parallel laser lines (0.1 mm thickness)
• NIR scanning speed: up to 30 frames per second
• Scanning range: 5 × 5 × 5 mm to 4000 × 4000 × 4000 mm
• Volumetric accuracy: 0.02 mm + 0.08 mm/m
• Point rate: up to 660,000 points per second
• Scanning frequency: up to 60 frames per second
• Ambient light resistance: up to 50,000 lux (7-line mode), up to 100,000 lux (22-cross-line mode)
• 3D camera: 2.3 MP
