Revopoint Trackit optický 3D skener

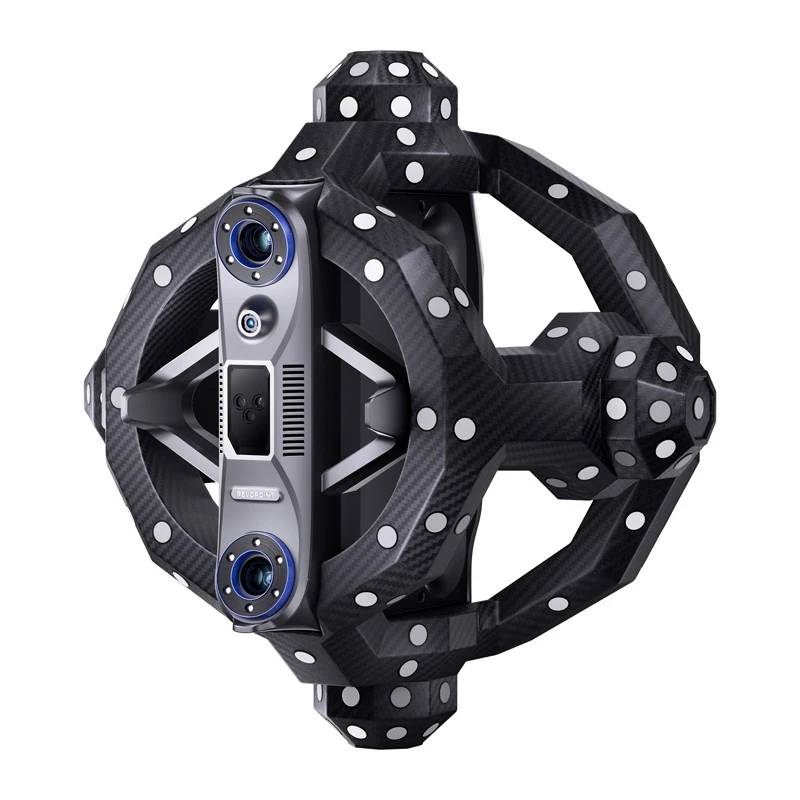

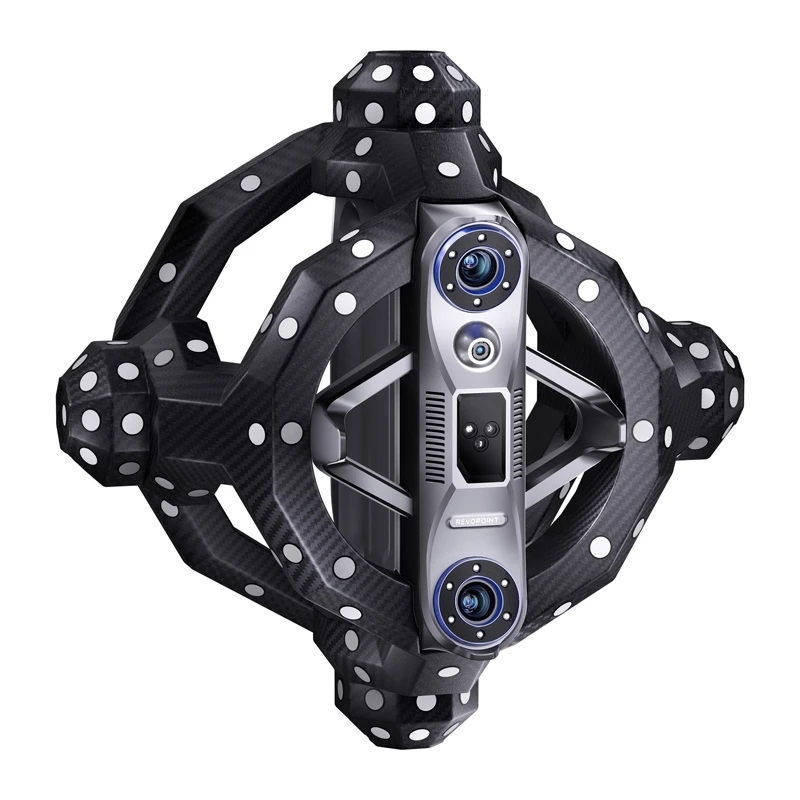

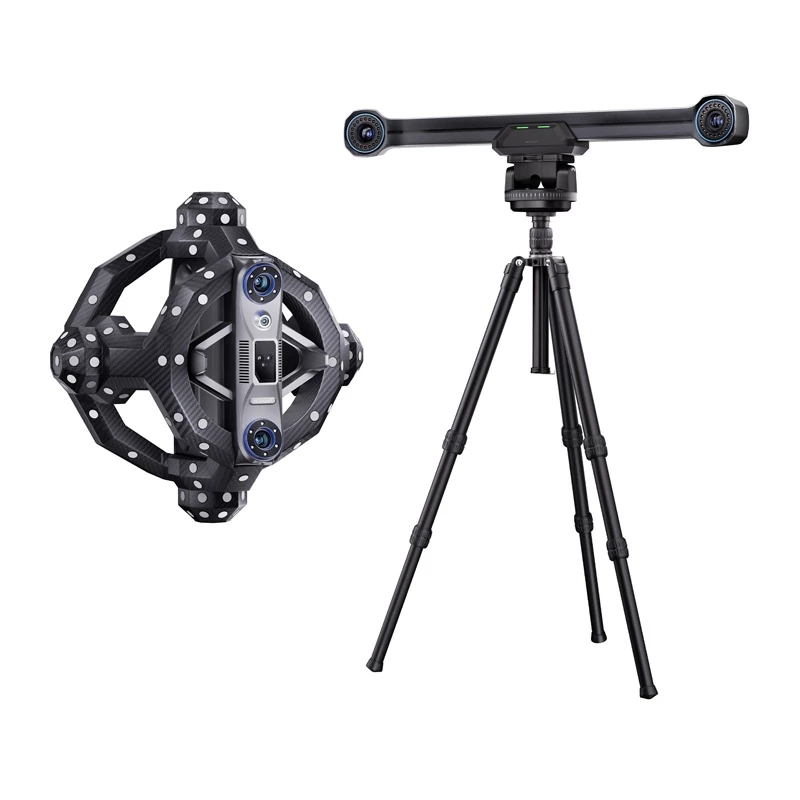

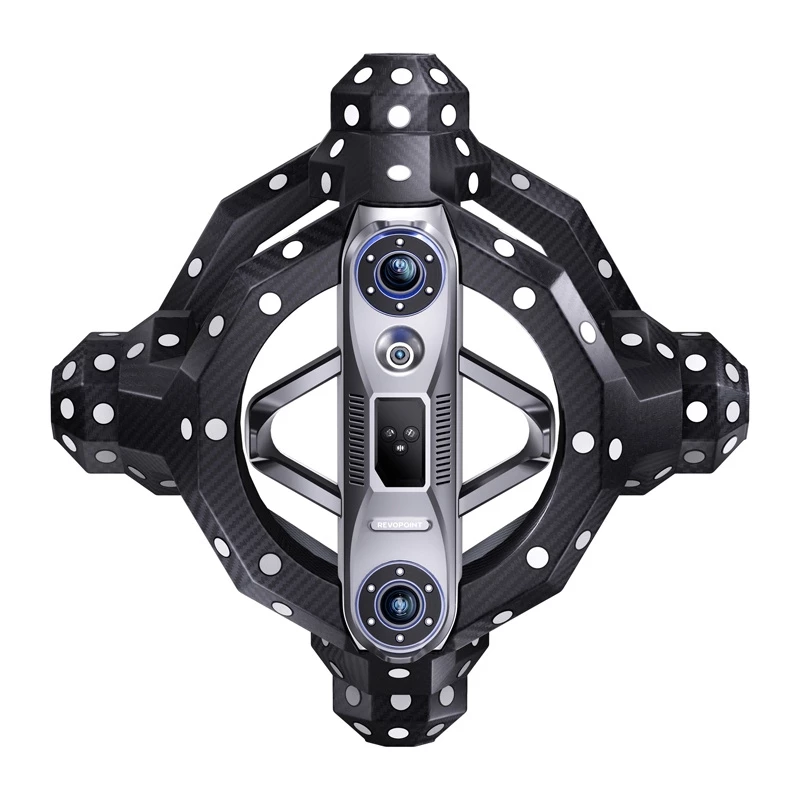

The Revopoint Trackit is an optical 3D scanner that combines a 0.02 mm accuracy scanner with an advanced space tracking tracker. It is designed for engineers, CAD designers, quality control specialists, and industrial companies, providing fast, stable and repeatable scanning of both small components and large objects without the need for markers.

Key features

• Measurement precision of 0.02 mm and point distance up to 0.05 mm
• Depth cameras supported by blue lasers (30 lines and 1 single line)
• Scanning speeds up to 1,500,000 points per second
• Intelligent tracking of scanner movement in space, no markers required
• Track Scan mode for real-time recording of scanner position and angle
• Multi-Position Scan for large models, automatically combined into a single point cloud
• Marker Scan mode using magnetic or self-adhesive markers
• Automatic calibration with Dual-Axis Gimbal System
• Revo Trackit software for managing the entire scanning process
• Export formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Specifications

• Brand: Revopoint
• MPN: TRACKIT
• Material: Polycarbonate
• Scanner weight: 1.2 kg
• Tracker weight: 1.8 kg
• Operating temperature range: 0 to 40°C
• Carbon fiber frame and polycarbonate housing
• Mountable on included tripods
• Dedicated carrying cases with wheels
