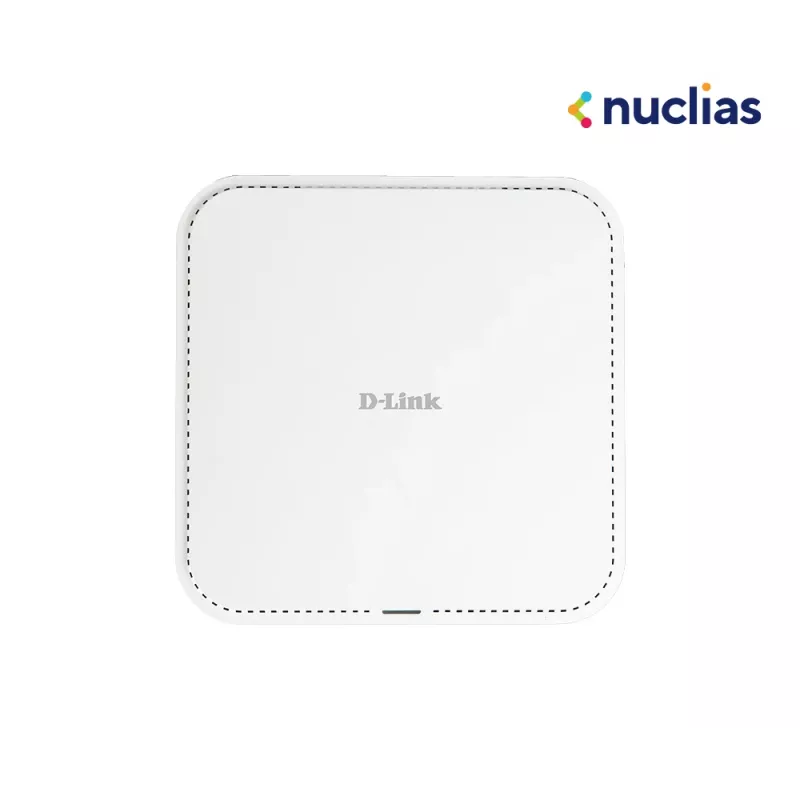

D-Link DAP-E3620 Nuclias Connect BE3600 Wi-Fi 7 Access Point

The D-Link DAP-E3620 stands out with Wi-Fi 7 technology, delivering multi-gigabit speeds and ultra-low latency for dense, high-demand environments. Managed via D-Link Nuclias Connect, it offers flexible deployment either standalone or as part of a centrally controlled network.

Highlights

• Wi-Fi 7 (802.11be) with BE3600 aggregate speed
• Dual-band concurrent operation: 2.4 GHz and 5 GHz
• 2.5 Gigabit Ethernet port with PoE+ for simplified installation
• Advanced features: OFDMA, MU-MIMO, beamforming
• Robust security with WPA3-Personal/Enterprise

In daily use

Deploy the DAP-E3620 in offices, schools, or retail spaces to provide reliable, high-speed wireless coverage. Its internal omni-directional antennas ensure consistent signal distribution, while band steering and airtime fairness optimize client performance. Power it via 802.3at PoE+ or the included 12V/2A DC adapter (if available) for flexible placement.

Full specifications

• Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be)
• Aggregate Speed: BE3600 (2.4 GHz: 1148 Mbps, 5 GHz: 2402 Mbps)
• Frequency Bands: Dual-band (2.4 GHz and 5 GHz)
• Antenna Type: Internal omni-directional
• Antenna Gain: 2.4 GHz: 4 dBi, 5 GHz: 5 dBi
• MIMO: 4x4 MU-MIMO on both bands
• Ethernet Ports: 1 x 2.5 Gigabit Ethernet (PoE+), 1 x Gigabit Ethernet
• Power over Ethernet: 802.3at PoE+
• Management: D-Link Nuclias Connect, standalone mode
• Security: WPA3-Personal/Enterprise, WPA2-Personal/Enterprise, captive portal
• Advanced Features: OFDMA, MU-MIMO, beamforming, band steering, airtime fairness, load balancing
• Maximum SSIDs: 16 (8 per band)
• Maximum Clients: 256 (128 per band)
• VLAN Support: 802.1Q
• Mounting: Wall/ceiling (kit included)
• Power Input: 12V/2A DC or 802.3at PoE+
• Operating Temperature: 0 to 40 °C
• Wireless Modes: Access Point, WDS, WDS with AP

Final note

The DAP-E3620 is a future-ready access point that combines Wi-Fi 7 performance with centralized management, making it an ideal choice for scalable, high-density networks.
