D-Link DIS-100E-05 priemyselný neupravovateľný Ethernet switch, 5x 10/100Base-TX, montáž na DIN lištu, IP30

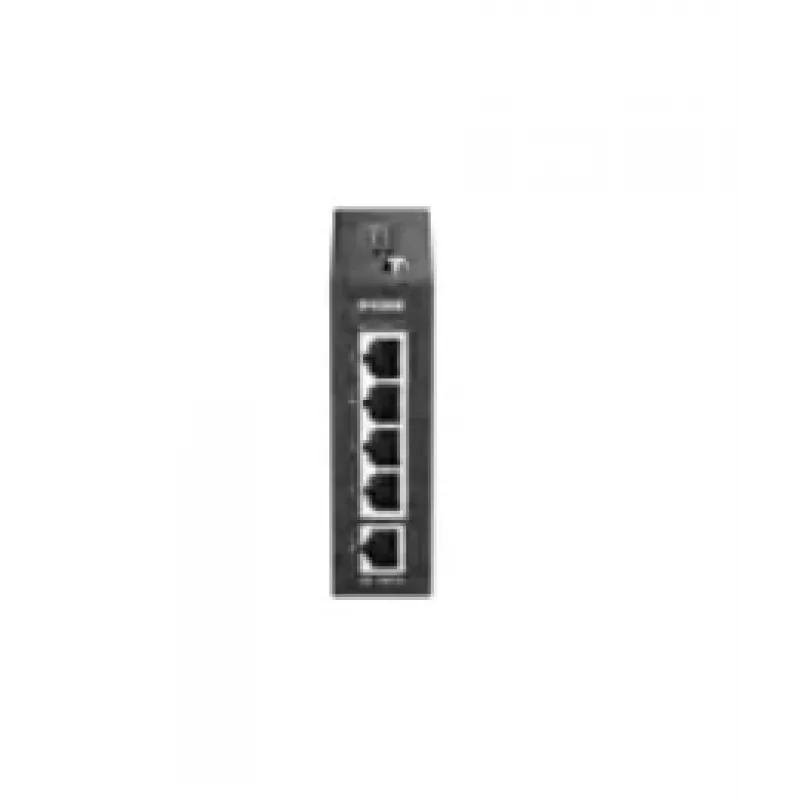

The D-Link DIS-100E-05 is a rugged industrial unmanaged Ethernet switch designed for reliable network connectivity in harsh environments. With 5 Fast Ethernet ports (10/100Base-TX), it provides plug-and-play operation, making it ideal for factory floors, outdoor installations, and transportation systems. Its compact metal housing with IP30 rating and wide operating temperature range (-40°C to 75°C) ensures stable performance in extreme conditions.

Advantages

This switch offers dual redundant DC power input (12-48V) for high availability, fanless design for silent operation, and jumbo frame support up to 9KB for efficient data transfer. Auto MDI/MDI-X and auto-negotiation simplify cabling, while store-and-forward switching ensures error-free packet delivery. With an MTBF exceeding 1,000,000 hours, it delivers long-term reliability.

Suitable for

• Industrial automation and control networks
• Surveillance systems in harsh environments
• Transportation and traffic management
• Outdoor and remote installations requiring DIN-rail or wall mounting

Key specifications

• 5 x 10/100Base-TX Ethernet ports
• Switching capacity: 1 Gbps
• MAC address table: 2K entries
• Jumbo frame support: 9 KB
• Power input: 12-48V DC (dual redundant)
• Max power consumption: 1.5 W
• Operating temperature: -40°C to 75°C
• Enclosure: IP30 metal housing
• Mounting: DIN-rail, wall-mount
• Certifications: CE, FCC, RoHS, UL, NEMA TS2, EN 50121-4

Recommendations

For mission-critical industrial networks, the D-Link DIS-100E-05 provides a cost-effective, reliable solution with minimal maintenance. Its compact size and robust design make it a top choice for system integrators and network engineers.
