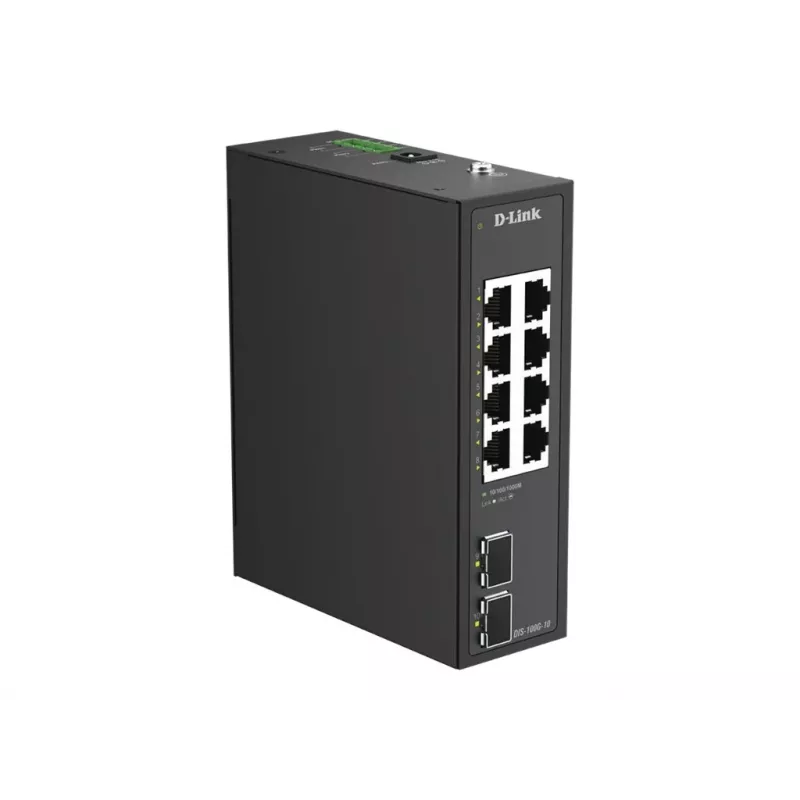

D-Link DIS-100G-10 - 10-port Gigabit průmyslový neřízený switch, 8x RJ45 + 2x SFP

The D-Link DIS-100G-10 is a rugged 10-port Gigabit industrial switch designed for non-stop performance in extreme environments. With eight 10/100/1000BASE-T copper ports and two SFP slots, it provides high-bandwidth connectivity for industrial automation, surveillance, and outdoor networking.

Overview

Built for reliability, the DIS-100G-10 offers plug-and-play operation without complex configuration. Its IP30 metal housing withstands dust, vibration, and temperature fluctuations, while redundant 12-48 V DC power inputs ensure uninterrupted uptime. The fanless design eliminates moving parts, reducing maintenance and enhancing longevity.

What stands out

• 8 Gigabit copper ports and 2 SFP slots for flexible fiber uplinks
• Industrial temperature range from -40°C to 75°C, suitable for harsh environments
• Redundant power input with 12-48 V DC for high availability
• 20 Gbps switching capacity and 8K MAC address table ensure smooth data flow
• ESD and surge protection for network resilience

Technical details

• Ports: 8 x 10/100/1000BASE-T RJ45, 2 x 100/1000BASE-X SFP
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• Jumbo frame: 9 KB
• MAC address table: 8K entries
• Power consumption: max 5.2 W
• Operating temperature: -40 to 75°C
• Storage temperature: -40 to 85°C
• Operating humidity: 5% to 95% RH non-condensing
• Enclosure: IP30 metal, fanless
• Mounting: DIN-rail or wall-mount
• Certifications: CE, FCC, RoHS, UL 60950-1, EN 50121-4

Our verdict

The DIS-100G-10 is a dependable, maintenance-free switch that delivers high performance in the toughest conditions. Its combination of Gigabit speed, SFP flexibility, and industrial-grade construction makes it an excellent choice for critical infrastructure.
