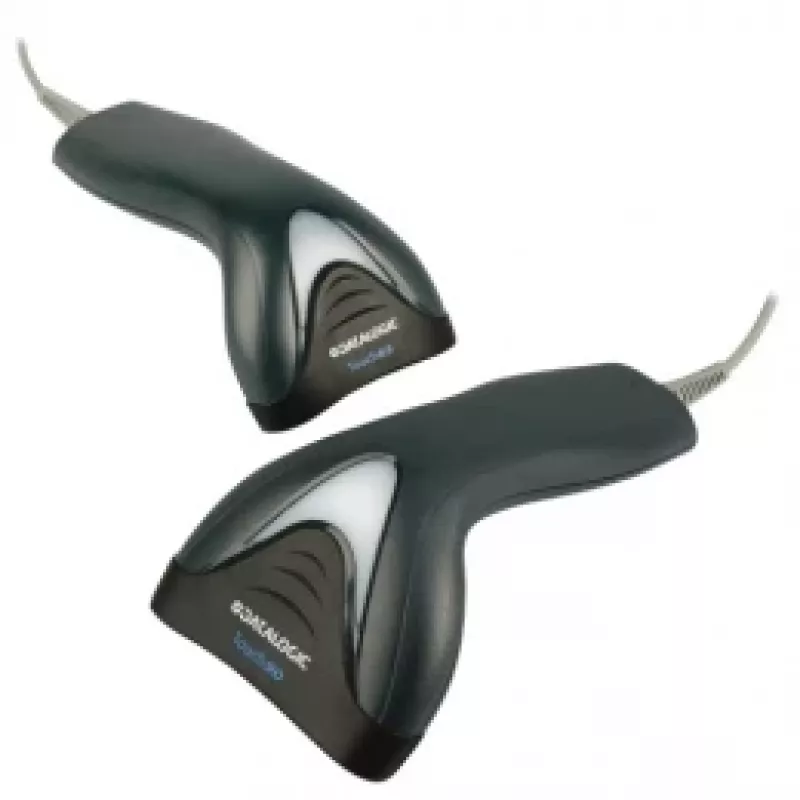

DATALOGIC čítač čiarových kódov Touch 65 Pro TD1100 kontaktný lineárny imager čierny

The Datalogic Touch 65 Pro Black is a compact barcode scanner designed for reliable reading of standard bar codes. This TD1100-series model features a 6.5 cm (2.6 in) reading window (TD1100-65 variant), a working distance of 150 mm, and supports USB, RS-232 and Keyboard Wedge interfaces depending on the exact model. It is lightweight (0.13 kg), energy-efficient and rated IP30 for basic protection against dust and solid objects.

Advantages

The scanner offers a small footprint and an ergonomic, lightweight design that simplifies installation and daily handling. Multiple interface options (USB, RS-232, Keyboard Wedge) ensure compatibility with a wide range of POS and data-capture systems. The device includes the read-through holder for convenient hands-free positioning, and it meets RoHS environmental standards.

Suitable for

• Retail point-of-sale barcode scanning of standard labels
• Light industrial or office environments where compact readers are needed
• Integration with POS terminals, PCs or legacy systems using USB or RS-232/Keyboard Wedge

Key specifications

• Model / MPN: TD1130-BK-65
• Reading window: 6.5 cm (TD1100-65)
• Working distance: 150 mm
• Interfaces: USB, RS-232, Keyboard Wedge (varies by model)
• Light sensitivity: 0–20,000 lx
• Wavelength: 640 nm
• IP rating: IP30
• Weight: 0.13 kg
• Power consumption: 100 mA at 5 V
• Certifications: RoHS

How to use

Connect the scanner to the host device using the appropriate interface cable (USB, RS-232 or Keyboard Wedge) for your model. Place the reader in the read-through holder for hands-free operation or hold the scanner and align the reading window with the barcode. Move the barcode within the specified working distance (around 150 mm) and ensure ambient light is within operating limits. Scanned data will be sent to the connected system via the selected interface.

Recommendations

For best results, use the TD1130-BK-65 in environments with controlled lighting (0–20,000 lx) and position labels so the barcode is perpendicular to the reading window. Use the read-through holder for frequent hands-free scanning and choose the interface that matches your equipment; note that cables and power supplies are sold separately.
