Datalogic PowerScan PM9600-DPX Direct Part Marking 433 MHz displej/4-tlačidlový klávesnica odnímateľná

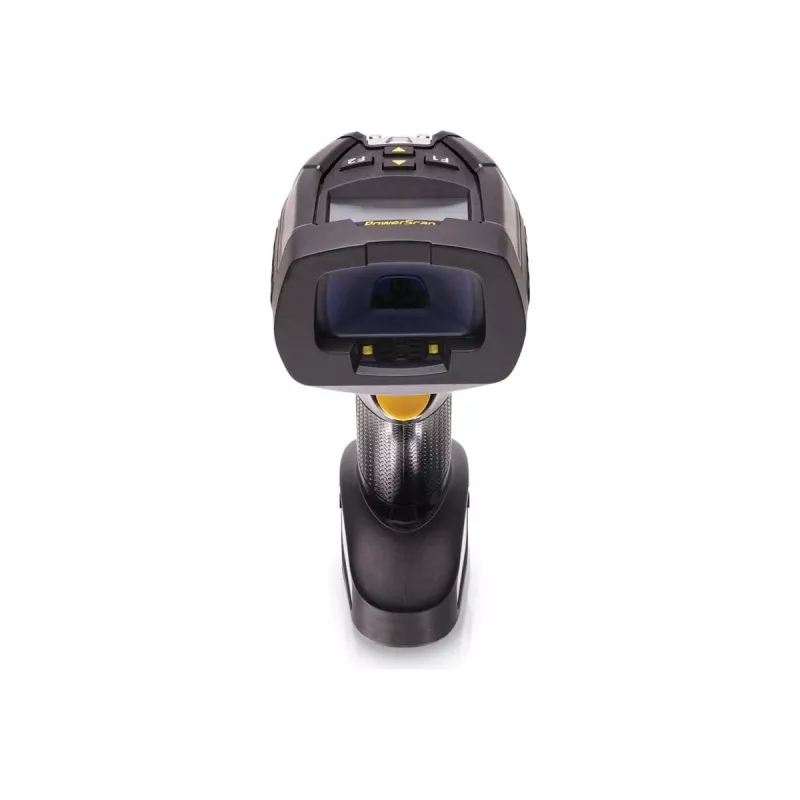

The Datalogic PowerScan PM9600-DPX is an industrial handheld barcode scanner engineered for the most demanding direct part marking (DPM) applications. Its 2D area imager reliably decodes dot peen, laser etched, inkjet, chemical etch, cast, and molded codes, even on reflective or curved surfaces. With a 433 MHz Datalogic STAR Cordless System, it provides up to 50 m (164 ft) of wireless freedom, while the graphic display and 4-key keypad enable real-time feedback and data entry. Built to survive harsh environments, it boasts an IP65 rating and 2.5 m drop resistance, making it ideal for manufacturing, automotive, aerospace, and logistics.

Advantages

This scanner excels in reading challenging DPM codes that standard imagers cannot decode. The 4-dot aimer with center cross ensures precise targeting, while the red LED illumination enhances contrast on difficult surfaces. The removable 3350 mAh lithium-ion battery supports extended shifts, and the multi-interface cradle compatibility (USB, RS-232, Keyboard Wedge, Ethernet) offers flexible integration. User feedback is comprehensive with beeper, Datalogic 'Green Spot', vibration, and good read LED, reducing errors and improving productivity.

Suitable for

• Automotive assembly lines requiring DPM traceability
• Aerospace component tracking with laser etched parts
• Manufacturing environments with cast or molded codes
• Logistics operations needing long-range wireless scanning

Key specifications

• Scanner type: 2D area imager, handheld
• Wireless: Datalogic STAR Cordless System, 433 MHz, up to 50 m range
• User interface: Graphic display (128x64 pixels) and 4-key keypad
• Durability: IP65, 2.5 m drop resistance to concrete
• Battery: Removable lithium-ion, 3350 mAh
• Decoding: 1D, 2D, Postal, Digimarc, DPM
• Operating temperature: -20 to 50 °C
• Host interface via cradle: USB, RS-232, Keyboard Wedge, Ethernet
• Image capture: Yes

Recommendations

For maximum efficiency, pair the PM9600-DPX with a Datalogic BC9600 series base station to leverage its multi-interface connectivity and charging capabilities. Calibrate the aimer for specific DPM surfaces to optimize read rates. In high-vibration environments, utilize the vibration feedback to confirm successful scans without visual confirmation.
