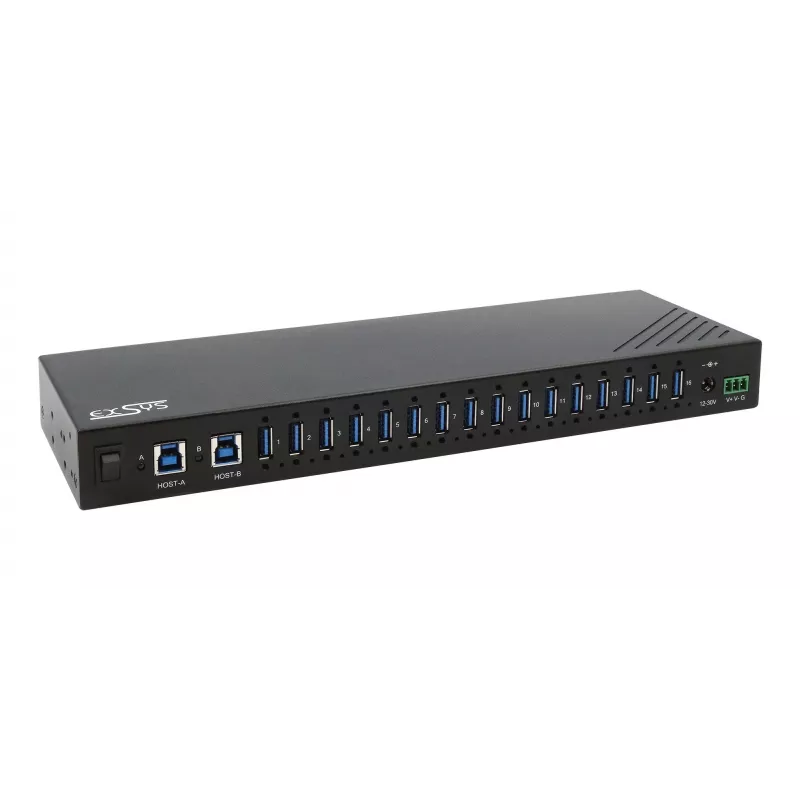

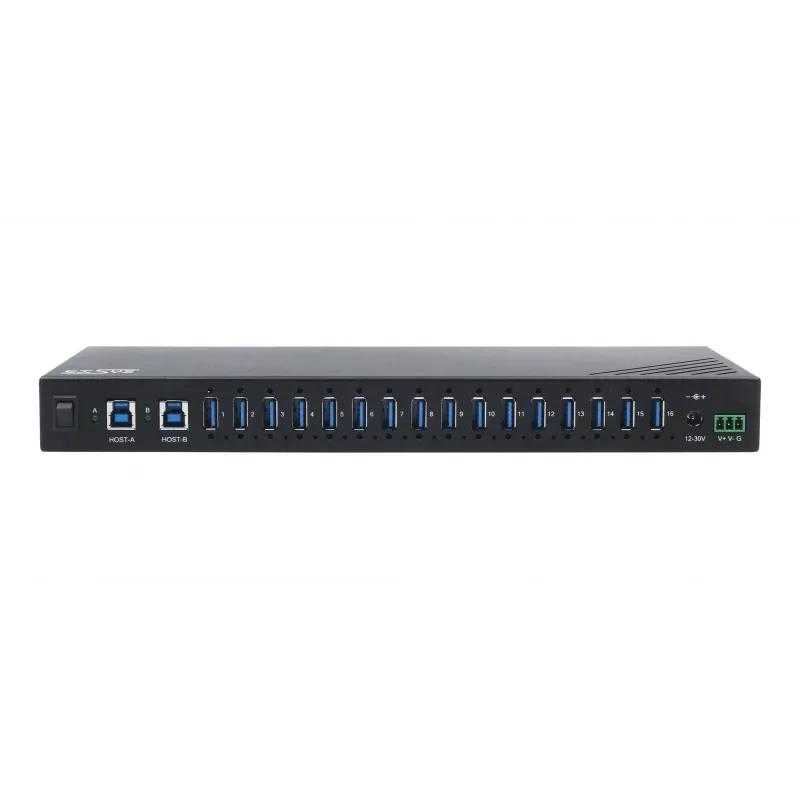

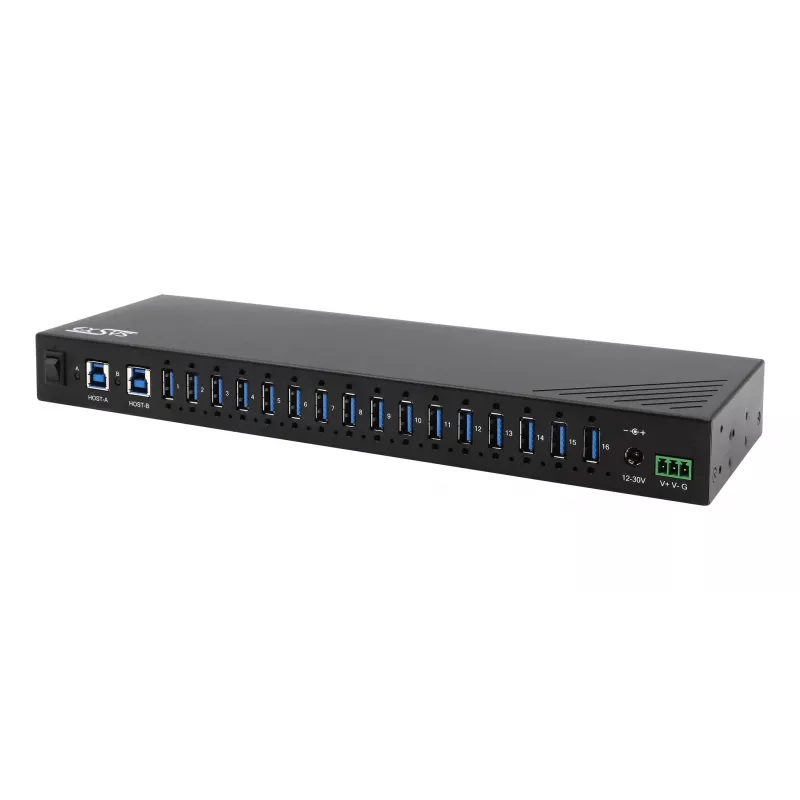

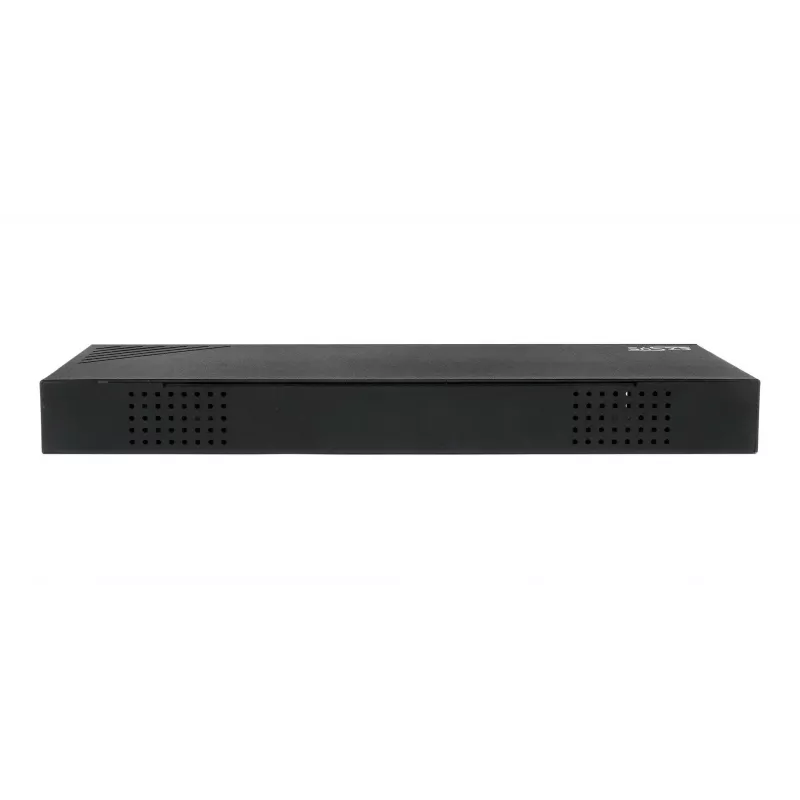

EXSYS EX-11236HMS 16-portový USB 3.2 Gen 1 priemyselný hub s 15KV ESD ochranou, nástenná a DIN lištová montáž

Industrial environments often demand reliable USB connectivity for numerous devices while protecting against electrostatic discharge and offering flexible mounting options. The EXSYS EX-11236HMS addresses this by providing 16 downstream USB 3.2 Gen 1 ports with robust 15KV ESD protection, all housed in a sturdy metal enclosure designed for wall or DIN-rail installation.

Who is it for

This hub is ideal for system integrators, industrial automation engineers, and IT professionals who need to connect multiple USB peripherals in factories, control cabinets, or other harsh environments where ESD events are common and space is limited.

Main features

• 16 USB Type-A downstream ports supporting USB 3.2 Gen 1 (5 Gbps)
• 15KV air discharge and 8KV contact discharge ESD protection on all ports
• Robust metal housing with wall-mount and DIN-rail mounting options
• Wide DC input range (7-24V) via terminal block or DC jack
• Multi-TT chipset architecture for full bandwidth on each port
• Per-port over-current, over-voltage, and short-circuit protection
• LED indicators for power and per-port status
• Plug-and-play, hot-swappable, no drivers required

Specifications

• Upstream: 1 x USB Type-B
• Downstream: 16 x USB Type-A
• Data transfer rate: up to 5 Gbps (USB 3.2 Gen 1)
• Power output per port: 5V, 900mA
• Operating temperature: -40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)
• OS compatibility: Windows, macOS, Linux
• Certifications: CE, FCC, RoHS

Tips

When mounting on a DIN rail, ensure adequate airflow around the metal enclosure to maintain optimal operating temperatures. Use a regulated DC power supply within the 7-24V range to avoid voltage fluctuations that could affect connected devices.
