DC/DC menič ATTE ASUC-100-480-OF 100W vstup 48V výstup 12V DIN lišta

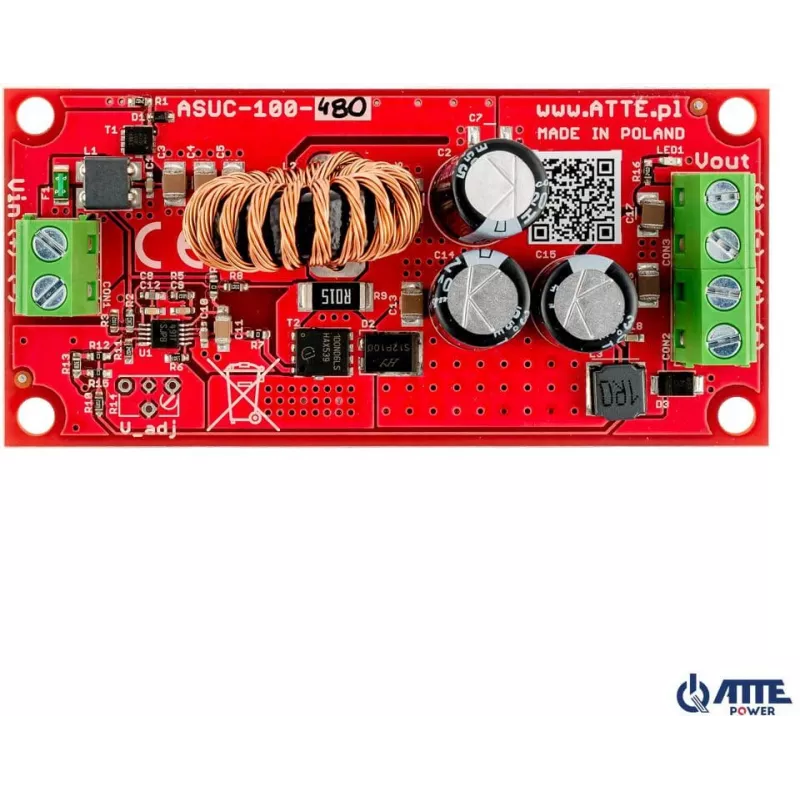

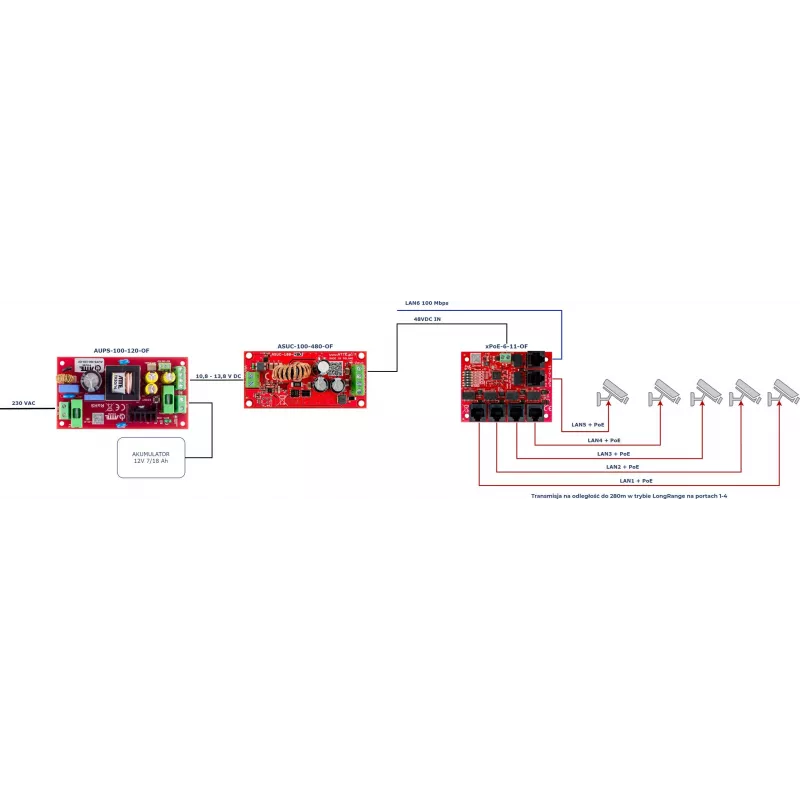

The ATTE ASUC-100-480-OF is a high-efficiency, non-isolated DC/DC step-up converter. It provides a fixed 48 VDC output from a wide input voltage range, making it suitable for generating PoE 48 VDC supply from 12 VDC or 24 VDC sources.

Key features

• Wide input voltage range
• Fixed output voltage
• Low heat generation due to high efficiency
• High output power in a compact module
• Reverse polarity protection
• LED1 indicates output voltage presence

Specifications

• Brand: ATTE
• MPN: ASUC-100-480-OF
• Output voltage: 48 VDC ±2%
• Output power: 120 W @ 24 V, 80 W @ 12 V
• Efficiency: 93% @ Vin=12 V, Pout=80 W
• Input voltage: 10...30 VDC
• No-load current: 27 mA @ 12 V
• Operating temperature: -20...+40 °C
• Dimensions: 40 x 83 x 27 mm
• Weight: 0.036 kg
• Mounting: snap-on spacers, mounting holes at 10.8 mm pitch
• Housing: none - module for installation
