DEHN 274116 držiak kruhovej tyče z nehrdzavejúcej ocele pre 16 mm kruhový vodič

Stainless steel rod holder for secure fastening of 16 mm round conductors in lightning protection and earthing systems.

Overview

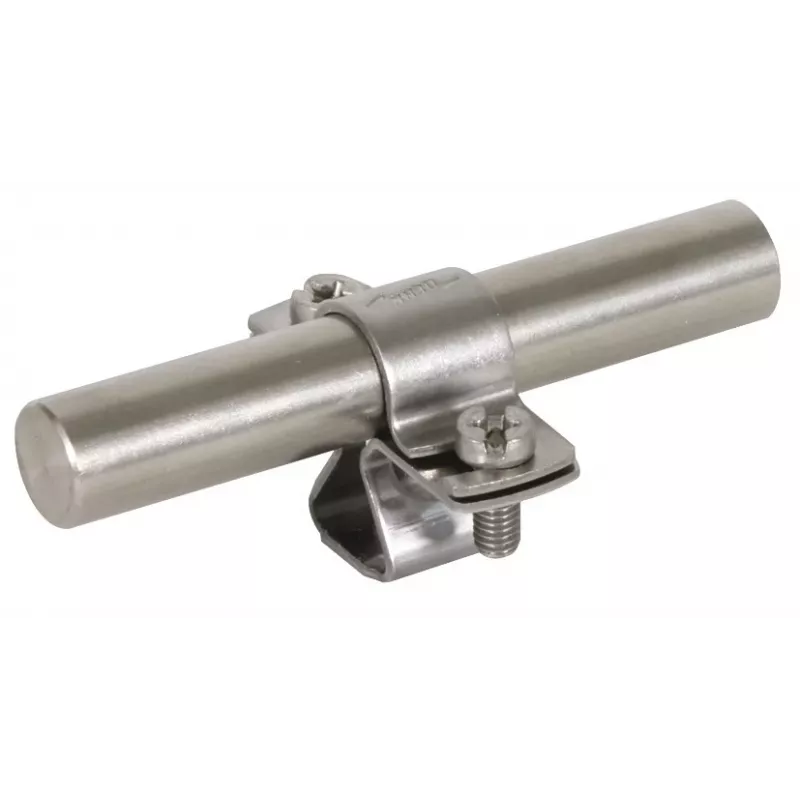

The DEHN 274116 is a robust rod holder made of stainless steel (NIRO), designed to clamp a single round conductor with a diameter of 16 mm. It is suitable for both indoor and outdoor installations and provides excellent corrosion resistance and durability.

What stands out

• High-grade stainless steel construction ensures long-term reliability even in harsh environments
• Compatible with 16 mm round conductors commonly used in lightning protection
• Compact design with two fastening holes for secure screw mounting

Technical details

• Material: Stainless steel (NIRO)
• Conductor type: Round conductor
• Conductor diameter: 16 mm
• Mounting method: Screw mounting
• Number of conductors held: 1
• Base plate dimensions: 40 x 40 mm
• Overall height: Approx. 30 mm
• Fastening holes: 2
• Operating temperature range: -40 °C to +100 °C
• Corrosion resistance: Very high
• UV resistance: Very high
• Application area: Lightning protection systems, earthing systems, industrial installations

Our verdict

A dependable stainless steel rod holder that meets the demanding requirements of lightning protection installations, offering excellent corrosion resistance and easy mounting.
