Delock 2,5 palca SATA 22 pin na 2 x mSATA RAID konvertorové puzdro 62594

Turn one SATA port into a dual mSATA RAID array with this 2.5" converter enclosure from Delock. Supporting RAID 0, RAID 1, JBOD, and SPAN, it delivers up to 6 Gb/s throughput and fits a standard drive bay for seamless integration.

Overview

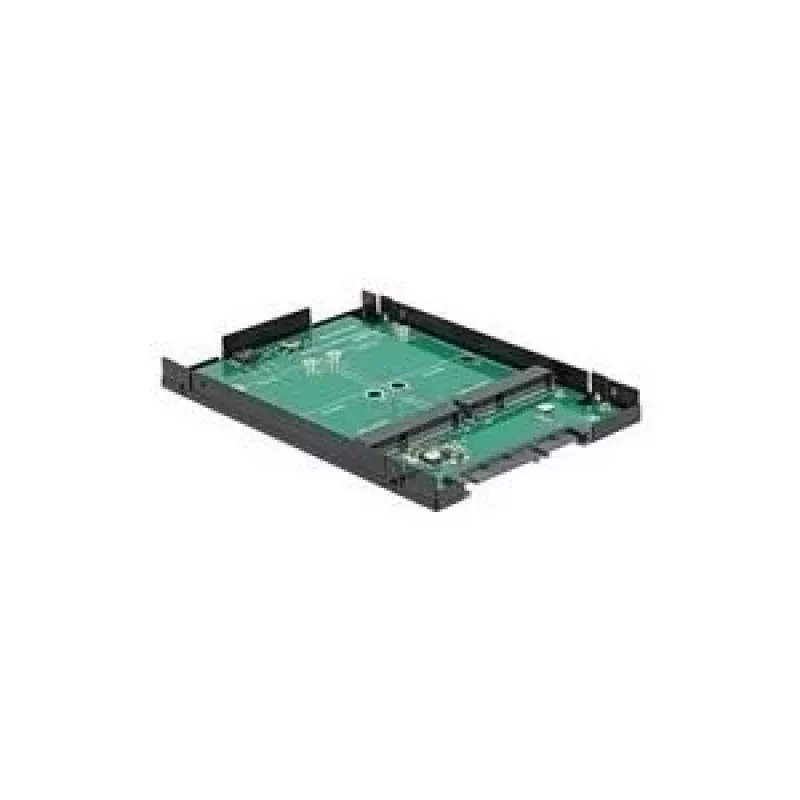

The Delock 62594 is a compact 2.5" metal enclosure that converts a single SATA 22-pin connection into two mSATA slots. It is built around the ASMedia ASM1092R controller, which provides hardware RAID functionality without the need for drivers or additional software. The device is OS independent and bootable, making it suitable for a wide range of systems.

What stands out

• Dual mSATA slots with hardware RAID 0, 1, JBOD, and SPAN modes
• Supports full-size and half-size mSATA SSDs up to 3.8 mm height
• Hot swap capability for easy drive replacement
• LED indicators for power and access status
• Fits standard 2.5" drive bay, powered directly from SATA

Technical details

• Host interface: 1 x SATA 22-pin male (SATA I/II/III compatible)
• Device interface: 2 x mSATA slots
• Data transfer rate: up to 6 Gb/s (SATA III)
• Controller: ASMedia ASM1092R
• Supported mSATA sizes: full-size (50.95 x 30 mm) and half-size (26.8 x 30 mm)
• Maximum component height: 3.8 mm
• Power source: SATA 22-pin
• Housing material: metal
• LED indicators: power, access
• Hot swap: yes
• Bootable: yes
• OS compatibility: OS independent
• Port multiplier support: yes
• Installation: fits standard 2.5" drive bay

Our verdict

A versatile and reliable solution for expanding storage with RAID capabilities in a compact form factor, ideal for industrial and embedded systems.
