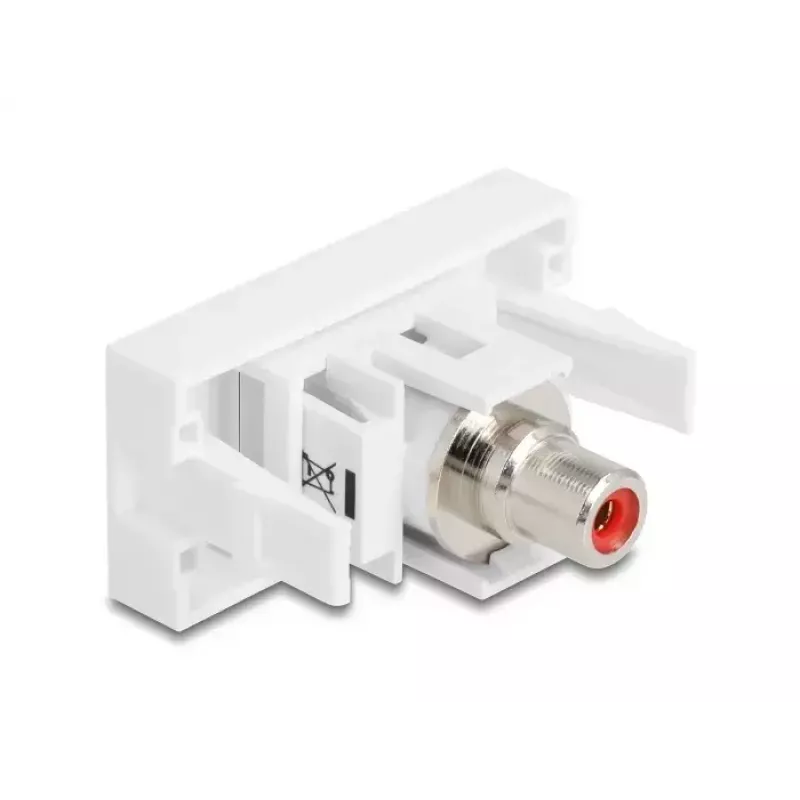

DeLOCK 90857 Keystone modul Cinch červený biely 22,5 mm 45 mm 33 mm

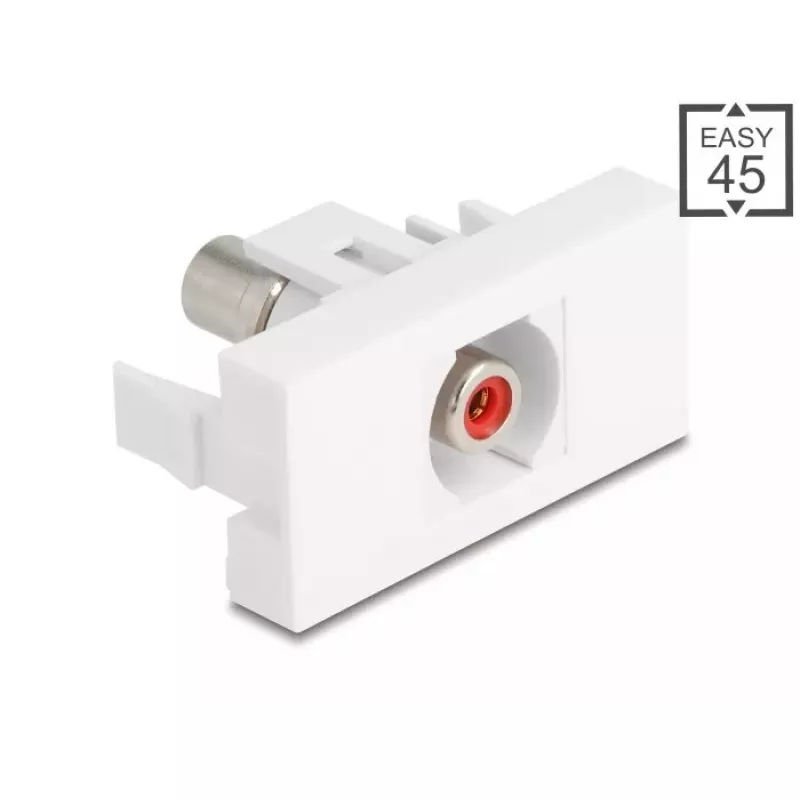

The DeLOCK 90857 Keystone Module provides two RCA audio connectors (red and white) in a standard Easy 45-compatible housing. It is intended for integration into the Delock Easy 45 modular system to add an audio cable port for devices such as TVs, amplifiers, monitors and laptops. The module uses a snap-in mechanism for secure mounting and easy removal when needed, and its compact dimensions (22.5 mm width, 45 mm depth, 33 mm height) suit various module holders and cable ducts.

Advantages

This module offers standardized RCA connectors in a color-coded red and white layout for left/right audio channels and fits the Easy 45 system for flexible installation. The snap-in design ensures firm fixation while allowing tool-free removal. Its compact size and compatibility with common module holders make it suitable for neat integration into AV and network installations.

Suitable for

Key specifications

How to use

Insert the module into a compatible Easy 45 module holder or cable duct until the snap-in mechanism engages. Connect RCA cables to the red and white sockets for right and left audio channels respectively. To remove the module, release the snap-in latch and pull the module out of the holder. Ensure cables are routed and secured to avoid strain on the connectors.

Recommendations

For best performance, use quality RCA cables and avoid excessive bending or tension at the connector. Install the module in an Easy 45-compliant panel or duct to maintain proper alignment and mechanical support.
