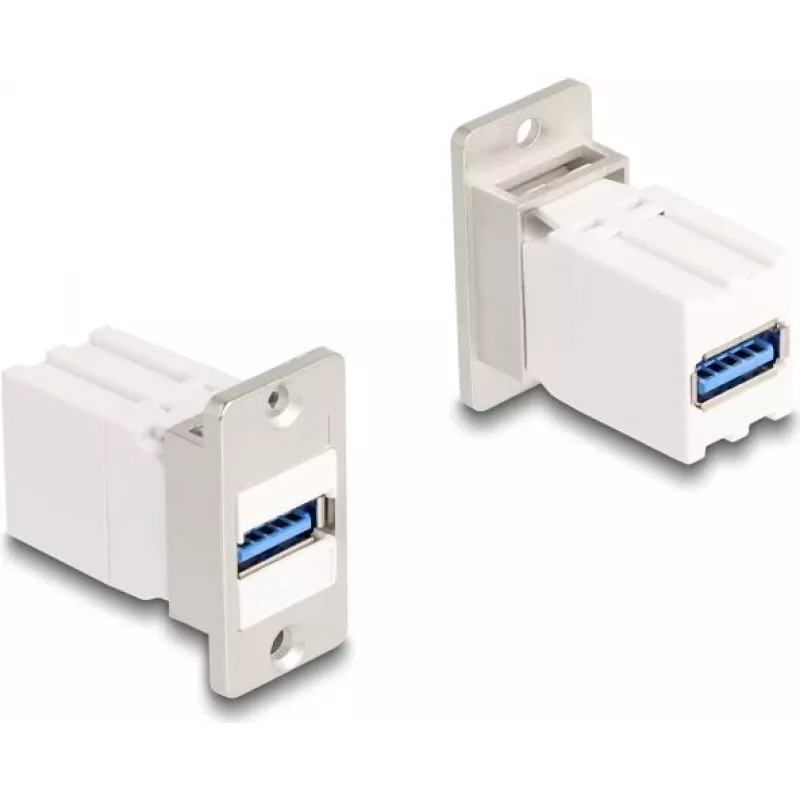

DeLOCK panel mount keystone modul spojka USB 5 Gbps Type-A samica na Type-A samicu

The DeLOCK Panel Mount Keystone Module coupler provides a compact, flat USB Type-A female to Type-A female connection intended for panel or cabinet installation. It supports USB data transfer speeds up to 5 Gbps and is designed for easy integration into housings, switch cabinets or keystone panels. The module has a silver and white finish and measured dimensions of 19.2 mm (W) × 35.2 mm (D) × 35.5 mm (H).

Advantages

The module offers a reliable female-to-female USB Type-A connection with support for up to 5 Gbps data transfer. Its flat keystone form factor enables straightforward panel mounting and tidy cable routing. The compact dimensions and neutral silver/white color make it compatible with standard installation environments.

Suitable for

• Extending USB Type-A connections through panels or cabinets
• Installing USB ports in switch cabinets or wall housings
• Replacing or adding keystone USB couplers in keystone panels
• Linking two USB A cables where a female-to-female join is required

Key specifications

• Connector: USB Type-A female to USB Type-A female
• Data rate: up to 5 Gbps
• Form factor: flat keystone module
• Color: silver, white
• Quantity: 1 piece
• Dimensions (W×D×H): 19.2 × 35.2 × 35.5 mm
• Brand: DELOCK, MPN: 67165, EAN: 4043619671656

How to use

Insert the keystone module into a compatible keystone opening or panel cut-out until it locks in place. Connect USB Type-A male cables to each side of the module to extend or route a USB connection through the panel. Ensure cables are fully seated to maintain reliable data transfer. For cabinet installations, mount the module in the intended panel or mounting holder following the enclosure manufacturer's instructions.

Recommendations

Use USB cables and devices rated for USB 3.0/3.1 speeds to achieve the specified 5 Gbps data transfer. Avoid excessive bending or strain on connected cables near the module and ensure the installation environment protects the connector from mechanical damage and moisture.
