DELOCK 91111 vstavaná cinch zásuvka – žltá/čierna, panelový audio/video konektor

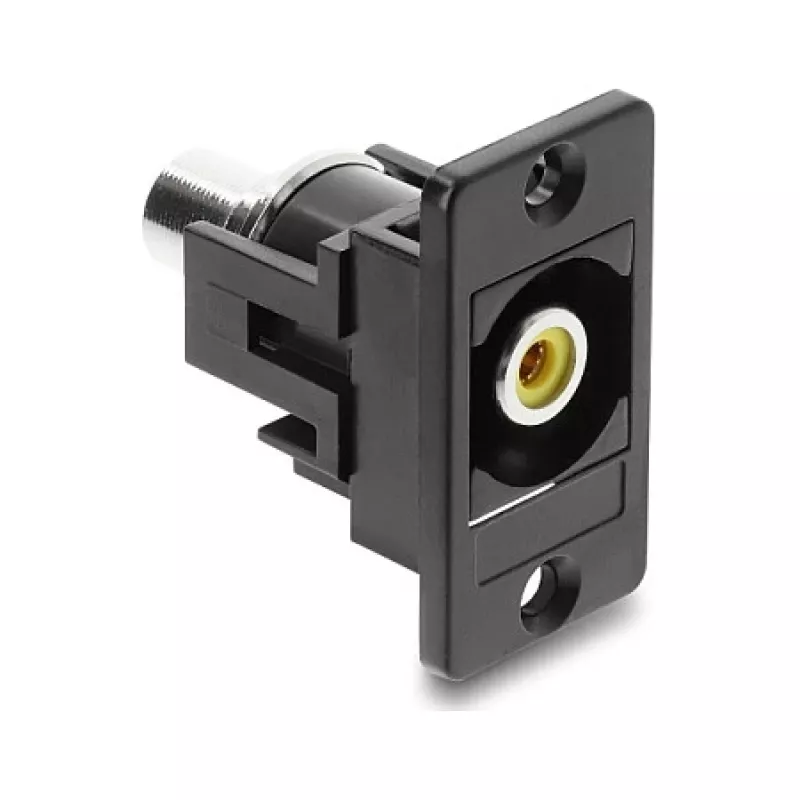

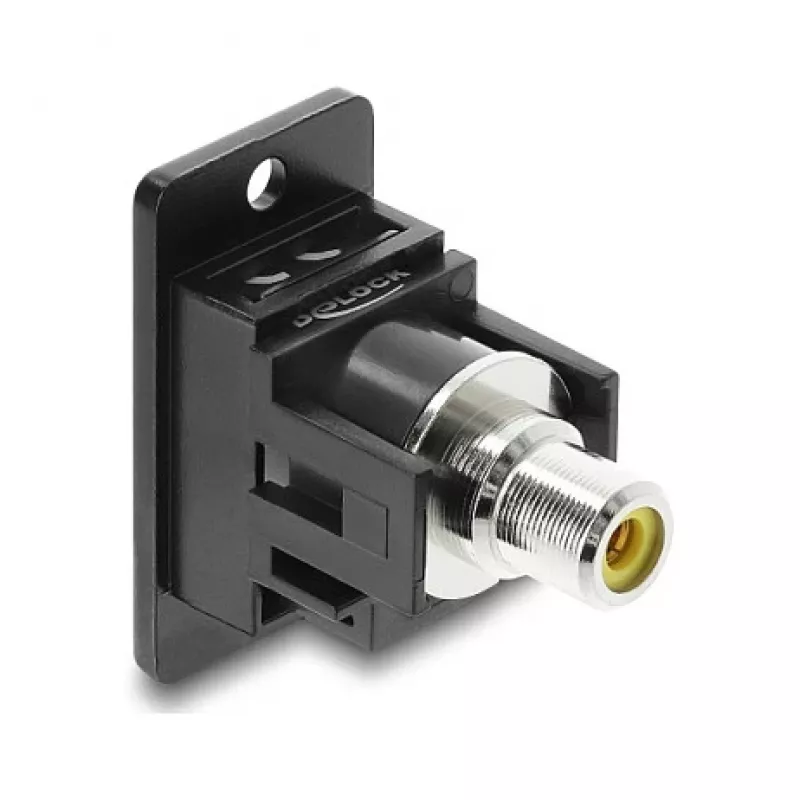

DELOCK 91111 is a panel-mount Cinch (RCA) connector in a yellow and black finish designed for audio/video installations. It provides a fixed socket that accepts standard RCA plugs, allowing signal cables to be connected through equipment panels, enclosures or custom racks. The connector is intended for use where a durable, easy-to-access RCA interface is required for AV devices, repairs or bespoke panel projects.

Advantages

The panel-mount Cinch connector delivers a reliable mechanical interface for RCA signal cables and a consistent contact point for audio or composite video connections. Its compact panel-mount form factor simplifies installation in thin panels or enclosures and the color coding (yellow) supports quick visual identification for video signal lines. The design is suitable for replacement of worn sockets or integration into custom AV assemblies.

Suitable for

Key specifications

How to use

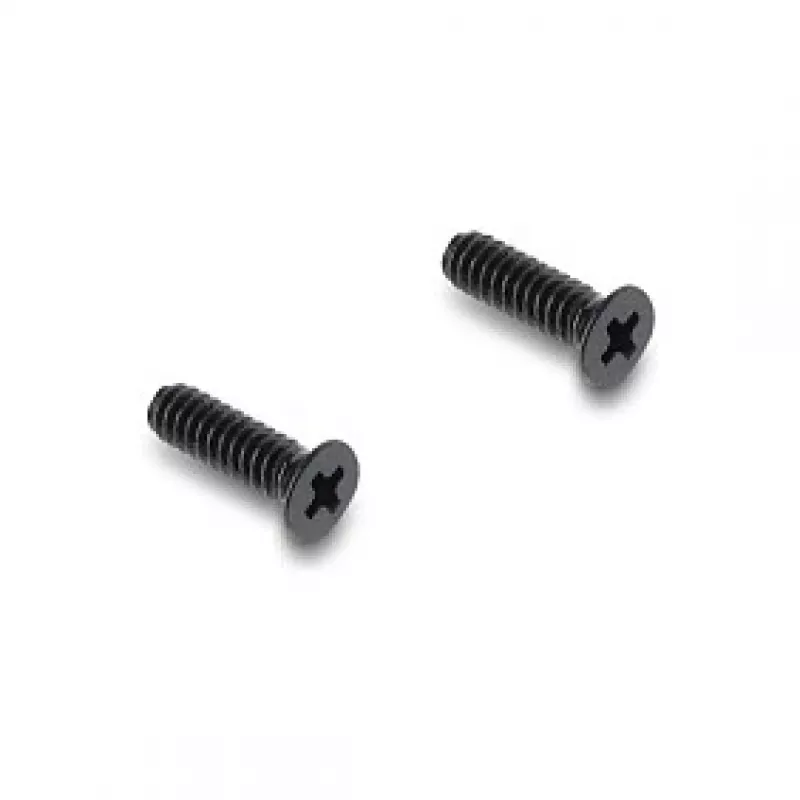

Drill an appropriately sized hole in the equipment panel or enclosure, insert the connector from the outside and secure it using the supplied or compatible fastening nut. After mounting, connect the RCA cable by inserting the male plug into the connector until it seats securely. For repairs, desolder or disconnect the existing socket wiring and transfer the signal and ground connections to the corresponding contacts on the panel-mount connector following the device wiring scheme.

Recommendations

Ensure the connector is mounted on a flat, stable panel and tightened to prevent movement; avoid overtightening which may damage the panel or connector. Use the yellow-coded connector for composite video lines to maintain consistent cable routing. When performing repairs or installations, disconnect power and handle signal wiring with care to prevent short circuits or signal degradation.
