DeLOCK adaptér USB 2.0 Type-A konektor samica na 4-polový 90° zahnutý

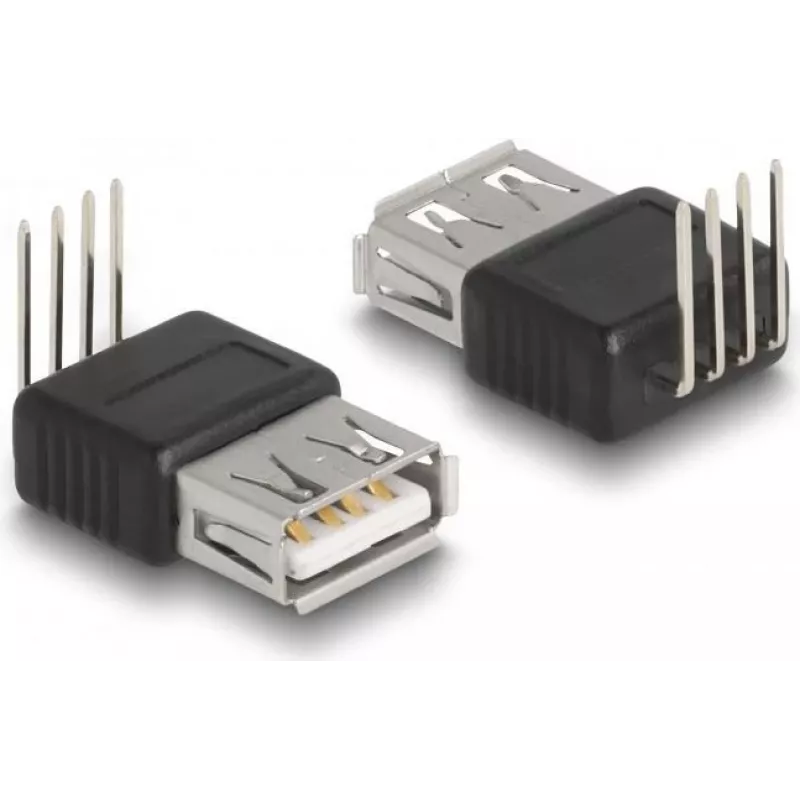

The DeLOCK Adapter USB 2.0 Type-A female to 4 pin 90° angled is a through-hole mount connector designed for connecting USB 2.0 Type-A devices where space is limited. It provides a USB Type-A female interface and supports USB 2.0 signals at 5 V. The 90° angled form factor helps to improve cable routing and reduces protrusion from the mounting surface.

Advantages

The angled through-hole design saves space on the PCB and enables neater cable management in confined enclosures. Compatibility with USB 2.0 ensures standard data transfer and power at 5 V. The connector is supplied in a black and silver finish suitable for many device housings.

Suitable for

• Adding a USB Type-A female port to PCBs and enclosures
• Devices or projects with limited rear clearance
• Embedded systems, DIY electronics and industrial control panels

Key specifications

• USB version: 2.0
• Connector: USB Type-A female to 4 pin
• Mounting type: Through-hole
• Orientation: 90° angled
• Supply voltage: 5 V
• Colour: Black, Silver
• Brand: DELOCK
• MPN: 66637
• EAN: 4043619666379

How to use

Solder the through-hole pins into the PCB according to your board layout, ensuring correct orientation for the 90° angle. After soldering, check electrical continuity of the four signal/power pins and secure the connector mechanically if required by the enclosure. Connect a standard USB 2.0 Type-A plug to the female port for data and 5 V power transfer.

Recommendations

Install the connector on the PCB before fitting the enclosure to confirm fit and clearance. Use standard ESD precautions when handling and soldering. Do not exceed the USB 2.0 power specifications for attached devices.
