DeLOCK D-Sub 9-polový konektor samica na RJ12 konektor samica montážna sada žltá

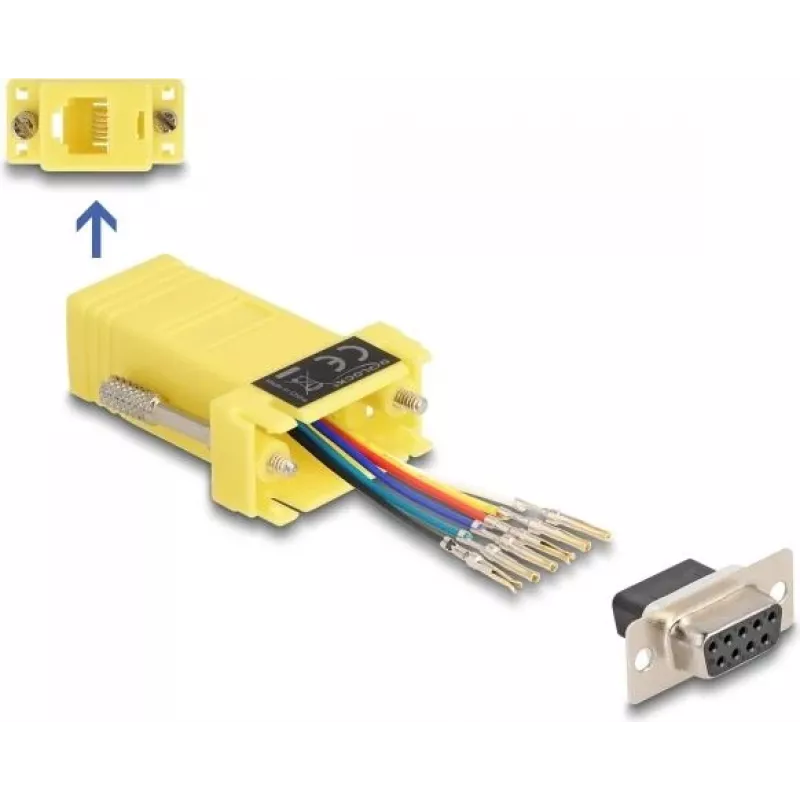

The DeLOCK D-Sub 9 pin female to RJ12 female Assembly Kit (yellow) is an adapter set that allows a serial D-Sub 9 interface to be extended using an ISDN, telephone or RJ12 cable. The kit provides a D-Sub 9 female housing and an RJ12 female socket; contacts can be placed into the D-Sub 9 housing according to the required pin assignment. The yellow colour improves visibility and identification in installations.

Advantages

This assembly kit enables flexible and individual assignment of D-Sub 9 contacts and secure mechanical connection. The sockets snap into the D-Sub housing with a slight click to ensure reliable contact. The RJ12 female connector makes it compatible with standard ISDN and telephone cabling.

Suitable for

• Extending a serial D-Sub 9 connection over RJ12/telephone/ISDN cable
• Custom pin assignments for serial communication or control signals
• Visible identification in wiring thanks to the yellow housing

Key specifications

• Connector 1: D-Sub 9 (female)
• Connector 2: RJ12 (female)
• Product colour: Yellow
• Manufacturer: DELOCK
• MPN: 67081
• EAN: 4043619670819

How to use

Insert the contact pins into the D-Sub 9 housing according to the required pinout. Fit the RJ12 female socket into the matching position and press the sockets into the D-Sub housing until they click into place. Connect the RJ12 cable to the RJ12 socket and secure the D-Sub housing as needed for your installation.

Recommendations

Verify the pin assignment and wiring standard before making connections to avoid signal conflicts. Use appropriate strain relief for the RJ12 cable and do not force contacts into the housing if resistance is excessive.
