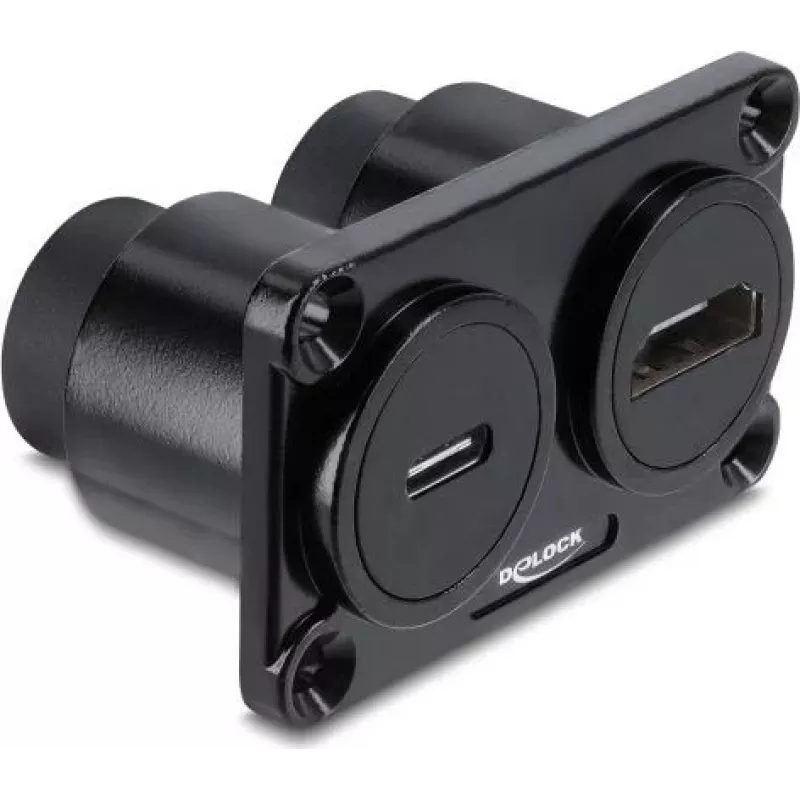

Delock dvojitý panelový adaptér USB-C 10 Gbps PD 100 W + HDMI 4K konektor samica na samec

Professional panel-mount adapter combining a USB Type-C™ port with 10 Gbps data transfer and 100 W Power Delivery, plus an HDMI port supporting 4K UHD at 60 Hz, in a robust metal housing. Extend high-speed USB and HDMI connections from inside a device or enclosure to a clean, flush-mounted front panel.

Advantages

USB 3.2 Gen 2 technology delivers data rates up to 10 Gbps—twice as fast as USB 3.0—ideal for external SSDs, high-resolution webcams, and other bandwidth-hungry peripherals. The USB-C port also provides up to 100 W of power (20 V / 5 A), so you can charge laptops or power devices directly through the panel. The HDMI 2.0 port supports crystal-clear 4K UHD video at 60 Hz, perfect for digital signage, conference rooms, or media centers. The metal housing ensures durability and EMI shielding, while the compact 22 x 19 mm mounting hole footprint fits standard panel cutouts. The 20 cm internal cables give you flexibility during installation.

Suitable for

• Integrating USB-C and HDMI connectivity into custom enclosures, kiosks, or control panels
• Upgrading existing devices with modern high-speed ports without replacing the whole unit
• Professional AV installations requiring reliable 4K video and high-power USB charging
• Industrial or commercial environments where panel-mounted connectors are preferred for accessibility and protection

Key specifications

• Front connectors: 1 x USB Type-C™ female, 1 x HDMI female
• Rear connectors: 1 x USB Type-C™ male, 1 x HDMI male
• USB standard: USB 3.2 Gen 2, data transfer up to 10 Gbps
• USB Power Delivery: up to 100 W (20 V / 5 A)
• HDMI standard: HDMI 2.0, resolution up to 3840 x 2160 @ 60 Hz (4K UHD)
• Mounting type: panel mount, hole dimensions 22 x 19 mm
• Internal cable length: approx. 20 cm
• Housing material: metal, colour black
• Operating temperature: -20 °C to 85 °C

Recommendations

For professional installations where durability and performance matter, this Delock panel mount adapter delivers reliable high-speed connectivity in a compact, robust form factor.
