Delock optický patch kábel LC na SC multimode OM4 5 m 84683

High-speed data centers and enterprise networks demand reliable, low-loss fiber connections. The Delock LC to SC Multimode OM4 patch cable delivers exactly that, ensuring stable 10/40/100 Gigabit Ethernet links over 5 meters.

Who is it for

Network engineers, IT administrators, and data center technicians who need a dependable duplex multimode fiber jumper for high-bandwidth backbone connections, server interlinks, or storage area networks.

Main features

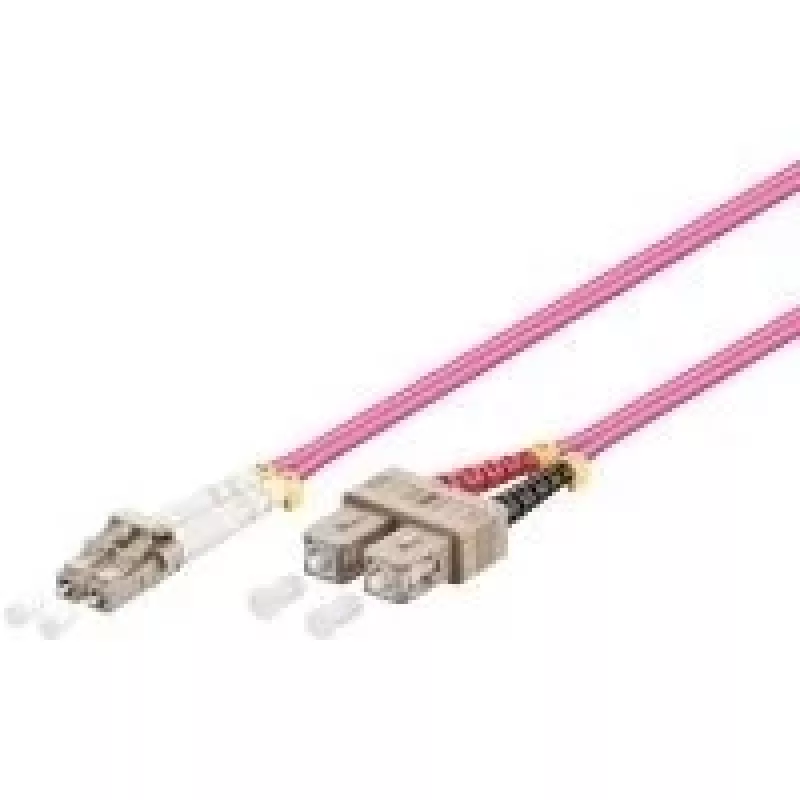

• LC/PC to SC/PC duplex multimode fiber patch cable
• OM4 laser-optimized fiber supports 10/40/100 Gigabit Ethernet
• Low insertion loss ≤ 0.3 dB and return loss ≥ 30 dB
• LSZH jacket in heather violet, 3.0 mm diameter
• Polarity A-B (crossed) for standard transceiver pairing

Specifications

• Cable type: Fiber optic patch cable
• Connector 1: LC/PC male
• Connector 2: SC/PC male
• Fiber mode: Multimode
• Fiber class: OM4
• Cable length: 5 m
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Cable construction: Duplex
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable diameter: 3.0 mm
• Jacket colour: Heather Violet
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Polarity: A-B (Crossed)
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -20 °C to 70 °C
• Compliance: RoHS, REACH
• Recommended application: 10/40/100 Gigabit Ethernet

Tips

Pair with OM4-compatible transceivers to maximize performance. The LSZH jacket makes this cable suitable for plenum and riser spaces where low smoke and toxicity are critical.
