Keystone modul DeLOCK 86386

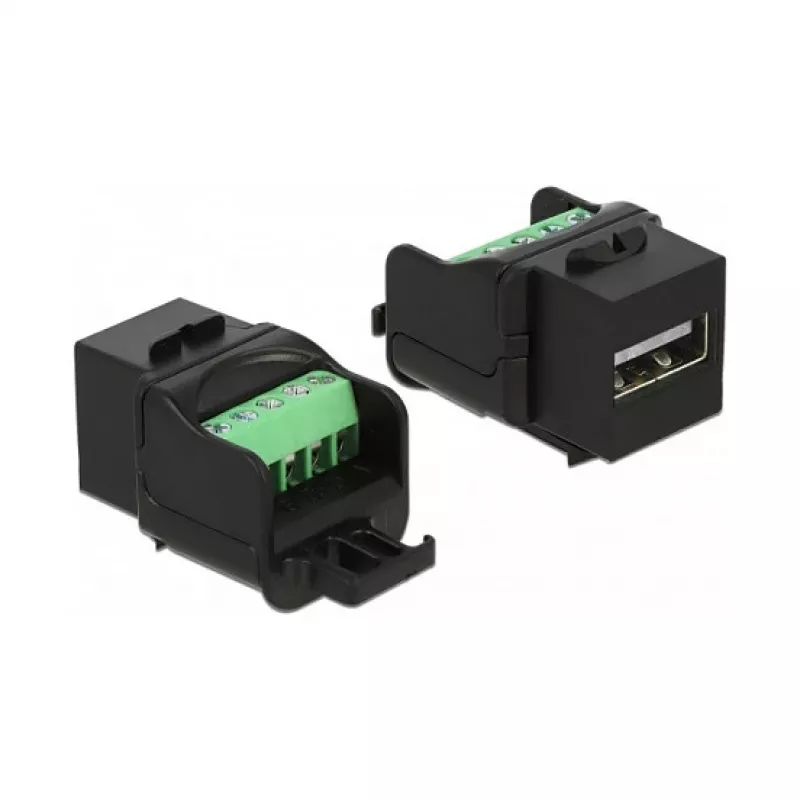

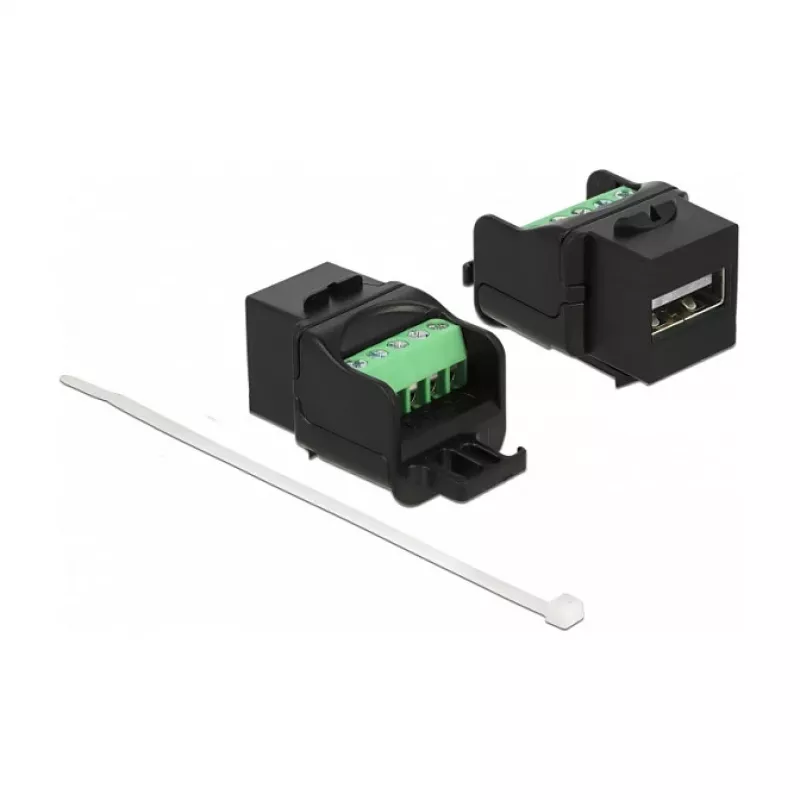

The DeLOCK 86386 keystone module provides a compact way to extend a USB connection via a terminal block. It features a USB A connector on one side and a terminal connection on the other, housed in a flat black module with standardised dimensions for compatibility with keystone patch panels, face plates and surface-mount boxes. The module is sold individually and measures approximately 20 mm (W) × 36 mm (D) × 22 mm (H).

Advantages

The module’s flat construction and standardised keystone dimensions allow easy snap-in mounting into compatible panels and wall plates. A USB A connector and a terminal block provide flexibility for connecting to pre-installed network or custom cables. Its compact size and black finish make it unobtrusive in patch panels and installations.

Suitable for

• Extending USB connections where a terminal block is required
• Installation into keystone patch panels and face plates
• Connecting USB devices to pre-installed or custom-wired cables

Key specifications

• Brand: DELOCK
• Model: 86386
• Connector 1: USB A
• Connector 2: Terminal block
• Colour: Black
• Dimensions: 20 × 36 × 22 mm (W × D × H)
• Packaging: single unit
• Category: USB data cables / keystone module

How to use

Insert the module by snapping it into a compatible keystone opening in a patch panel, face plate or surface-mount box until it locks in place. Connect a USB A cable or device to the USB A port. Terminate the other side using the terminal block by securing the pre-installed or custom cable conductors under the terminal contacts according to the cable manufacturer’s wiring scheme and tightening the screws as required.

Recommendations

Use appropriate cable stripping and termination tools and follow local installation standards. Verify wiring polarity and secure connections before applying power or data signals.
