DeLOCK RJ50 konektor samica na svorkovnicu s tlačidlom pre DIN lištu zahnutý

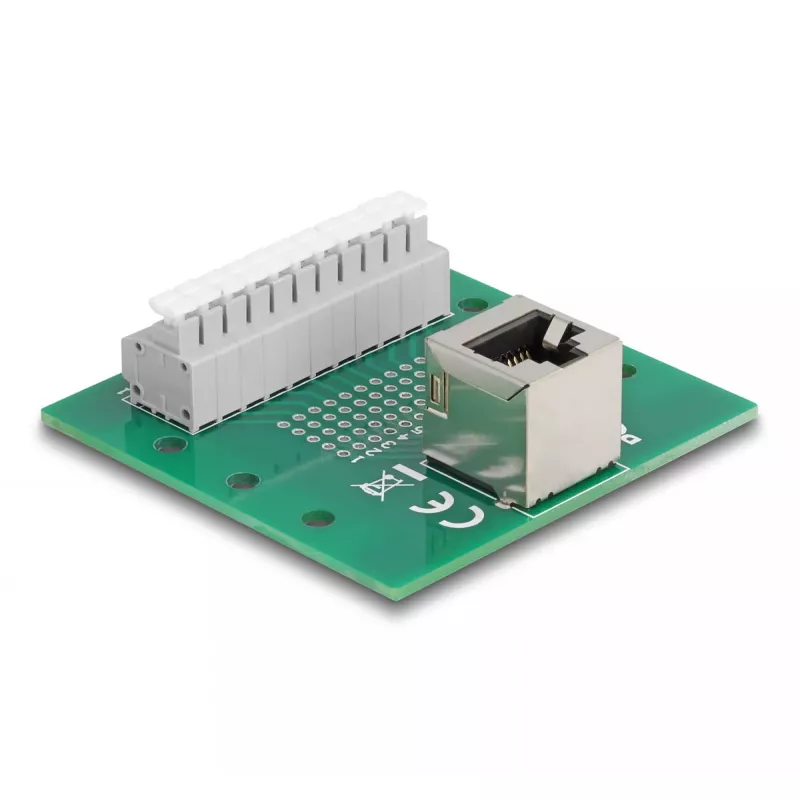

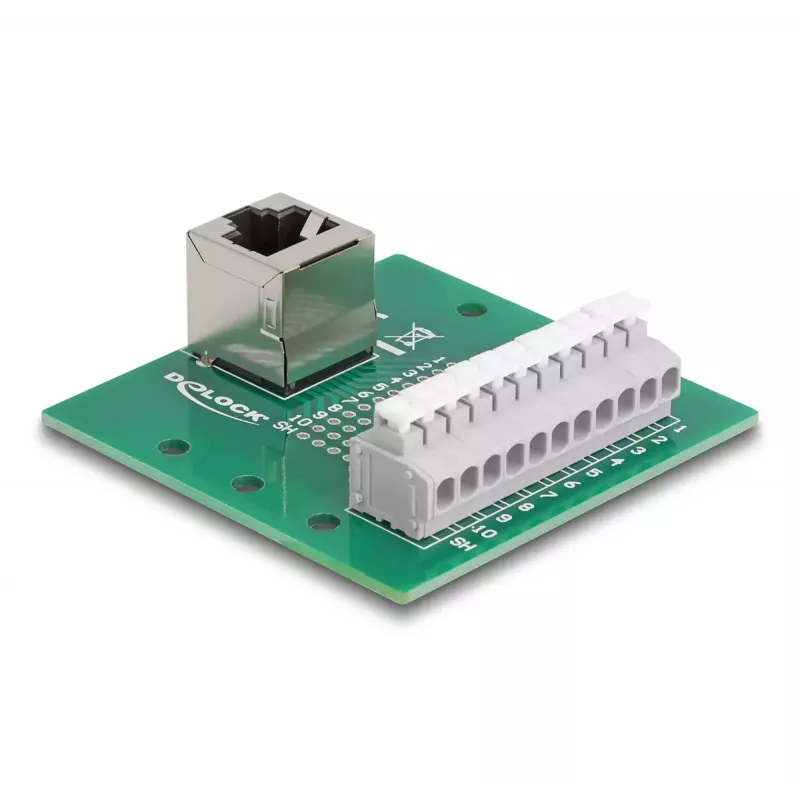

This adapter by DeLOCK provides a simple connection between RJ50 cables and a terminal block with push-button, designed for DIN rail mounting. The angled housing measures 53 mm × 60 mm × 18 mm and is intended for use with control and measuring devices where stranded conductors with stripped ends must be connected tool-free.

Advantages

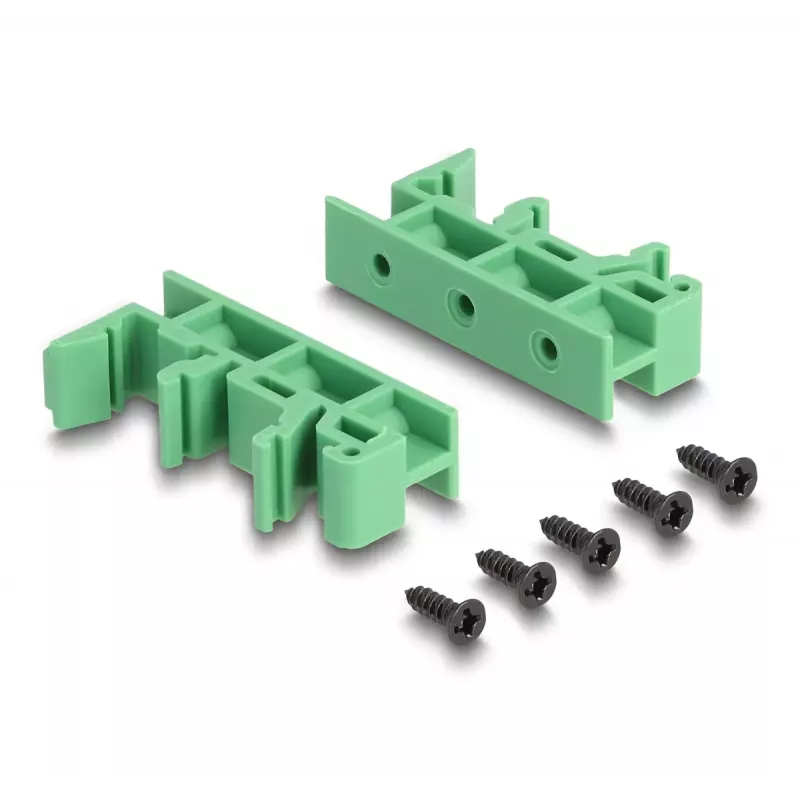

The angled RJ50 female to terminal block adapter allows easy and fast tool-free connection of stripped wire ends via a push-button terminal. DIN rail mounting clips are included for attachment to 15 mm or 35 mm rails, and the compact dimensions make it suitable for space-restricted control cabinets. The product is produced by DELOCK and comes in green and grey housing colours.

Suitable for

• Connecting RJ50 cables to terminal blocks in control and measurement systems
• Quick installation on 15 mm or 35 mm DIN rails
• Environments requiring compact, angled cable interface adapters

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 67013
• EAN: 4043619670130
• Type: RJ50 female to terminal block with push-button, angled
• Mounting: DIN rail (clips for 15 mm and 35 mm included)
• Dimensions (W × D × H): 53 mm × 60 mm × 18 mm
• Colour: Green, Grey
• Country of manufacture: China

How to use

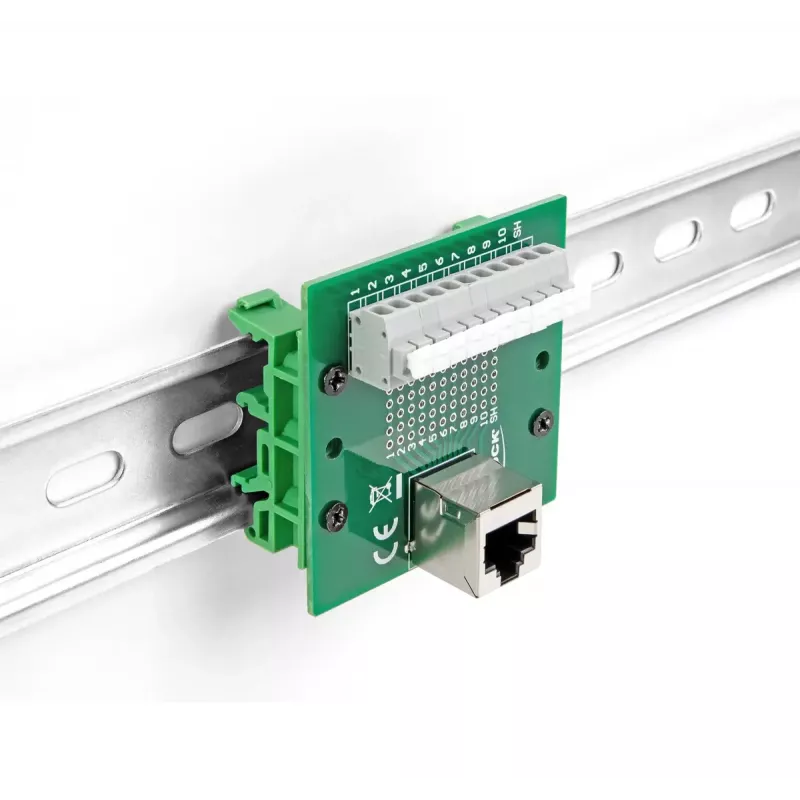

Attach the included clips and mount the adapter onto a 15 mm or 35 mm DIN rail. Insert the RJ50 plug into the female connector. Strip the ends of the stranded wires to the recommended length, press the push-button on the terminal block to open the clamping point, insert the stripped conductor and release the button to secure the wire. Verify the electrical connection before applying signals or power.

Recommendations

Use this adapter in dry, electrically safe environments and ensure wires are stripped to the correct length and firmly clamped. Do not exceed the voltage and current ratings of the connected devices; consult device specifications when integrating into control or measuring systems.
