DeLOCK USB Type-C Triple Display Docking Station 4K USB Hub LAN Audio PD 96W

The DeLOCK USB Type-C Triple Display Docking Station 4K USB Hub LAN Audio PD 96W connects to a computer via USB-C with DisplayPort Alternate Mode or via Thunderbolt 3/4 and provides multiple interfaces for displays, peripherals and network. It supports three simultaneous monitor outputs, integrated USB ports for peripherals and charging, audio jacks, Gigabit Ethernet and an SD card reader. The dock is designed for vertical placement to save desk space.

Advantages

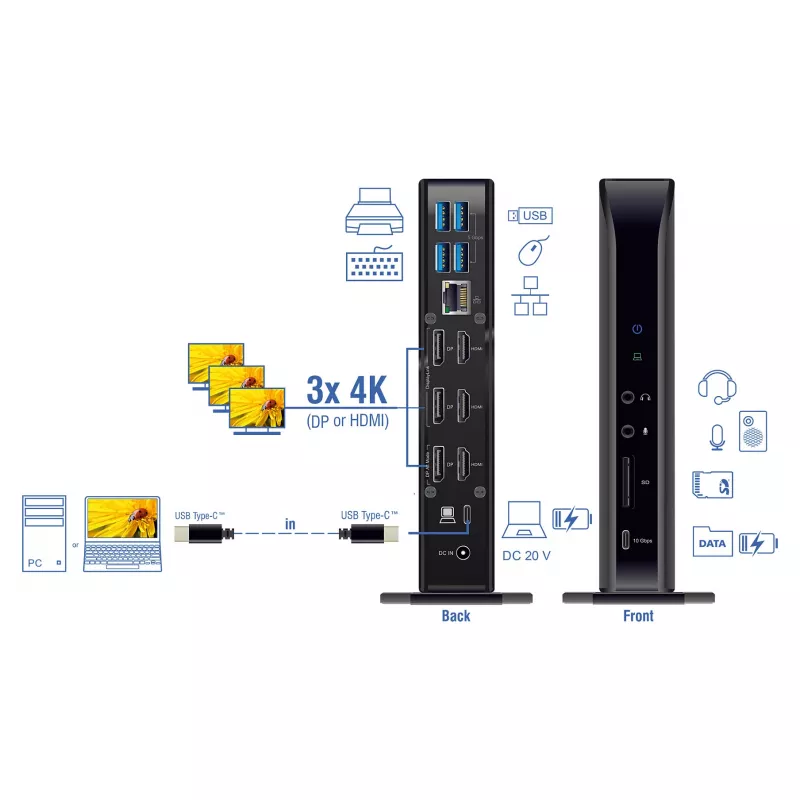

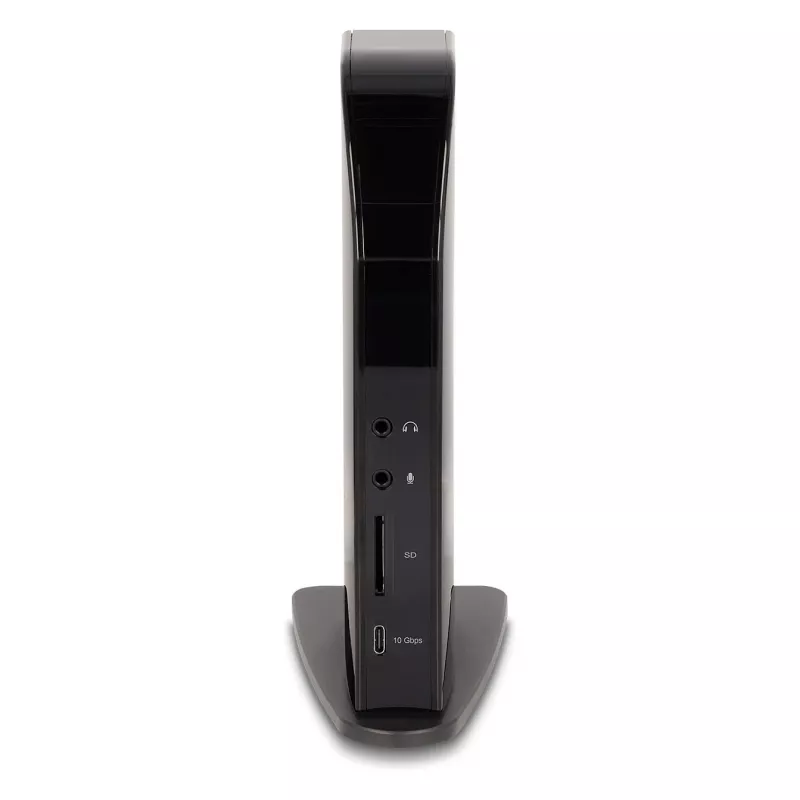

This docking station supports triple 4K UHD displays using a combination of DisplayPort Alternate Mode and DisplayLink technology, guaranteeing up to 4K output on all ports. It provides USB Power Delivery (USB PD 3.0) charging of the host device up to 96 W while connected. The unit includes multiple USB Type-A ports for peripherals and a dedicated charging port, integrated Gigabit LAN for stable wired network access, audio in/out jacks and an SD card reader, all in a compact vertical design.

Suitable for

Key specifications

How to use

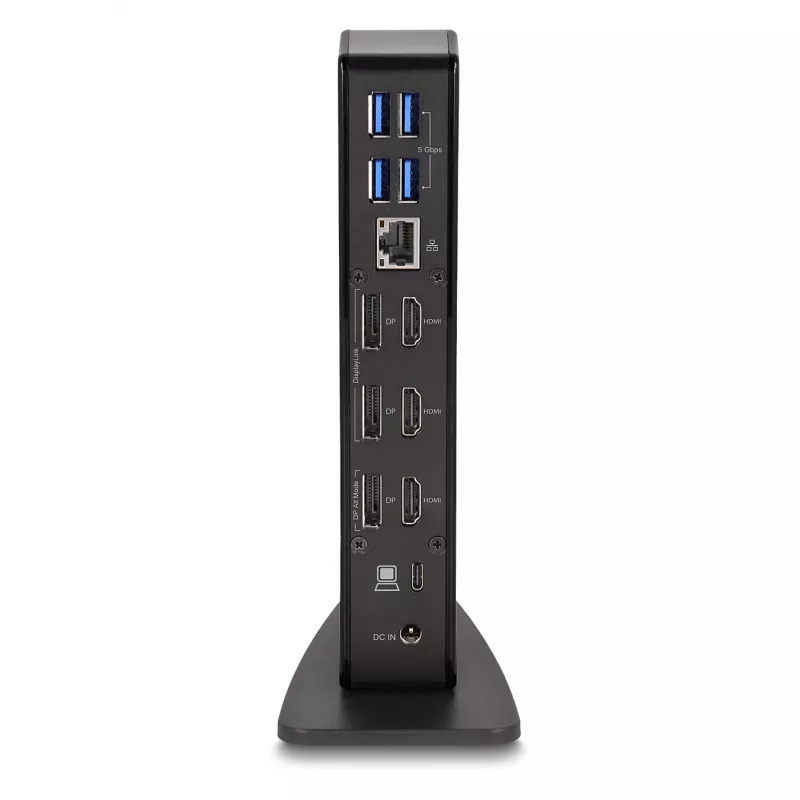

Connect the docking station to the host computer using a USB-C cable that supports DisplayPort Alternate Mode or via Thunderbolt 3/4. Attach monitors to the available DisplayPort and HDMI outputs according to the device grouping rules (one port from each double group). Plug in peripherals to the USB Type-A ports and insert an SD card into the card reader if needed. Connect the external power supply to enable USB Power Delivery to the host device and stable operation of connected devices. For devices without a USB-C port with DP Alt Mode, the dock provides video output on up to two monitors using DisplayLink.

Recommendations

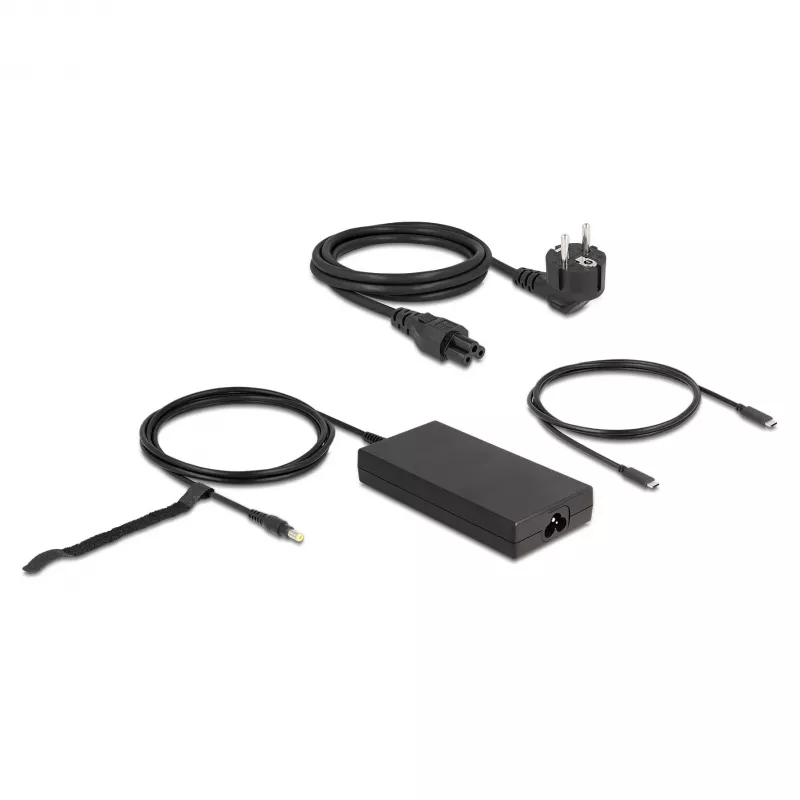

To achieve triple 4K output, use a host with USB-C DP Alt Mode or Thunderbolt and ensure the latest DisplayLink drivers are installed for Windows or macOS. Use the supplied power adapter to enable full 96 W charging and consistent performance when multiple peripherals and high-resolution monitors are connected.
