DIGITUS 2-portový USB 2.0 WLAN sieťový server NAS USB hub tlačový server

The DIGITUS DN-13024 is a compact 2‑port USB 2.0 wireless multi‑functional network server that converts standard USB devices into networked devices. It supports Ethernet LAN and Wireless LAN (IEEE 802.11b/g/n) connections and enables wireless access at up to 300 Mbps (2T2R). The device provides remote access to USB printers, multifunction printers, external storage and USB memory, and allows installation of printer drivers and synchronization of iTunes with iPhone/iPad over the network.

Advantages

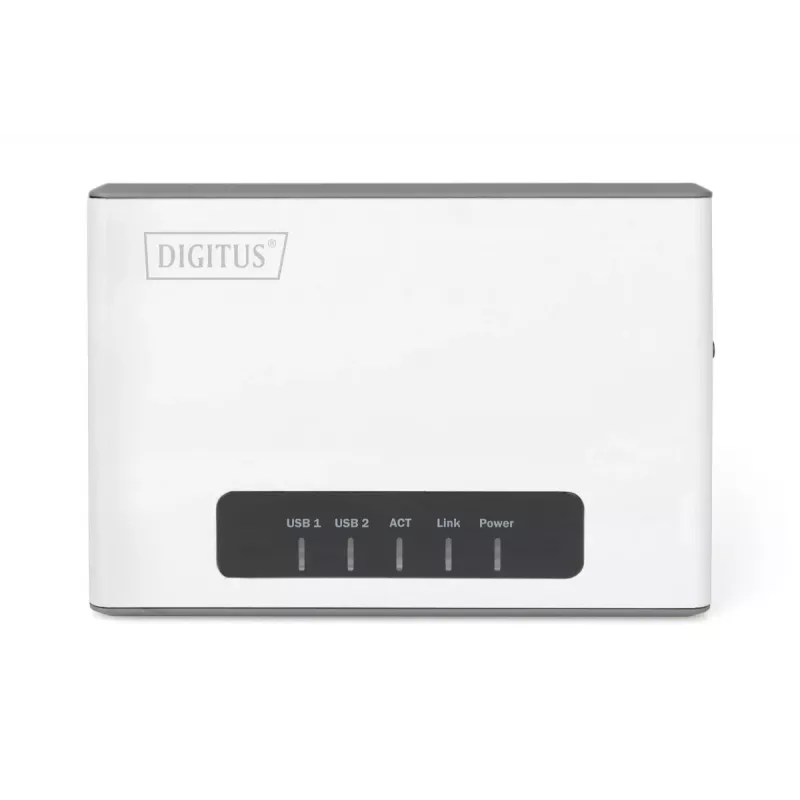

This network server lets multiple network users access USB printers and other USB devices without a direct PC connection. It supports up to two directly attached USB devices (expandable to more with an external hub), offers a LAN port with up to 100 Mbps transmission speed, and includes a user‑friendly web interface for easy configuration. Built‑in features include LED indicators for Link, Power and USB and 64 MB internal memory for device handling.

Suitable for

• Connecting USB printers to a wireless network for shared printing
• Providing network access to multifunction printers and their memory
• Sharing external USB storage or USB memory over the LAN/WLAN
• Remote installation of printer drivers and iTunes synchronization with iPhone/iPad

Key specifications

• Model: DIGITUS DN-13024

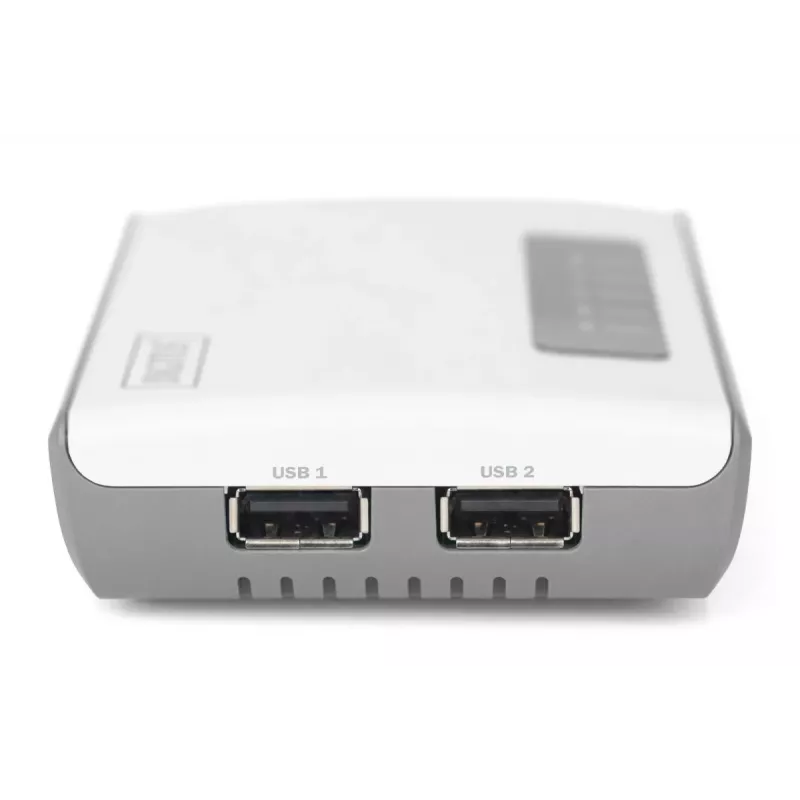

• USB: 2 × USB 2.0 ports (supports additional devices with hub; up to 128 devices with appropriate hub)
• Wireless: IEEE 802.11b/g/n, up to 300 Mbps (2T2R)

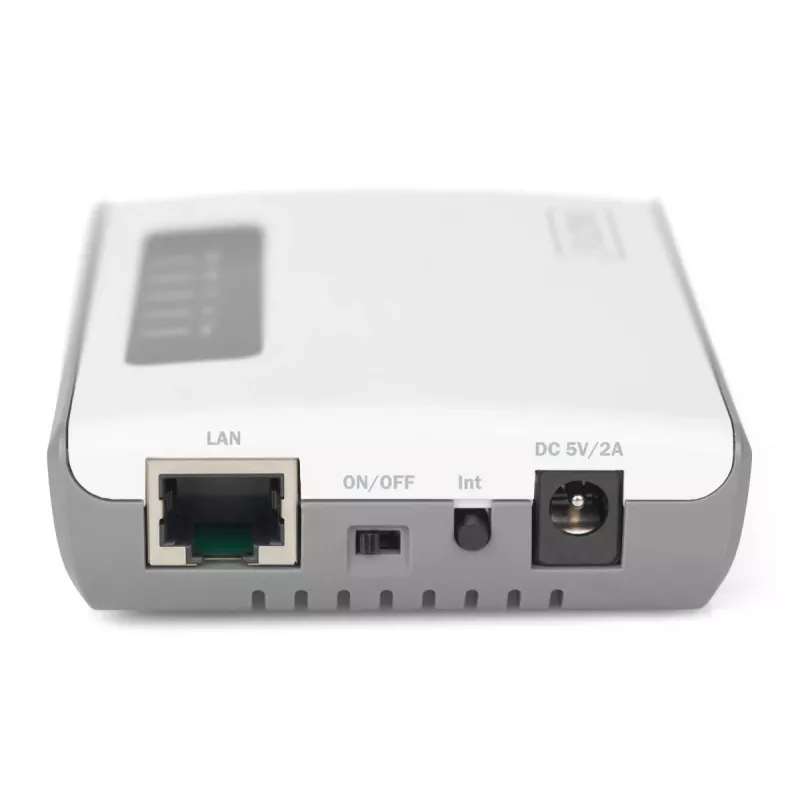

• Wired LAN: Ethernet 10/100 Mbit/s (LAN port up to 100 Mbps)
• Protocols: IPv4, TCP/IP
• Internal memory: 64 MB
• Power supply: AC adapter, output 5 V
• Product colour: White; Weight: 0.0898 kg

How to use

Connect the DN-13024 to your network via the LAN port or configure it for wireless access. Attach up to two USB devices directly to the server or connect a USB hub to expand the number of devices. Use a web browser to open the built‑in web interface and follow the setup wizard to register connected devices, configure network settings and assign sharing permissions. Once configured, network users can access printers, storage and other USB devices as network resources and install printer drivers remotely.

Recommendations

Place the device in a location with good WLAN coverage and connect to a stable power source. For optimal throughput when sharing large files or many simultaneous users, prefer the wired 10/100 Mbit/s connection where possible and use a high‑quality USB hub if expanding beyond two devices.
