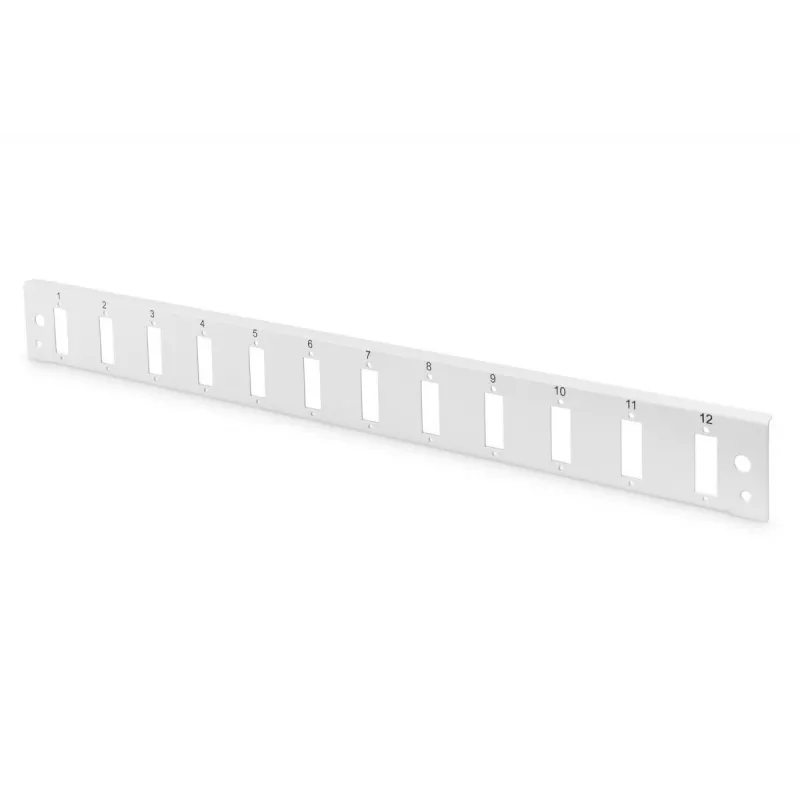

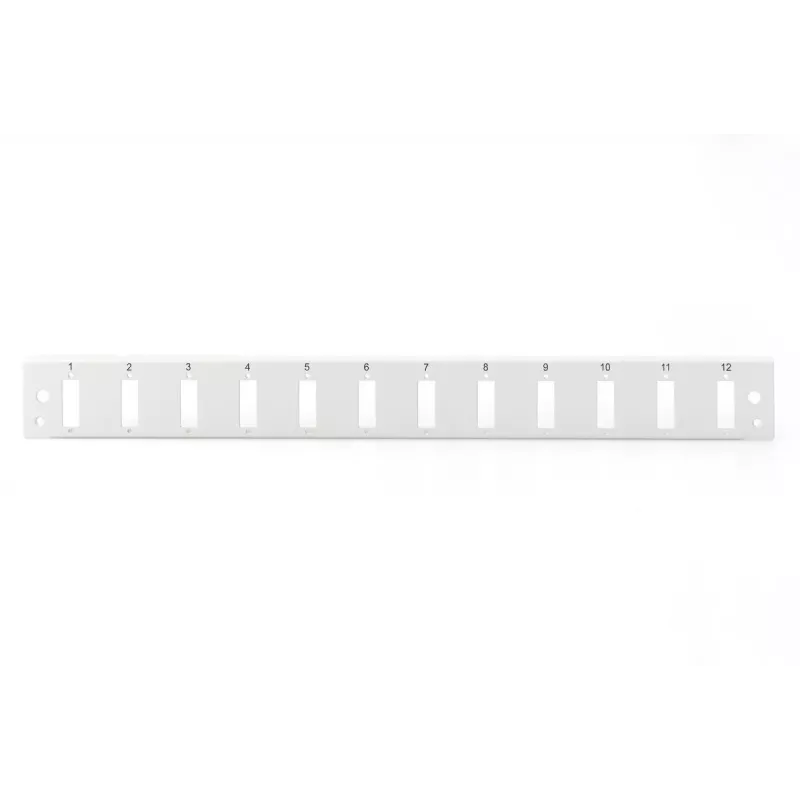

DIGITUS FO predný panel Quick Lock 12x SC DX vertikálne sivý

The DIGITUS front panel DN-96201-QL is a 1U fiber optic splice box front panel designed for compact and efficient rack-mounted fiber management. It accepts 12 SC DX connectors and is intended for installation into the basic housing DN-96200-QL. The panel measures 430 mm (W) x 15 mm (D) x 44 mm (H) and comes in grey with the required fixing material included.

Advantages

The front panel features a quick lock system that simplifies and speeds up installation compared with conventional fastening methods. Its sturdy construction provides reliable support for fiber terminations, while the compact 1U format saves rack space and fits standard installation environments.

Suitable for

• Rack-mounted fiber optic installations
• Splice boxes and patching panels using 12 SC DX connectors
• Data centers and telecommunications cabinets requiring space-efficient components

Key specifications

• Manufacturer: DIGITUS
• Model: DN-96201-QL
• Connector capacity: 12 x SC DX
• Form factor: 1U
• Dimensions: 430 mm x 15 mm x 44 mm (W x D x H)
• Colour: Grey
• Includes: Fixing material for installation into DN-96200-QL housing
• MPN: DN-96201-QL
• EAN: 4016032458234

How to use

Install the front panel into the compatible DN-96200-QL basic housing using the supplied fixing material. Align the panel with the housing front opening, engage the quick lock mechanism and secure it until it clicks into place. Insert and terminate fiber connectors or patch cords into the 12 SC DX ports according to your fiber management plan.

Recommendations

For safe and reliable performance, mount the panel in a properly grounded rack, avoid excessive bending of fiber cables near the connectors, and follow standard fiber handling and termination procedures. Use the quick lock to speed up service operations, but verify mechanical engagement before finalizing installation.
