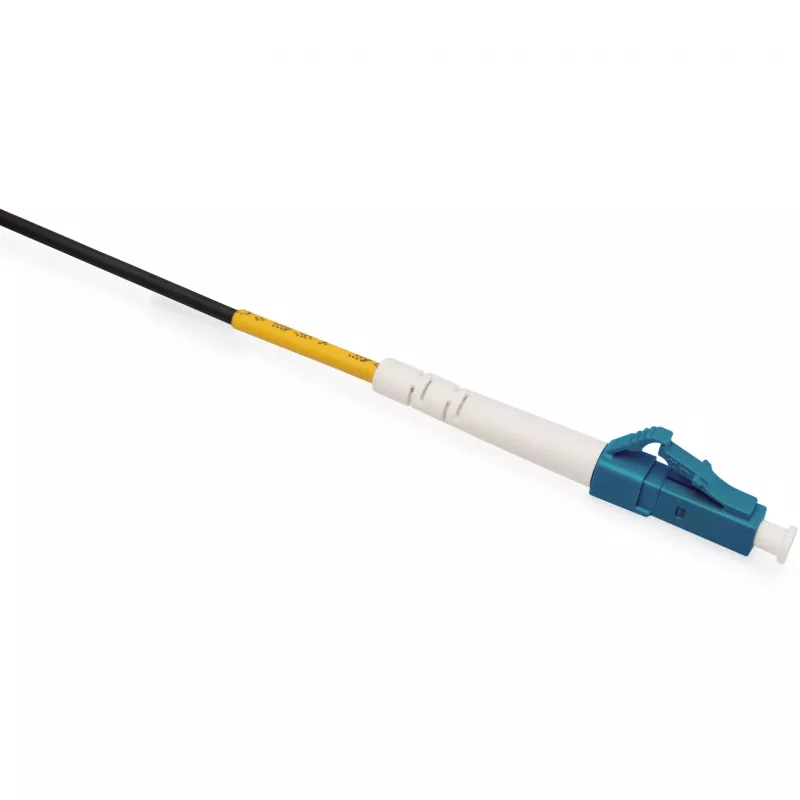

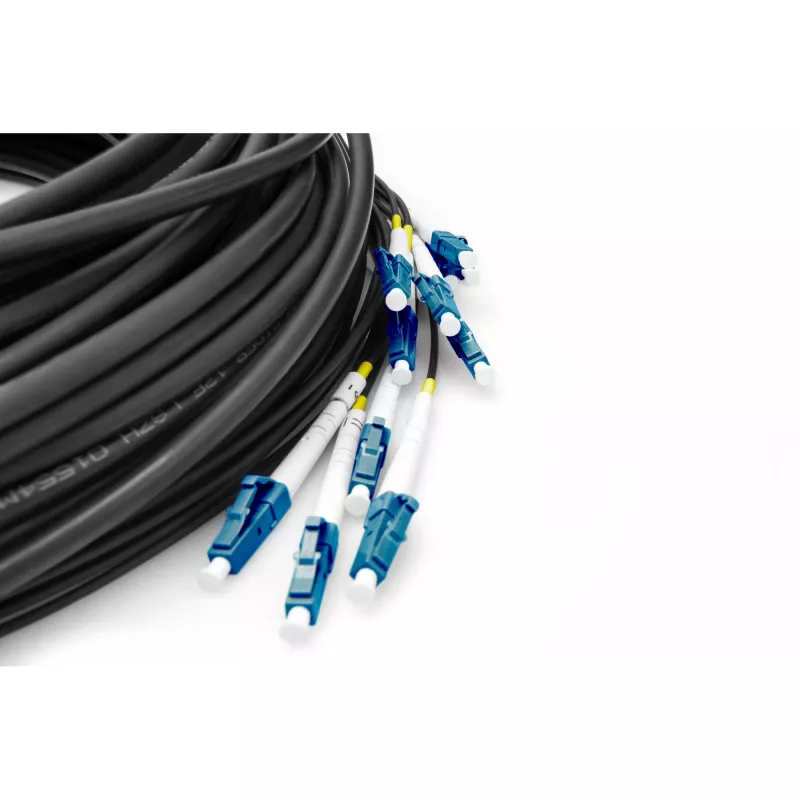

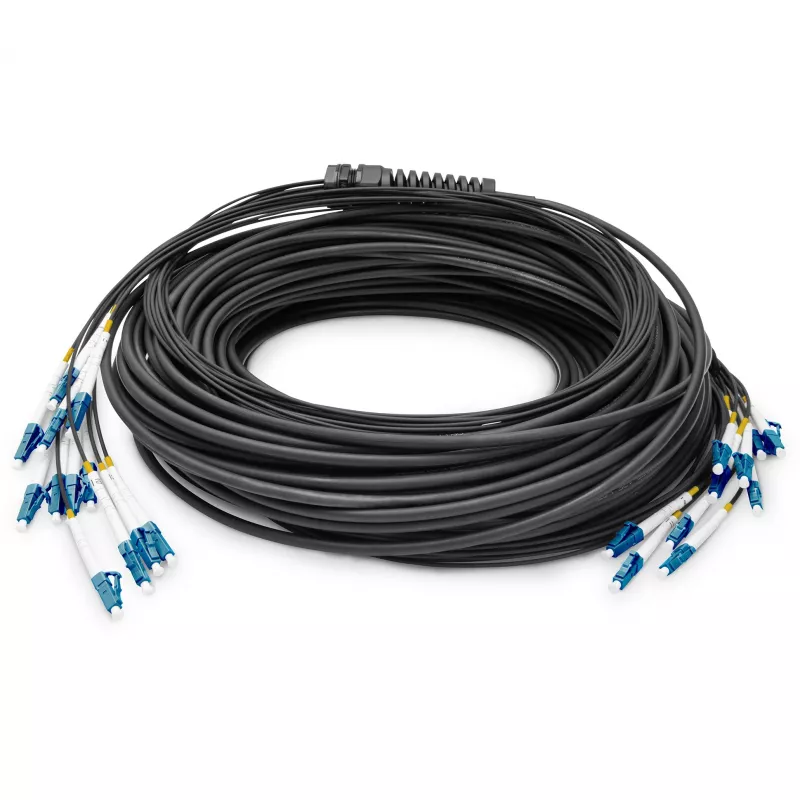

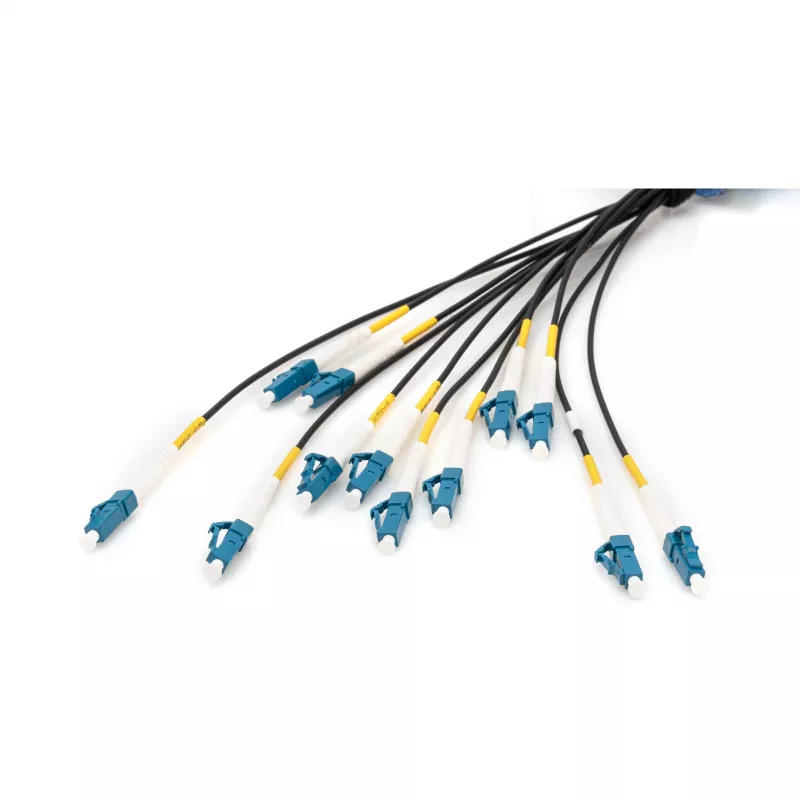

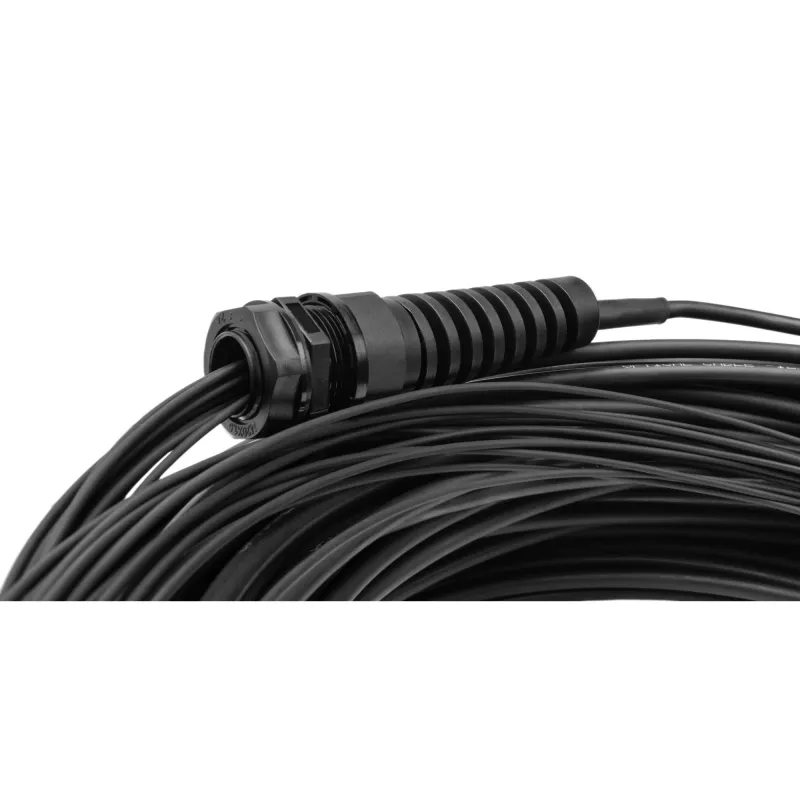

Digitus predkonfekcionovaný univerzálny optický breakout kábel, 12 vlákien, LC/UPC, 50 m

The Digitus Pre-assembled Fiberglass Universal Breakout Cable 12 Fibers LC/UPC 50m is a pre-assembled single-mode OS2 fiber optic breakout cable with twelve individually protected fibers terminated with LC/UPC connectors. With a 50 m length and a 9 µm core diameter, this cable is designed for high-speed data transmission in networking and telecommunications installations where reliable, factory-terminated connections and robust mechanical protection are required. The product is delivered ready for immediate use without additional splicing and includes a measurement report that documents performance.

Advantages

This pre-assembled breakout cable offers factory-mounted LC/UPC connectors for rapid Plug & Play installation and reduces onsite labor by eliminating splicing. Individual mechanical protection for each fiber and a robust overall cable construction increase durability in indoor and controlled outdoor environments. Standard length availability from stock and high-quality components ensure consistent performance for single-mode OS2 applications.

Suitable for

• High-speed single-mode backbone connections in data centers and telecom rooms
• Patch panel to equipment links where pre-terminated fibers speed deployment
• Installations requiring strong mechanical protection for each fiber
• Indoor and sheltered outdoor cabling routes where OS2 single-mode fiber is specified

Key specifications

• Fiber count: 12 fibers
• Connector type: LC/UPC
• Mode: Single-mode (OS2)
• Length: 50 m
• Core diameter: 9 µm
• Termination: Factory-mounted, pre-assembled
• Construction: Breakout design with individually protected fibers and robust outer jacket

How to use

Route the pre-assembled breakout cable along the planned cable path and secure it according to site cabling standards. Terminate the LC/UPC connectors into corresponding LC ports on patch panels, switches, or optical equipment, taking care to keep connectors clean and dust-free. Use the included measurement report to verify insertion loss and performance after installation. No additional splicing or field termination is required for the factory-mounted connectors.

Recommendations

Handle connectors by their housings and protect ferrules with dust caps until installation. Avoid tight bends and excessive tensile loads; follow the manufacturer’s minimum bend radius and pull strength guidelines where available. For best performance, inspect and clean LC/UPC connector endfaces before mating and validate link performance using the supplied measurement report or appropriate optical test equipment.
