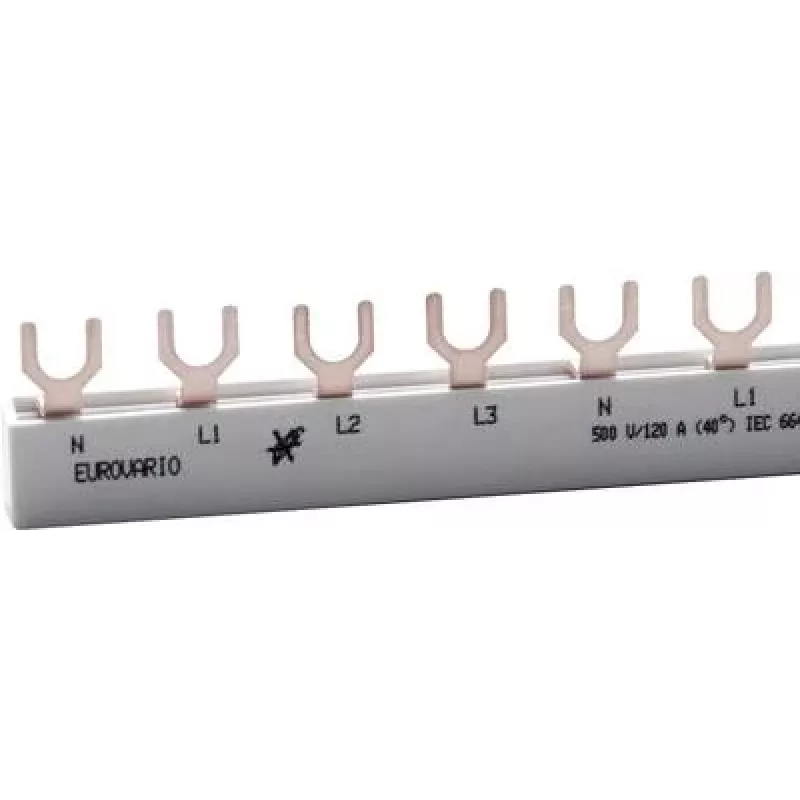

DOEPKE 4-fázová vidlicová zbernica 120A 12TE EV-SG4.12.120L 09920125

Rated for 120 A continuous current, this 4-pole fork-type busbar distributes power across 12 module units (TE) on a DIN rail without pin connections.

Overview

The DOEPKE EV-SG4.12.120L is a fully insulated 4-phase busbar with a fork-type (pinless) design. It provides a rated voltage of 400 V AC and a conductor cross-section of 16 mm². The copper conductor is enclosed in grey insulation, and the unit mounts directly on a standard DIN rail. It is intended for power distribution to modular devices such as miniature circuit breakers (MCBs) and residual current devices (RCDs) that use fork terminals.

What stands out

• High current capacity: 120 A for demanding distribution tasks.
• Pinless fork design simplifies installation and removal of devices.
• Fully insulated for safe operation in distribution boards.
• Compact 12 TE width fits standard DIN rail enclosures.

Technical details

• Product type: Busbar
• Busbar design: Fork type (pinless)
• Number of poles: 4
• Number of modules: 12 TE
• Rated current: 120 A
• Rated voltage: 400 V AC
• Conductor cross-section: 16 mm²
• Conductor material: Copper
• Insulation: Fully insulated
• Insulation colour: Grey
• Mounting type: DIN rail
• Length: 210 mm
• Compatibility: Standard modular devices with fork terminals
• Application: Power distribution for modular devices (e.g., MCBs, RCDs)

Our verdict

A robust 4-phase busbar for professional distribution boards, delivering 120 A with a convenient pinless connection system.
