Rittal SV 3515.000 medená zbernica 12x5mm 1m 3-pack pre rozvod prúdu

Engineered for high-current power distribution, this Rittal SV busbar set delivers a robust 200-250 A capacity in a compact 12 x 5 mm cross-section. The 1000 mm length and 3-piece pack provide ample material for building or extending busbar systems in switchgear and control panels.

Overview

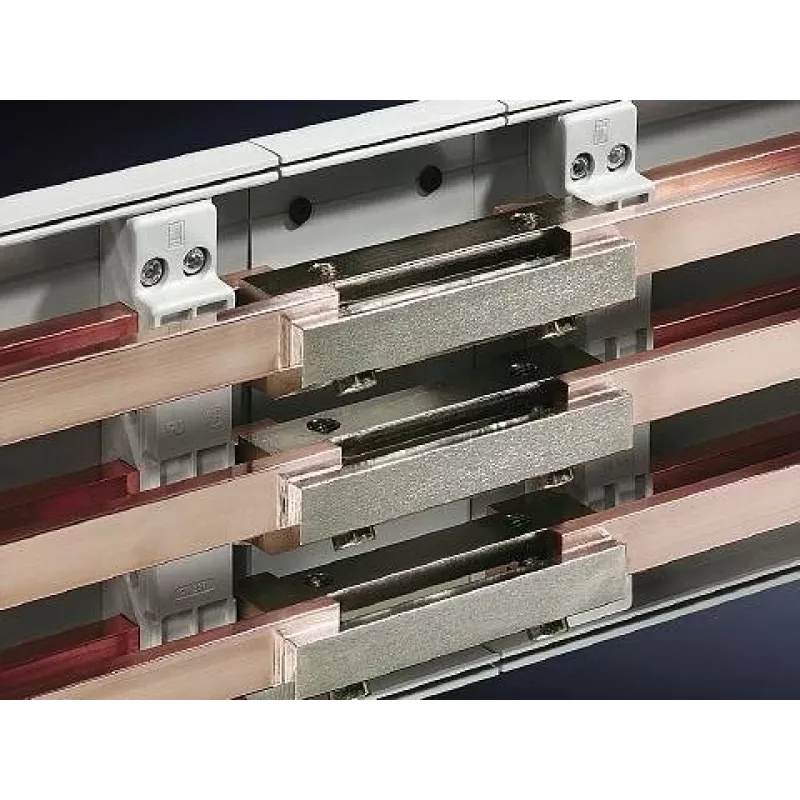

The Rittal SV 3515.000 is a set of three rectangular copper busbars made from electrolytic copper (E-Cu), offering excellent conductivity and corrosion resistance. Designed for use with the Rittal SV busbar system, these bare copper conductors are ideal for professional electrical installations requiring reliable power distribution. Each bar measures 12 mm wide, 5 mm thick, and 1000 mm long, with a weight of approximately 0.538 kg per piece.

What stands out

• High-purity electrolytic copper (E-Cu) ensures low resistance and efficient current flow.
• Rectangular 12 x 5 mm profile fits standard Rittal SV busbar holders for secure mounting.
• Pack of 3 bars allows for multi-phase or parallel configurations.
• Untreated bare copper surface permits custom finishing or direct connection.
• Compliant with DIN EN 13601 for copper and copper alloys, guaranteeing material quality.

Technical details

• Product type: Busbar
• Material: Electrolytic copper (E-Cu)
• Cross-section: 12 mm (W) x 5 mm (H)
• Length: 1000 mm per bar
• Number of pieces: 3
• System compatibility: Rittal SV busbar system
• Conductor shape: Rectangular
• Surface finish: Untreated / bare copper
• Approximate current capacity: 200-250 A (depending on installation conditions)
• Density of material: 8.96 g/cm³
• Application: Power distribution in switchgear and control panels
• Mounting: Requires busbar holders (e.g., Rittal SV series)
• Standard compliance: DIN EN 13601
• Colour: Metallic copper
• Weight per piece: ~0.538 kg
• Insulation: None (bare conductor)
• Corrosion resistance: Good (for copper)

Our verdict

A dependable choice for professionals building or maintaining power distribution systems. The Rittal SV 3515.000 busbars offer high conductivity and straightforward integration with Rittal SV components, making them a practical investment for reliable electrical infrastructure.
