Dometic MagicWatch MWE860 káblová cúvacia parkovacia pomôcka s akustickým a optickým varovaním (9600000354)

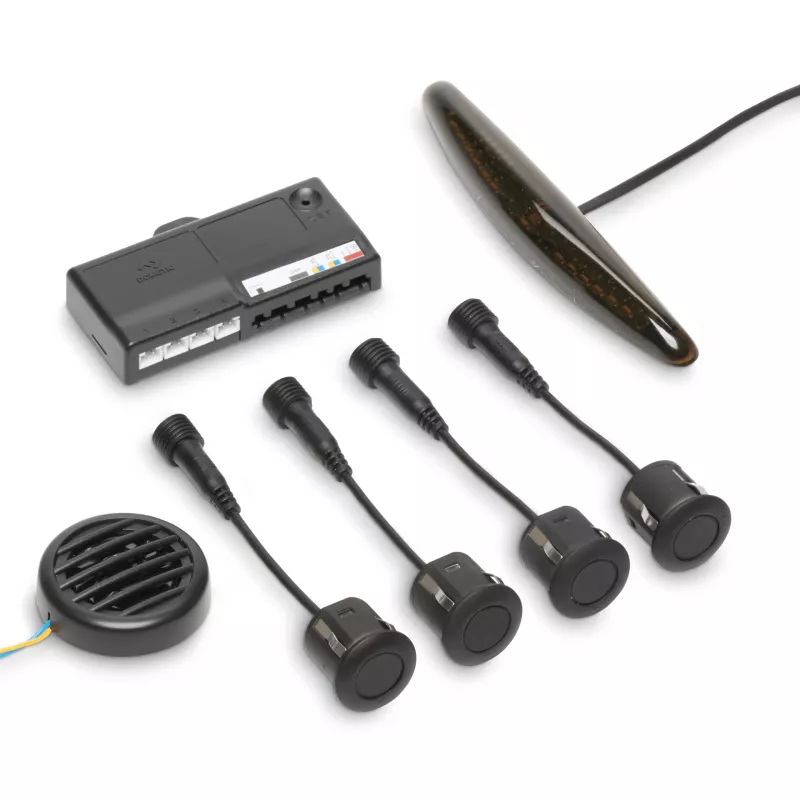

The Dometic MagicWatch MWE860 is a wired rear parking aid system that provides both acoustic and optical warnings to assist drivers when reversing. Using four ultrasonic sensors, it detects obstacles behind the vehicle and alerts the driver through an integrated buzzer and LED display, helping to prevent collisions and make parking easier.

Advantages

The system offers reliable obstacle detection with adjustable volume and a clear visual display. The sensors are flush-mount and paintable, allowing them to blend seamlessly with the vehicle's bumper. The wired connection ensures stable signal transmission without interference.

Suitable for

• Cars, vans, and motorhomes requiring rear parking assistance
• Drivers who want both audible and visual warnings
• Vehicles with a 12 V DC electrical system

Key specifications

• System type: Parking aid system
• Installation location: Rear
• Warning type: Acoustic, optical
• Sensor technology: Ultrasonic
• Number of sensors: 4
• Sensor mounting: Flush-mount
• Connectivity: Wired
• Display type: LED display with integrated buzzer
• Detection range: 0.3 - 1.5 m
• Operating voltage: 12 V DC
• Power consumption: Max. 100 mA
• Operating temperature: -30°C to +80°C
• Acoustic warning features: Integrated buzzer, adjustable volume
• Sensor drill hole diameter: 21.5 mm
• Sensor color: Black (paintable)
• Sensor cable length: Approx. 2.5 m
• Display cable length: Approx. 5 m
• Control unit dimensions (L x W x H): 90 x 60 x 20 mm

Recommendations

For professional installation, consult a qualified technician to ensure proper sensor placement and wiring. The sensors can be painted to match the vehicle color for a discreet look.
