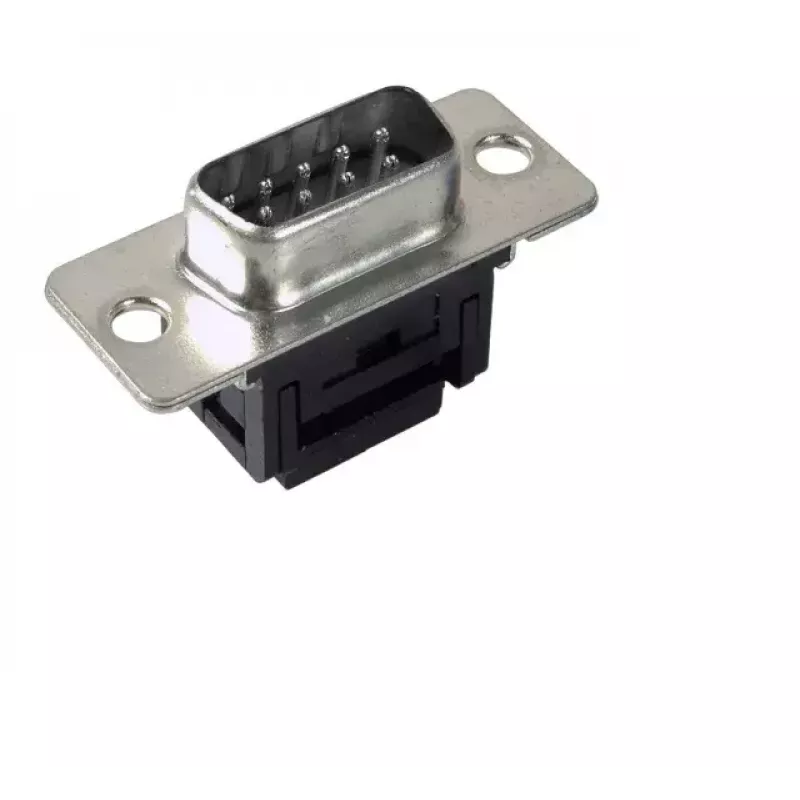

Drôtový konektor D-Sub EFB Elektronik 29062.1, čierno-metalické prevedenie

EFB Elektronik 29062.1 is a wire connector designed for D‑Sub applications, featuring a black metallic finish that provides a durable housing and a refined appearance. The connector housing accommodates D‑Sub cable assemblies and device interfaces, offering mechanical protection and a standardized interface for signal and data connections in electronics, industrial equipment and communication devices.

Advantages

The black metallic finish combines corrosion resistance with a uniform aesthetic suitable for visible equipment panels. The design supports secure mating with D‑Sub plugs and sockets while protecting internal wiring from mechanical stress and environmental exposure. The connector is compatible with typical D‑Sub assembly practices and integrates with standard mounting and cable routing in industrial and electronic setups.

Suitable for

• Assembly of D‑Sub cable harnesses for industrial control systems
• Replacement or upgrade of device interfaces with a metallic aesthetic
• Communication equipment, test instruments and measurement devices
• Environments requiring durable connector housings and mechanical protection

Key specifications

• Connector type: D‑Sub wire connector housing
• Finish: black metallic
• Function: housing and mechanical protection for cable-to-device connections
• Compatibility: designed for standard D‑Sub cable assemblies and mating parts
• Application areas: electronics, industrial equipment, communication devices

How to use

Install the connector as part of a D‑Sub cable assembly by routing wires into the housing according to the pinout of the mating D‑Sub connector and securing conductors with the appropriate crimp or solder contacts. Ensure correct alignment and engagement with the mating plug or socket, and fasten any retaining hardware to provide strain relief and mechanical stability. Verify continuity and insulation before placing the assembly into service.

Recommendations

Use the connector within its intended application range: standard D‑Sub signal and data circuits in electronics and industrial equipment. For reliable operation, follow established cable assembly procedures, apply appropriate strain relief, and avoid exposure to environments or forces beyond the connector's mechanical protection capabilities.
