Držiak Axis 02110-001

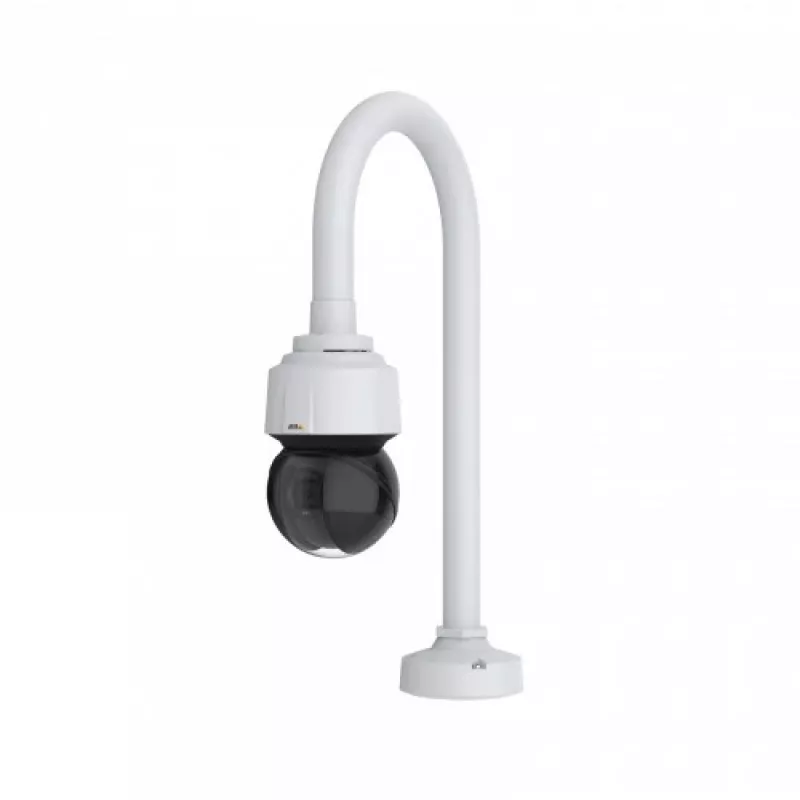

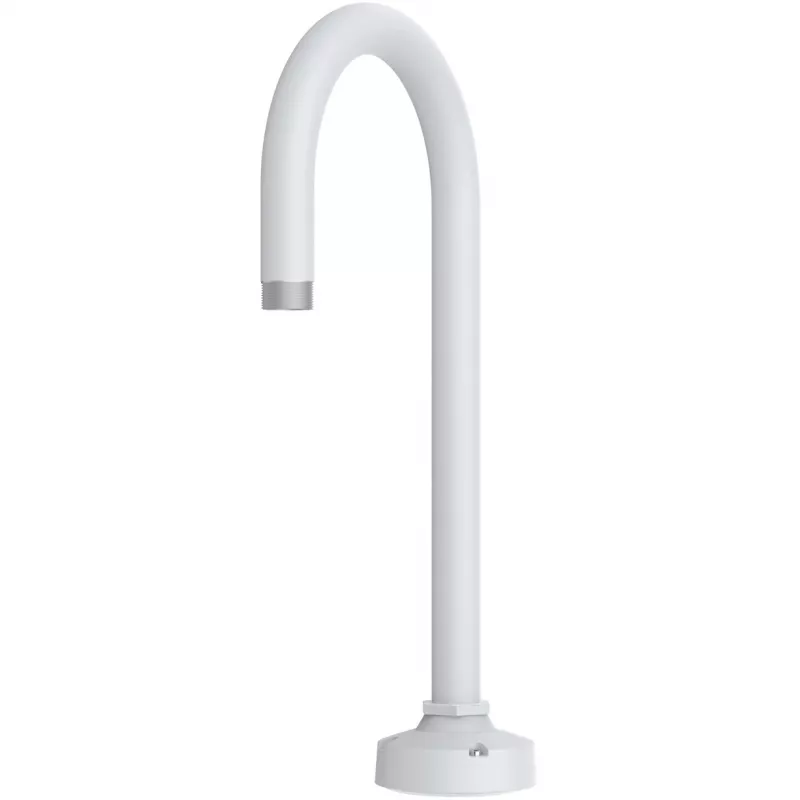

AXIS TQ6501-E Parapet Mount is a robust outdoor-ready mount made of aluminum, designed for secure installation of Axis pendant cameras and related accessories. The round base simplifies installation and allows mounting on poles. It is compatible with Axis pendant kits with 1.5" NPS/NPT inner thread and with Axis ACI 3/4" conduit adapters. Cable routing is possible through the bottom or from the side via a conduit connection. The mount includes four holes for standard pole-mounted pan and tilt camera fixings, equi-spaced on a 101.6 mm PCD. Dimensions: width 160 mm, depth 418 mm, height 754 mm; color: white; connecting thread: 3/4".

Advantages

The mount is constructed from aluminum for outdoor durability and corrosion resistance. Its round base and standard hole pattern allow flexible installation on flat parapets or cylindrical poles. Compatibility with 1.5" NPS/NPT pendant kits and 3/4" conduit adapters supports a range of Axis camera models and tidy cable management. The option to route cables through the bottom or side provides installation flexibility in different site conditions.

Suitable for

• Mounting Axis pendant cameras on parapets or poles
• Outdoor surveillance installations requiring weather-resistant mounting
• Installations needing concealed or side conduit cable routing
• Setups using Axis ACI 3/4" conduit adapters

Key specifications

• Material: Aluminum
• Connecting thread: 3/4" (conduit) and compatible with 1.5" NPS/NPT pendant inner thread
• Dimensions (W×D×H): 160 mm × 418 mm × 754 mm
• Colour: White
• Pole mount hole pattern: 4 holes equi-spaced on 101.6 mm PCD
• MPN: 02110-001
• EAN: 7331021072787

How to use

Position the parapet mount on the desired flat or pole surface and secure it using the four equi-spaced holes on the 101.6 mm PCD for standard pole-mounted pan/tilt camera fixings. Attach the pendant kit or camera using the compatible 1.5" NPS/NPT inner thread or the 3/4" conduit connection as required. Route cables either through the bottom opening or connect them via a side conduit adapter; ensure all connections are tightened and sealed against weather where applicable. Verify mounting stability and camera orientation before completing installation.

Recommendations

Use corrosion-resistant fasteners and appropriate sealing for outdoor installations. Check compatibility of the specific Axis camera model with 1.5" NPS/NPT pendant kits and ensure conduit adapters are correctly sized before installation.
