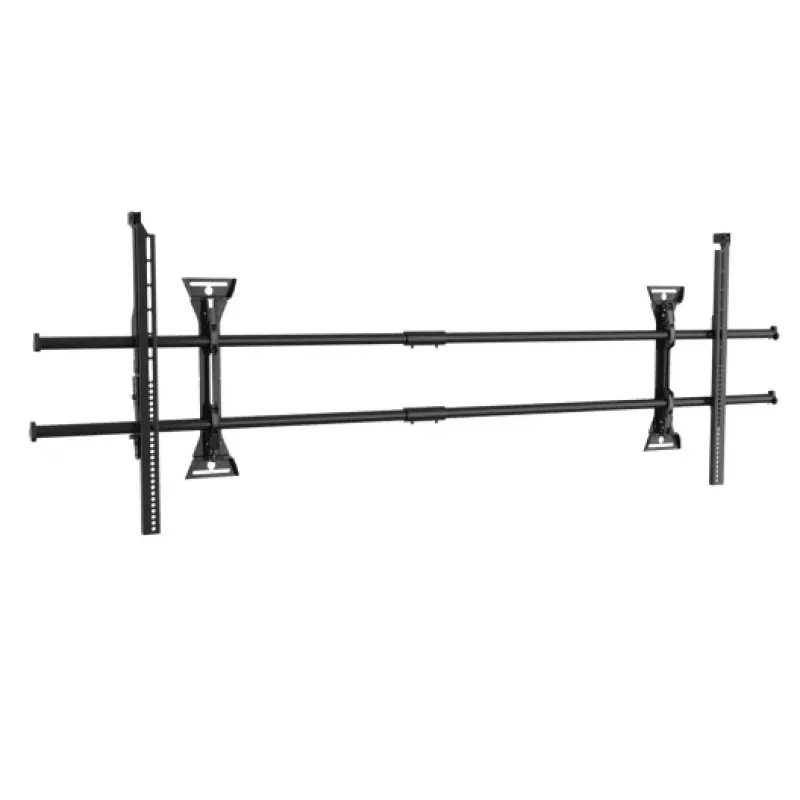

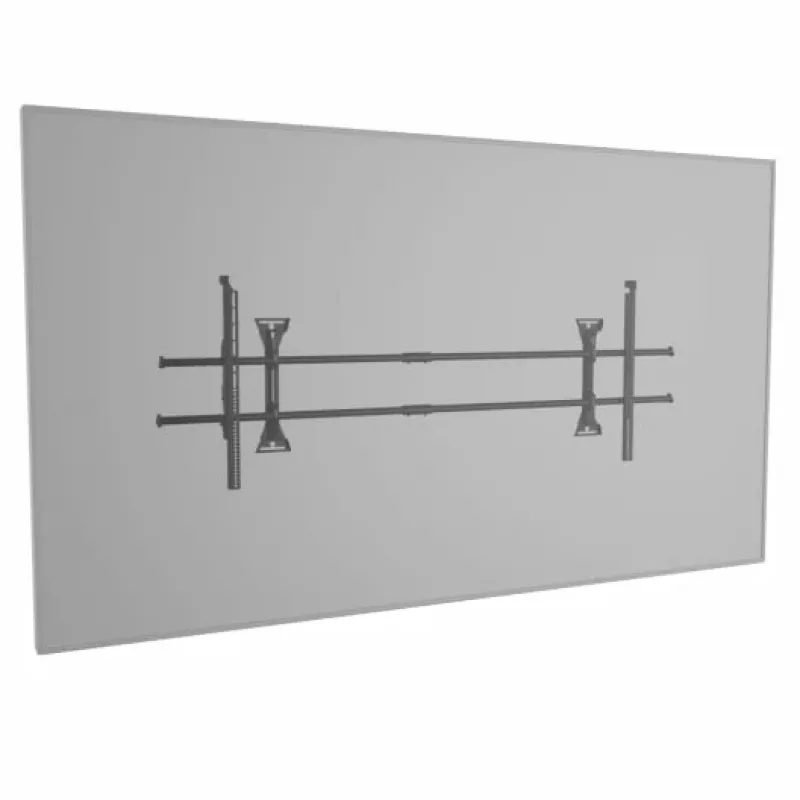

Držiak signage displeja Chief KITXWXSM1U 3,05 m čierny max. hmotnosť 113,4 kg

The Ultrawide Micro-Adjustable Static Wall Mount, Extra-Large Kit is designed to support ultrawide signage displays with 21:9 aspect ratio and large mounting patterns. The kit accommodates very large screens with a supported display height range from 2.03 m to 3.05 m and a maximum load capacity of 113.4 kg. Its black finish provides a professional appearance suitable for corporate, retail, and public installations.

Advantages

The mount uses Fusion® features to provide micro-adjustments for precise screen alignment after installation and supports ultrawide VESA patterns up to 891 mm x 1500 mm. It is engineered for a secure, static wall installation with a high weight capacity, and its compatibility with large-format displays minimizes the need for custom brackets.

Suitable for

• Large ultrawide signage displays in lobbies and atriums
• Retail and digital signage installations requiring 21:9 aspect ratio screens
• Conference rooms and auditoriums with very large displays

Key specifications

• Supported display height range: 2.03 m to 3.05 m
• Maximum load capacity: 113.4 kg
• Supports ultrawide mounting patterns up to 891 mm × 1500 mm
• VESA compatibility up to 1300 × 600 mm
• Finish: black

How to use

Mount the kit to a structurally sound wall following the manufacturer’s installation instructions, verify that wall anchors and fasteners are rated for the combined weight of the mount and display, attach the display using the compatible VESA mounting pattern, and use the micro-adjustment features to level and align the screen precisely. Ensure two qualified persons handle the display during installation due to its size and weight.

Recommendations

Install on properly reinforced walls and confirm wall fasteners meet local building codes. For safety and optimal performance, use the mount only with displays within the specified dimensions and weight limits and consult Chief installation documentation for detailed torque and fastener specifications.
