Montáž signage displeja Vision VFM-W10X6 2,29 m čierna

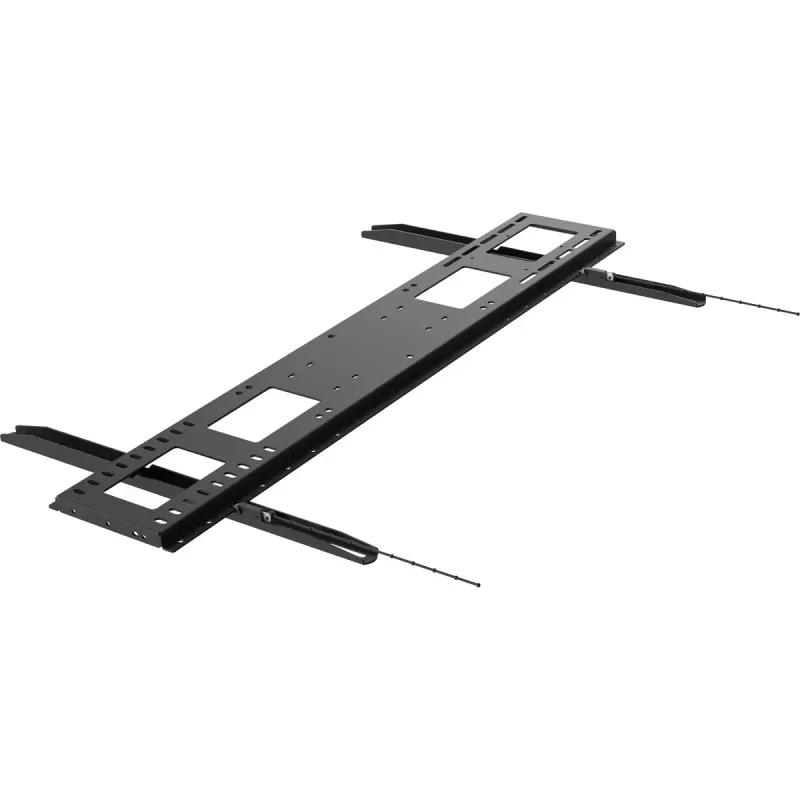

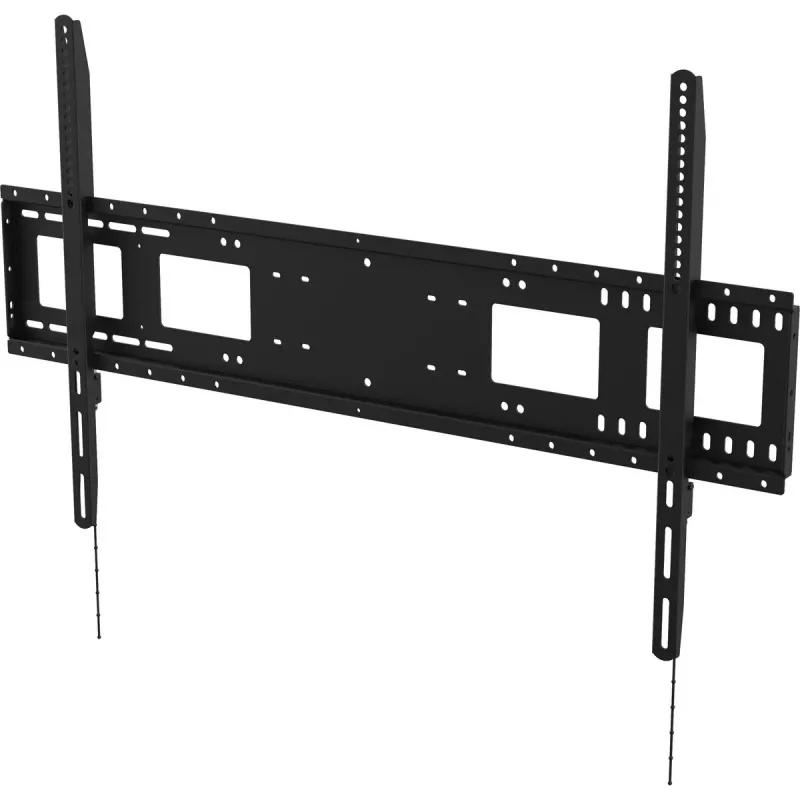

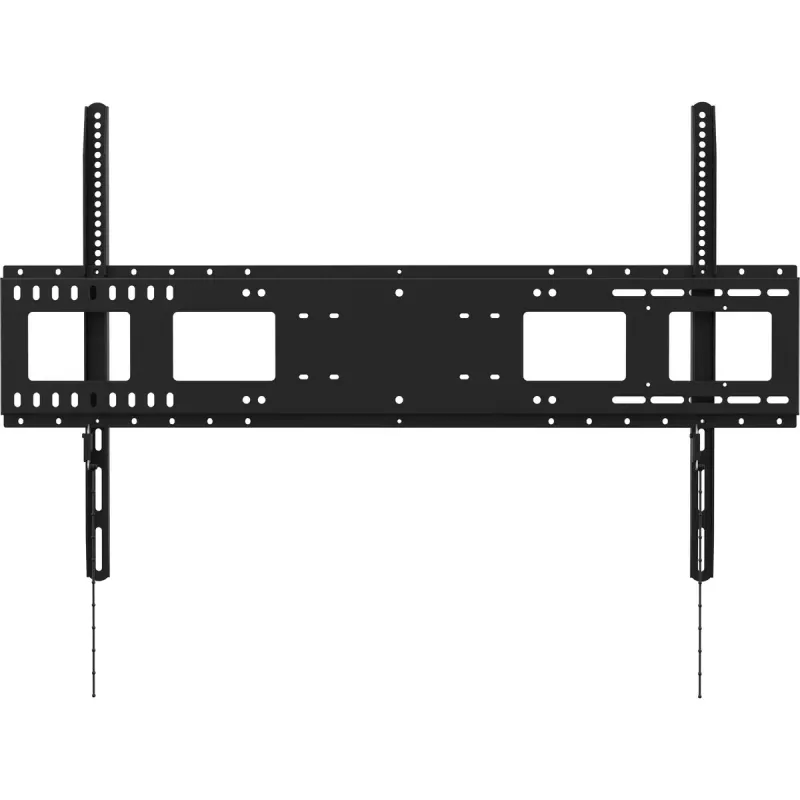

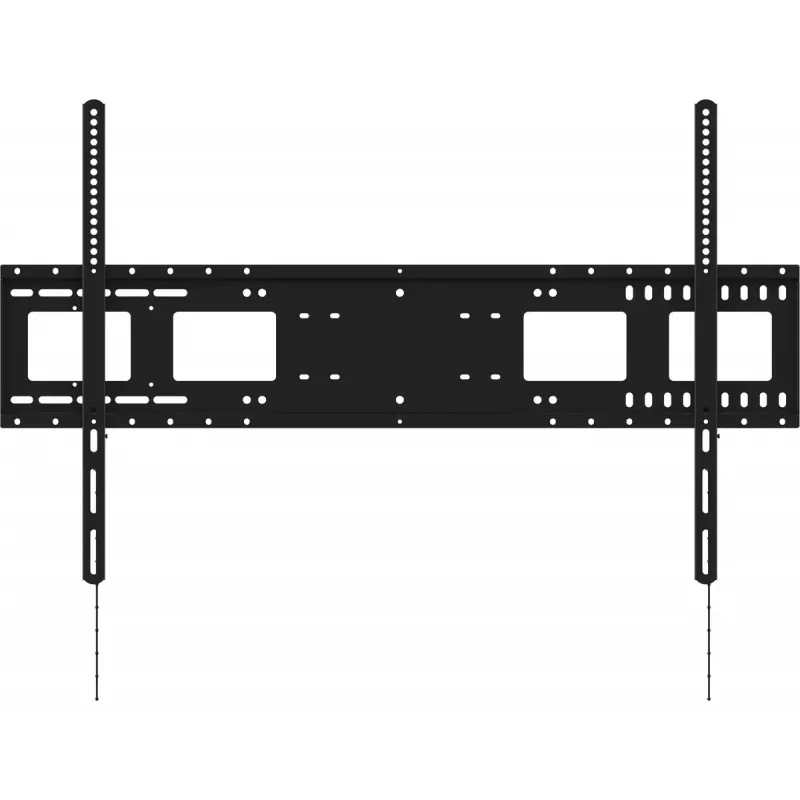

The Vision VFM-W10X6 is a heavy-duty flat-panel wall mount designed by VISION for professional AV installers. It supports flat-panel LCD and LED displays with rear mounting patterns up to 1000 mm wide x 600 mm tall and is compatible with most 55–90" screens. The mount is constructed from heavy-gauge sheet metal and provides a secure, low-profile attachment that holds the display 36 mm from the wall while supporting a safe working load (SWL) of 130 kg. The product includes a full set of M5, M6 and M8 fixing bolts and is available in a black finish suited to commercial installations.

Advantages

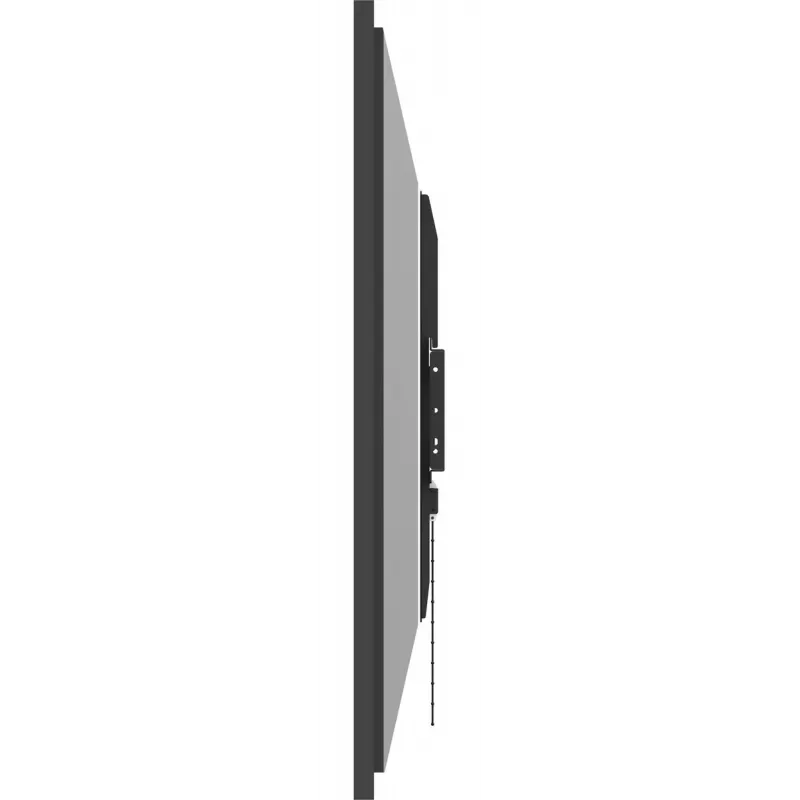

The VFM-W10X6 offers a robust build and professional features for fast installation and reliable long-term use. Its slim 36 mm offset reduces snagging and concentrates the load close to the wall, increasing the mount’s safe working load rating. Slotted holes on the wall plate allow post-fix levelling, and the horizontal section latches securely when the display is hung. Two horizontal sections can be joined side-by-side for dual installations or to span wide fixing points. Optional accessories such as a rotary bearing assembly, video-conference shelf, flip-up laptop shelf and Logitech Rally brackets expand functionality.

Suitable for

Key specifications

How to use

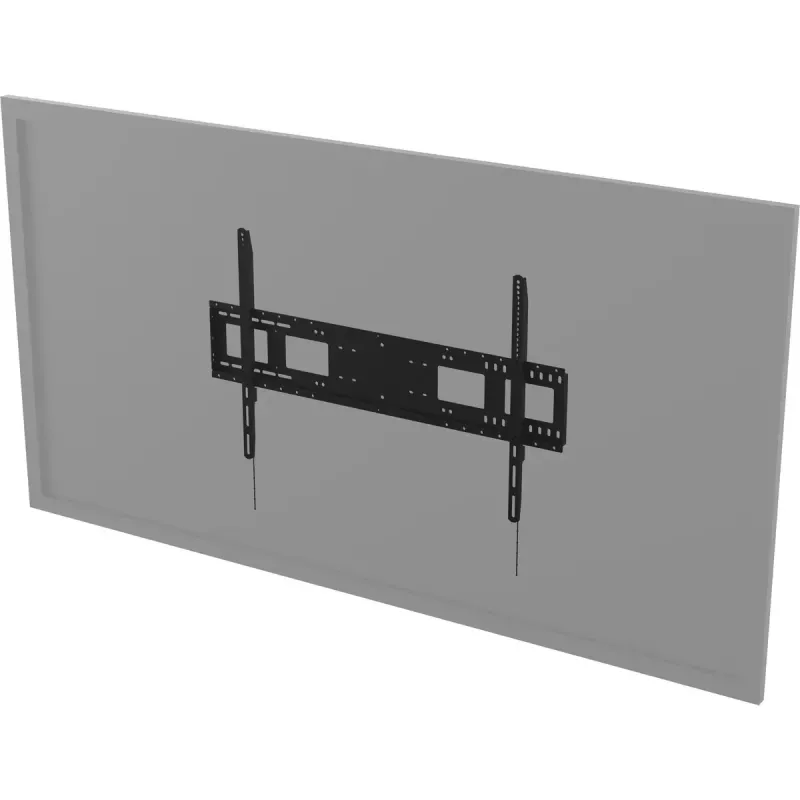

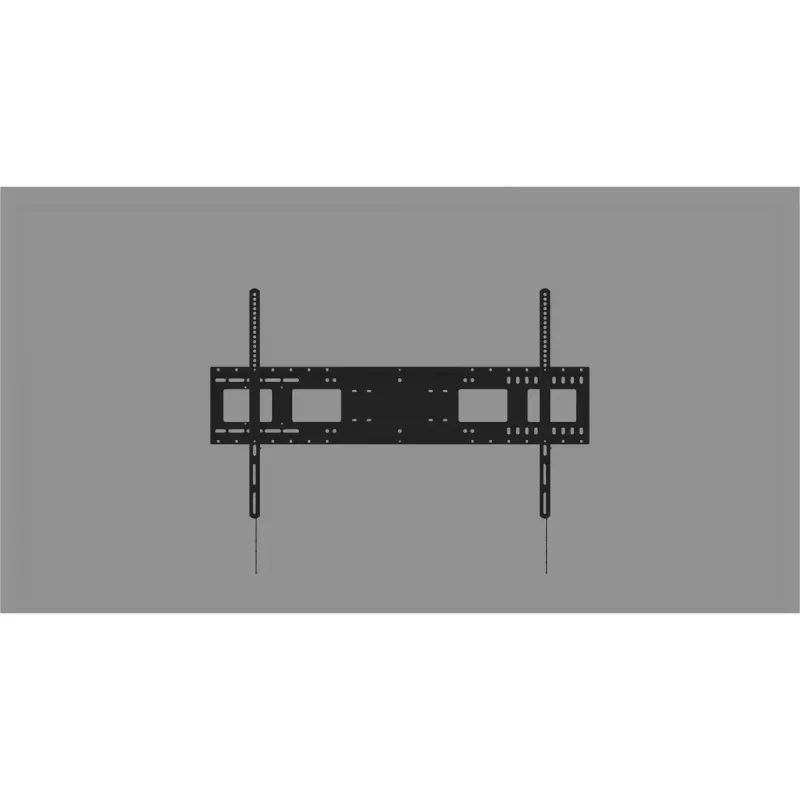

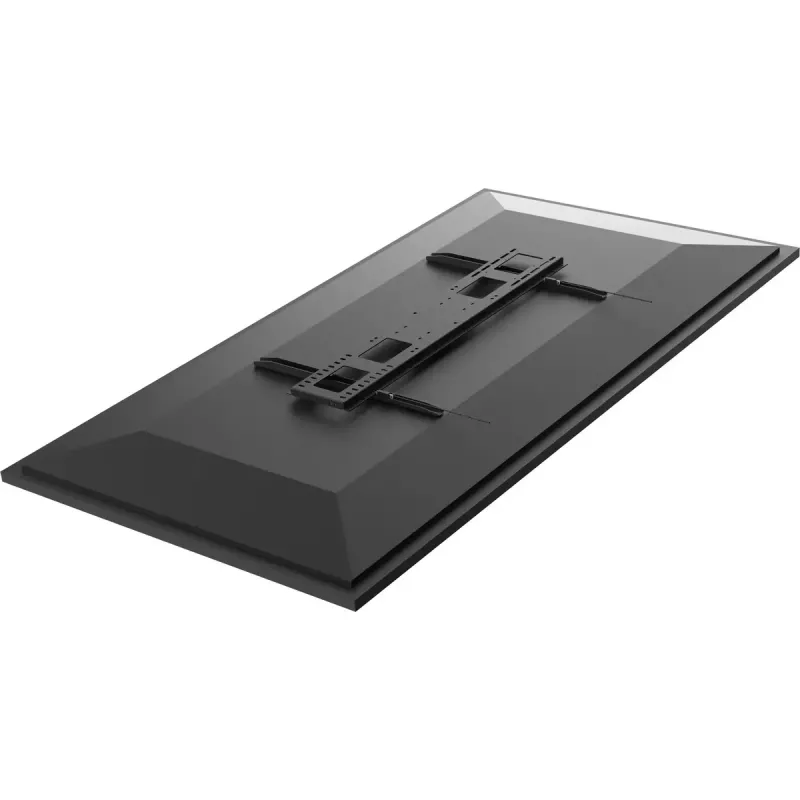

Fix the wall plate to a suitable structural surface using appropriate anchors for the wall type, then attach the vertical arms to the rear of the display using the supplied M5, M6 or M8 bolts as required by the display’s VESA pattern. Hang the display on the horizontal section and engage the latches; trim the plastic pull-rods so they sit hidden behind the display. Use the slotted holes on the wall plate to level the screen after fixing. Where required, connect optional accessories such as the video-conference shelf, rotary bearing or side shelf following the accessory instructions.

Recommendations

Ensure the mounting surface and fixings are rated to support the combined weight of the display and any accessories. Do not use the mount for curved screens. For portrait rotation, fit the optional rotary bearing and secure the vertical arms from behind to prevent downward movement. Use appropriate anchors for the wall material and consult a professional installer for heavy or high installations.
