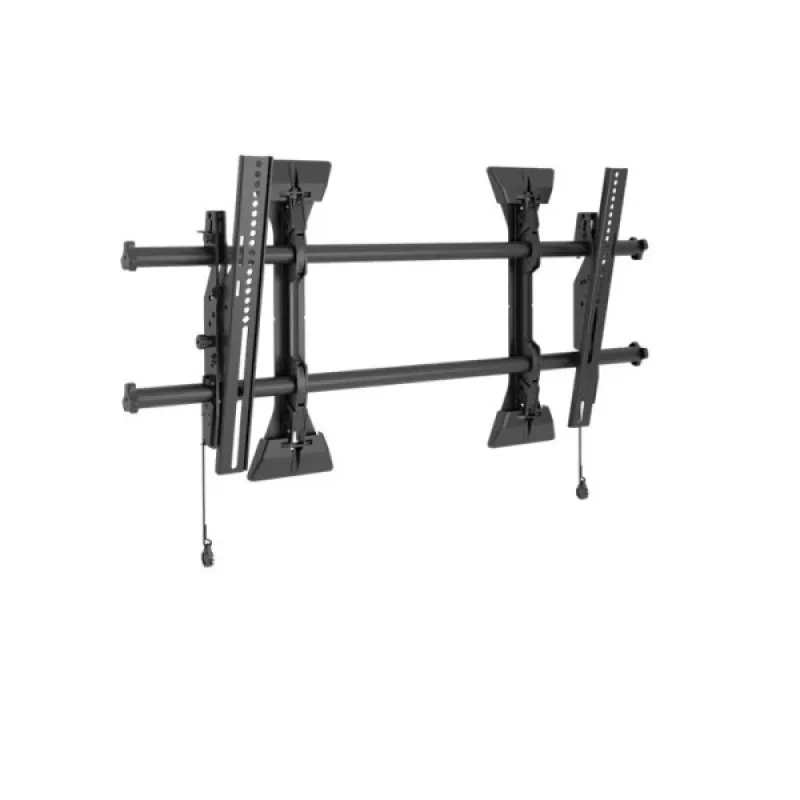

Držiak signage displeja Chief LTM1U 160 cm (63 palcov) čierny

The Chief LTM1U signage display mount supports large flat-panel screens up to 160 cm (63") and is finished in black. Designed from installer feedback, this micro-adjustable tilt wall mount combines low-profile appearance with features that simplify installation, adjustability and cable management. The mount accommodates a wide range of displays and VESA patterns, offers secure locking and ships with a custom hardware kit for staged installation.

Advantages

The mount provides integrated teardrop wall plate design for faster wall-plate installation and Centerless Shift that allows up to 17.5" (445 mm) of post-installation lateral adjustment for precise centering. Centris low-profile tilt balances the screen around its center of gravity while maintaining a slim profile. ClickConnect gives an audible click when the display engages, and set screws keep the assembly rigid and secure. Improved cable management, Quick-Store cord magnets, nesting spacers for adjustable depth and integrated security features further enhance usability and longevity.

Suitable for

• Retail signage and digital menu boards
• Corporate lobbies and conference rooms
• Educational displays and common-area wayfinding
• Single large-screen installations up to 63" and 91 kg

Key specifications

• Model: Chief LTM1U
• Maximum screen size: 160 cm (63")
• Maximum weight capacity: 91 kg
• Maximum VESA: 830 x 400
• Colour: Black
• Supports one display
• Up to 17.5" (445 mm) lateral Centerless Shift

How to use

Mount the teardrop wall plate to the wall using appropriate anchors for the substrate and pre-install bolts in the plate if desired. Attach the compatible VESA brackets to the display, lift the display onto the mount until ClickConnect engages, then fine-tune lateral position using the Centerless Shift mechanism and set the tilt with Centris adjustment. Secure set screws and connect cables using the built-in cable stand and end-cap channels. Follow the included hardware kit instructions for staged or final installation.

Recommendations

Use suitable wall anchors or attach to studs for the rated 91 kg capacity, verify VESA compatibility (up to 830 x 400) before installation, and keep cords organized with the Quick-Store cords and built-in cable management. For public or high-traffic locations, use the integrated security features and tighten set screws periodically.
