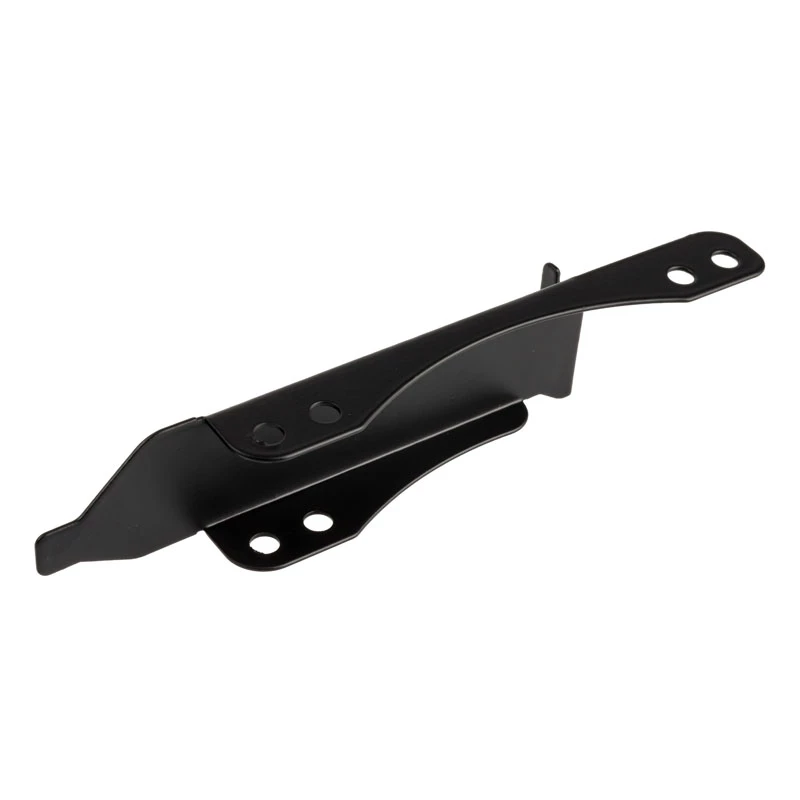

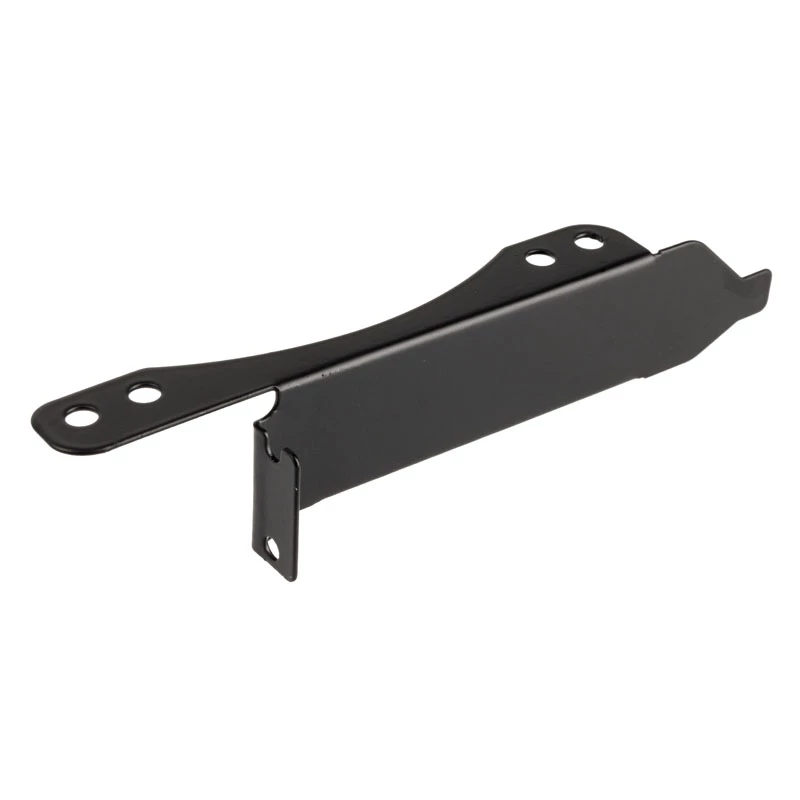

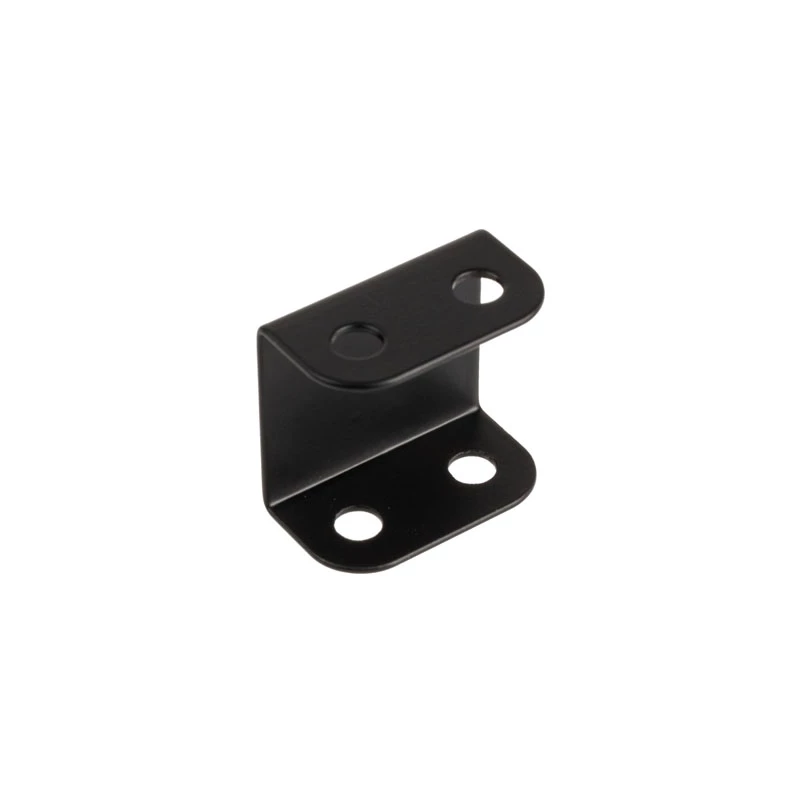

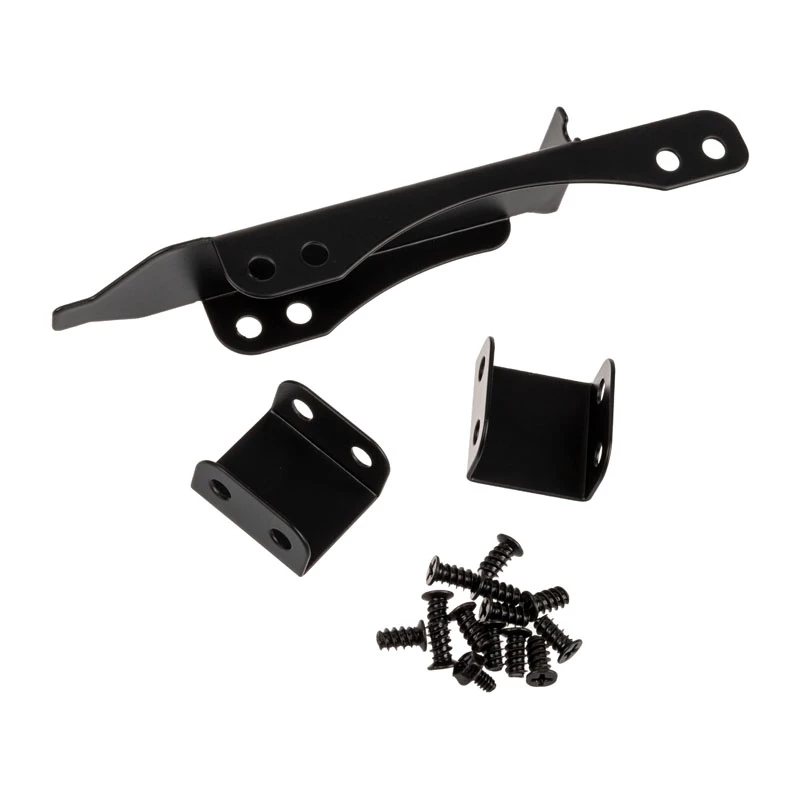

Držiak ventilátora Akasa AK-MX304-12BK

The Akasa AK-MX304-12BK fan holder allows mounting one or two 120 mm cooling fans next to a graphics card PCI slot to improve GPU and system heat dissipation. Made of high-quality metal with a black varnish finish, the holder is intended for secure installation in PC chassis or rack systems and provides a compact, durable solution for directing airflow toward the GPU area.

Advantages

The metal construction with black varnish provides corrosion resistance and long-term durability. The adapter accepts one or two 120 mm fans via a standard PCI bracket, enabling targeted cooling for the graphics card and overall system. Its straightforward design allows simple assembly and integration into most PC cases with an available PCI slot.

Suitable for

• Adding active cooling to a GPU by mounting 120 mm fans beside the PCI slot
• Improving airflow in compact or poorly ventilated PC cases
• DIY PC builds and repairs requiring targeted cooling of expansion cards

Key specifications

• Model: Akasa AK-MX304-12BK
• Compatible fan size: 120 mm (one or two fans)
• Material: metal with black varnish finish
• Dimensions (manufacturer data): width 32 mm, depth 153.2 mm, height 29.2 mm
• Mounting: attaches to PCI bracket next to GPU
• Pack quantity: single unit

How to use

Install the holder into an available PCI slot bracket on the back of the PC case, secure it with the standard thumbscrew or case screw, then mount one or two 120 mm fans to the holder using the fan's mounting holes and screws. Connect the fans to appropriate fan headers or a fan controller, orienting airflow toward the GPU area to assist with heat dissipation. Verify clearance with adjacent components before finalizing installation.

Recommendations

Use quality 120 mm fans with appropriate airflow and noise characteristics for your system, and ensure cables are routed safely to avoid contact with fan blades. Check that the holder does not obstruct other expansion cards and confirm the case has sufficient clearance for the installed fans.
