Držiak video soundbaru Chief pre Tempo flat Panel Wall Mount System, čierny, max. 9 kg

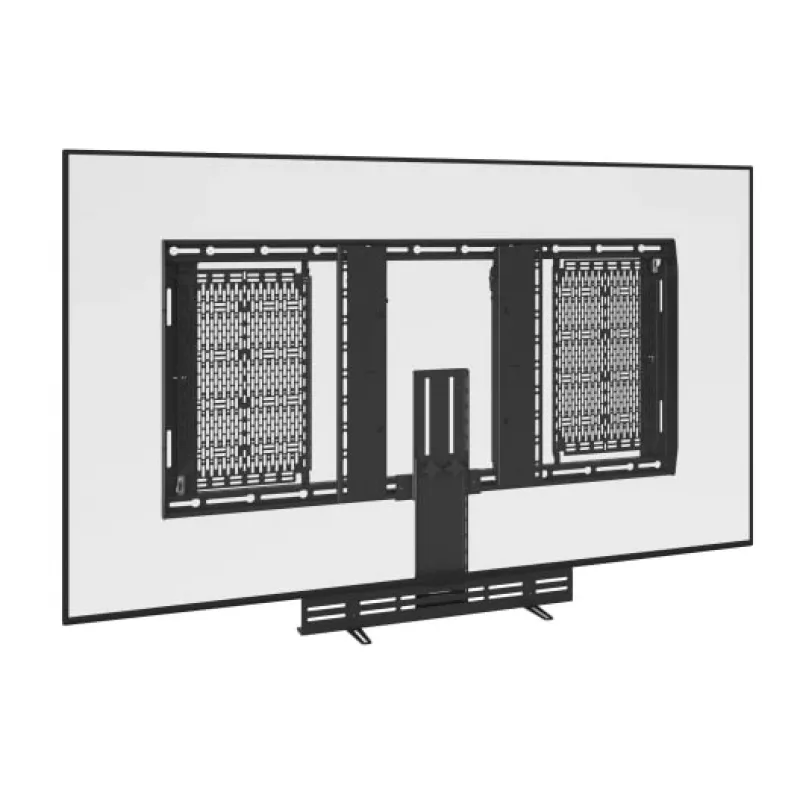

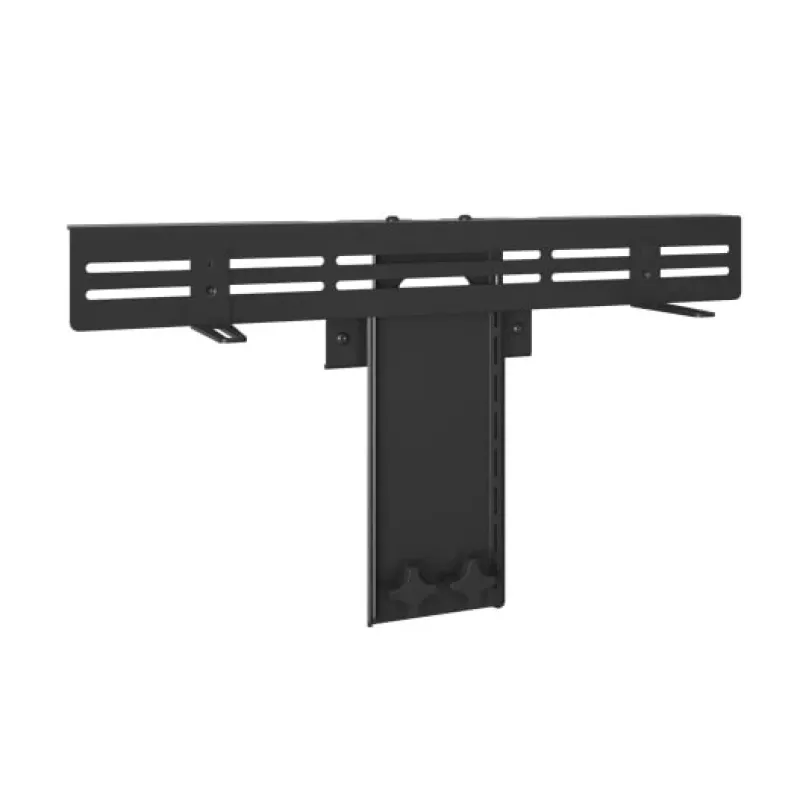

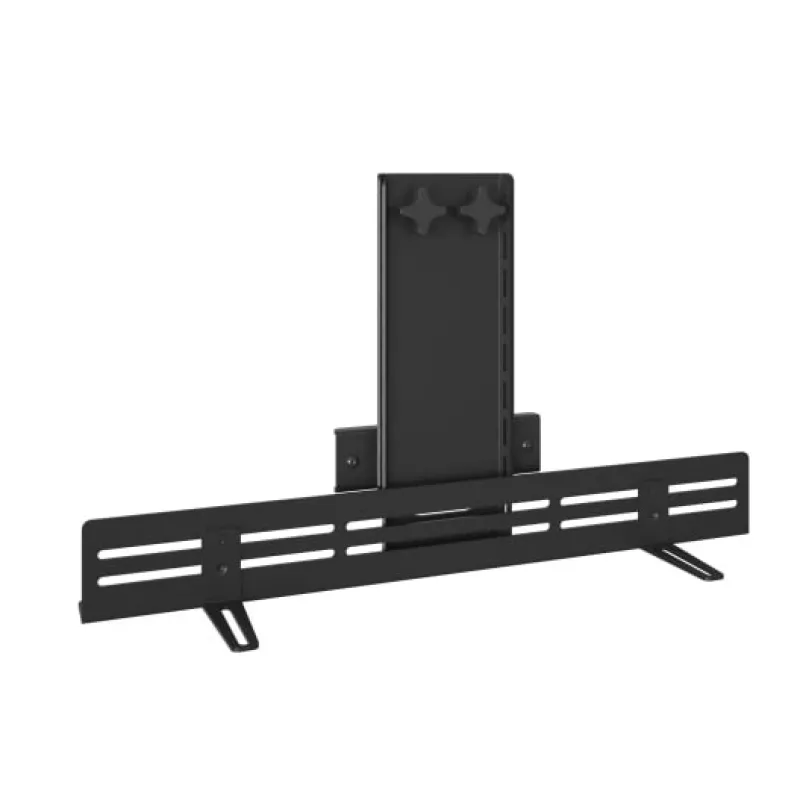

Chief Video-Sound Bar Mount for the Tempo flat panel wall mount system is a black accessory designed to attach a sound bar or compact camera beneath or near a mounted display. It integrates with the Tempo wall plate rail to provide a secure platform with adjustable height and lateral positioning. The mount is supplied as a single unit per pack and supports a maximum recommended load when mounted directly to the interface bracket.

Advantages

The mount slides and locks into the Tempo top or bottom rail with captive screw channel nuts for fast installation and secure attachment. Toolless height-adjust knobs provide up to 159 mm of vertical travel for precise placement above or below the display. Lateral adjustment along the wall plate rail makes it possible to align the sound bar with the screen or room layout. Built-in openings and slots on the vertical bracket simplify cable routing and help keep the installation tidy.

Suitable for

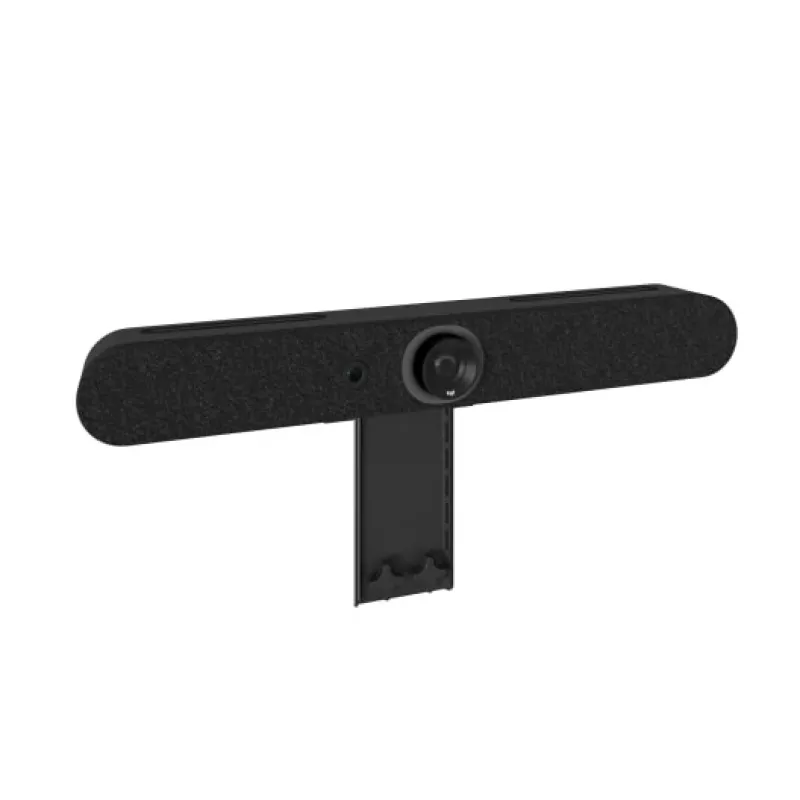

• Attaching sound bars to Tempo flat panel wall mount systems

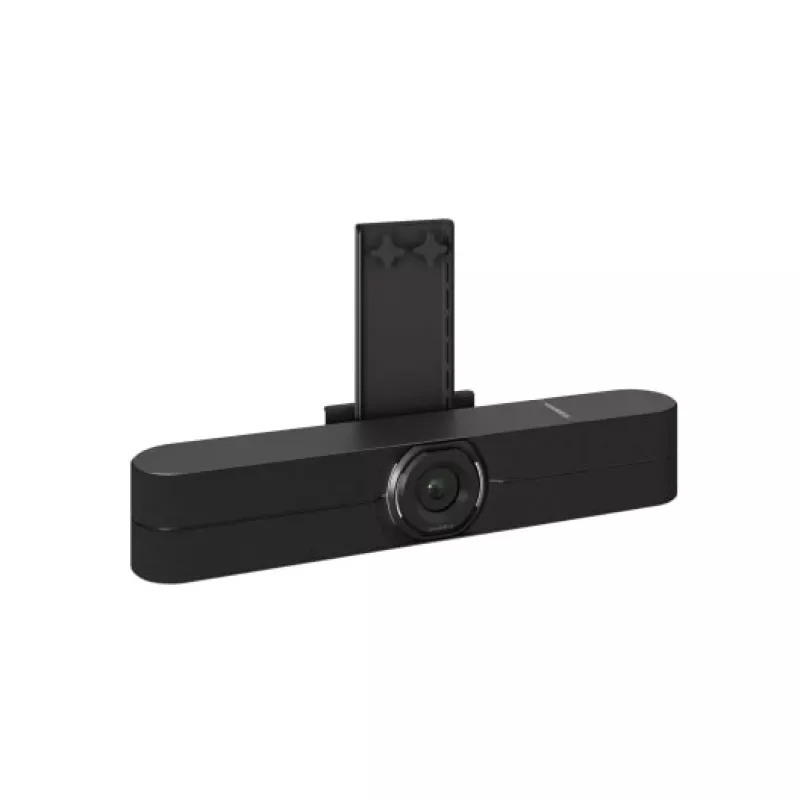

• Mounting compact PTZ or conference cameras near a display
• Installations requiring adjustable height and lateral positioning under or above screens

Key specifications

• Finish: black
• Maximum load capacity when mounted to interface bracket: 9 kg
• Alternate load capacity when using L-brackets: 6.8 kg
• Vertical adjustment range: 159 mm
• Supported installation distance from wall mount center line: 248 mm to 715 mm
• Cable management: window opening and side slots in vertical bracket
• Compatibility: fits most video-sound bars with rear or bottom mounting holes

How to use

Attach the mount to the top or bottom rail of the Tempo wall mount by placing the strut channel nuts into the rail and sliding the unit until it locks into position. Use the lateral shift feature to move the mount along the rail to the desired horizontal location. Adjust the height by turning the toolless knobs to raise or lower the shelf within the 159 mm travel range, then secure the position. Route sound bar or camera cables through the window opening and side slots in the vertical bracket to maintain a clean installation.

Recommendations

Verify the combined weight of the video-sound bar and any attached accessories does not exceed the specified capacity for the chosen mounting method. For heavier or irregularly shaped devices, use the interface bracket mounting option when possible and ensure all fasteners are tightened according to the Tempo system installation instructions.
