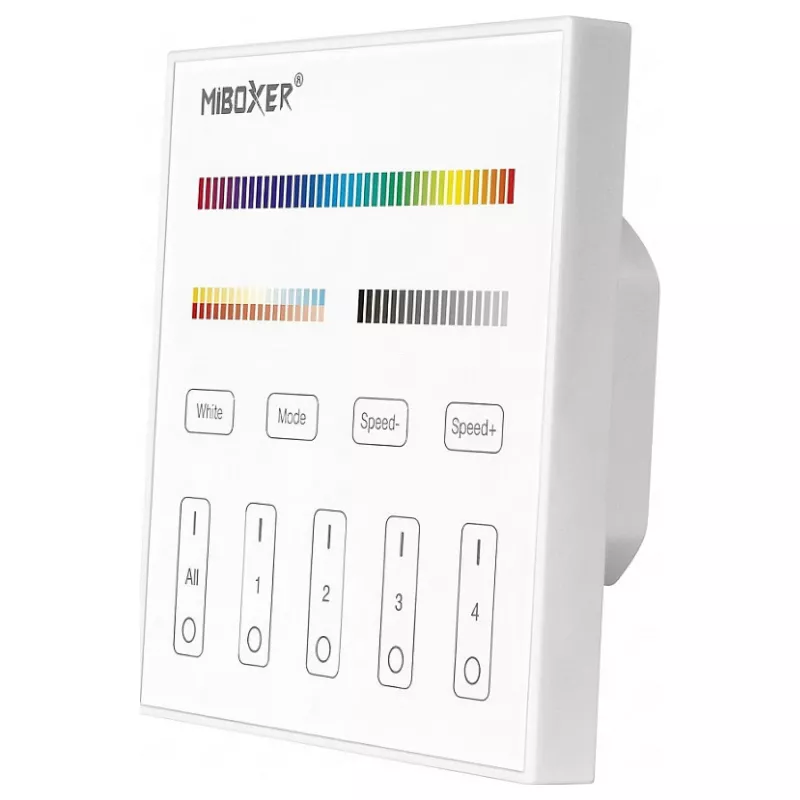

Synergy 21 LED DMX 5 v 1 Smart Touch Panel (X5) - MiLight/MiBoxer kompatibilný

The Synergy 21 LED DMX 5 in 1 Smart Touch Panel (X5) is a versatile wall-mounted controller designed for professional LED lighting systems. Compatible with both MiLight/MiBoxer 2.4GHz RF receivers and DMX512 decoders, this capacitive touch panel offers seamless control over single color, CCT, RGB, RGBW, and RGB+CCT lighting setups across four independent zones.

Advantages

Experience intuitive control with a sleek tempered glass touch panel. The X5 combines wireless RF convenience with wired DMX512 output, making it ideal for both residential and commercial installations. Its 5-in-1 control modes cover all common LED types, while the 0-100% dimming and color temperature adjustment (2700K-6500K) provide precise lighting customization. Memory function retains your last settings, and dynamic modes add ambiance.

Suitable for

• Smart home lighting systems
• Retail and hospitality environments
• Stage and architectural lighting
• DIY LED projects using MiLight/MiBoxer or DMX512 compatible devices

Key specifications

• Product Type: LED DMX Wall Panel Controller
• Control Method: Capacitive Touch Panel
• Wireless Protocol: 2.4GHz RF (MiLight/MiBoxer Compatible)
• Wired Output Protocol: DMX512
• Input Voltage: AC 100-240V, 50/60Hz
• Control Modes: Single Color, CCT, RGB, RGBW, RGB+CCT
• Number of Zones: 4
• Dimming Range: 0-100%
• Color Temperature Range: 2700K-6500K
• RGB Colors: 16 million
• RF Range: Up to 30m (line of sight)
• Installation: Standard 86x86mm wall box
• Material: Tempered glass panel, PC plastic housing
• Operating Temperature: -20°C to +60°C
• Protection Rating: IP20 (indoor use)
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with MiLight/MiBoxer 2.4GHz RF receivers or DMX512 decoders. Ensure proper installation in a standard wall box. Suitable for indoor use only.
