DSIT 19-palcový 8-násobný rackmount PDU s C14 konektorom a uzemňovacím kontaktom (DS-8PDU-C14-PE)

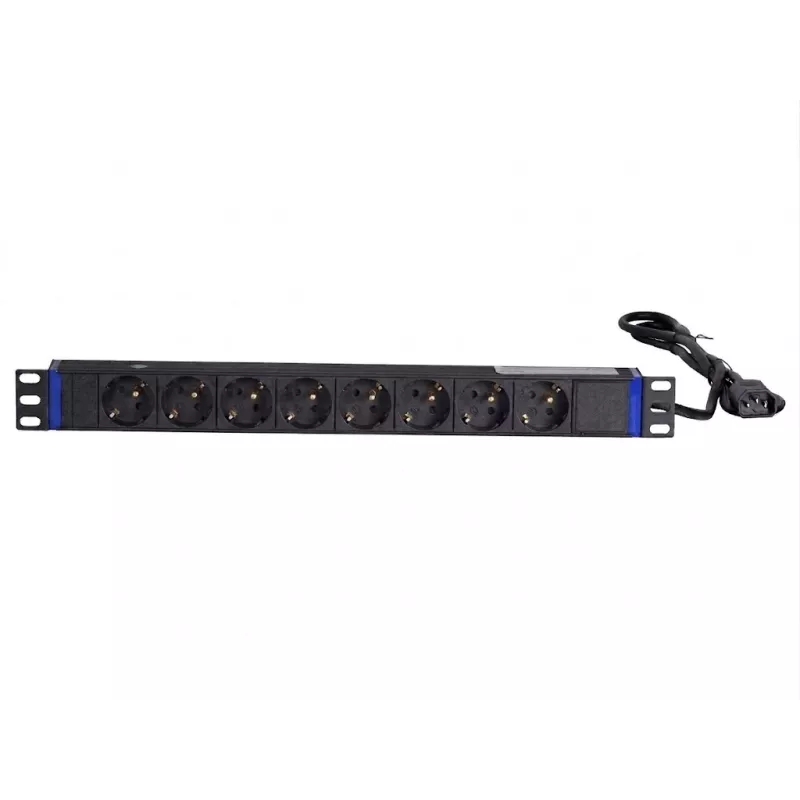

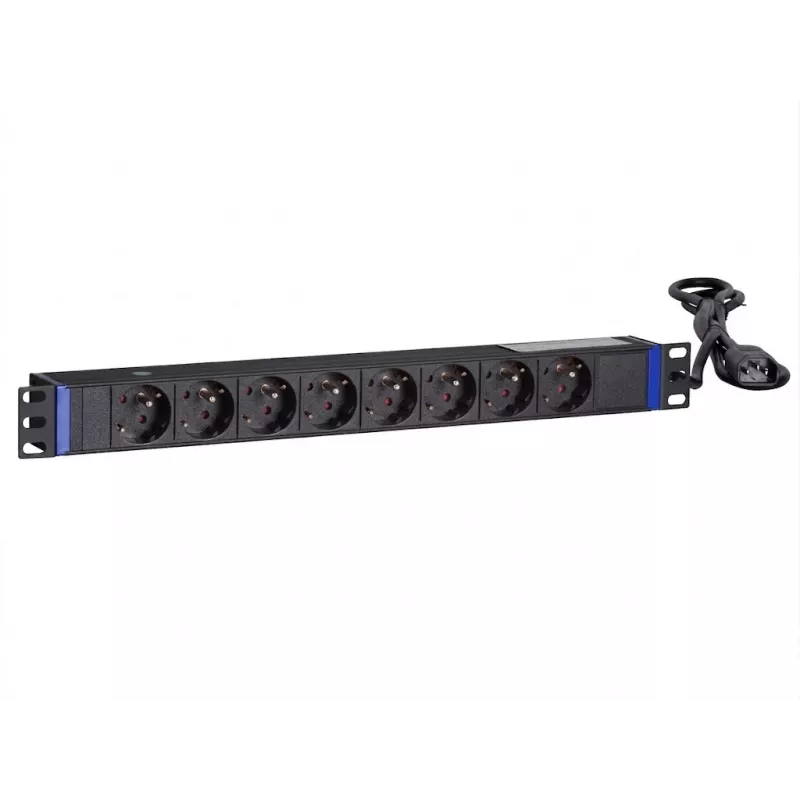

In a server room or network cabinet, power distribution needs to be reliable and space-efficient. The DSIT DS-8PDU-C14-PE is a 19-inch rackmount power distribution unit that provides eight Schuko outlets with earthing pins, all controlled by a single illuminated switch. Its 1U metal housing fits neatly into standard racks, and the 2-meter C14 input cable connects to common UPS or PDU outputs.

Key specifications

• Form factor: 19-inch rackmount, 1U height
• Outlets: 8 Schuko (Type F) with earthing pin

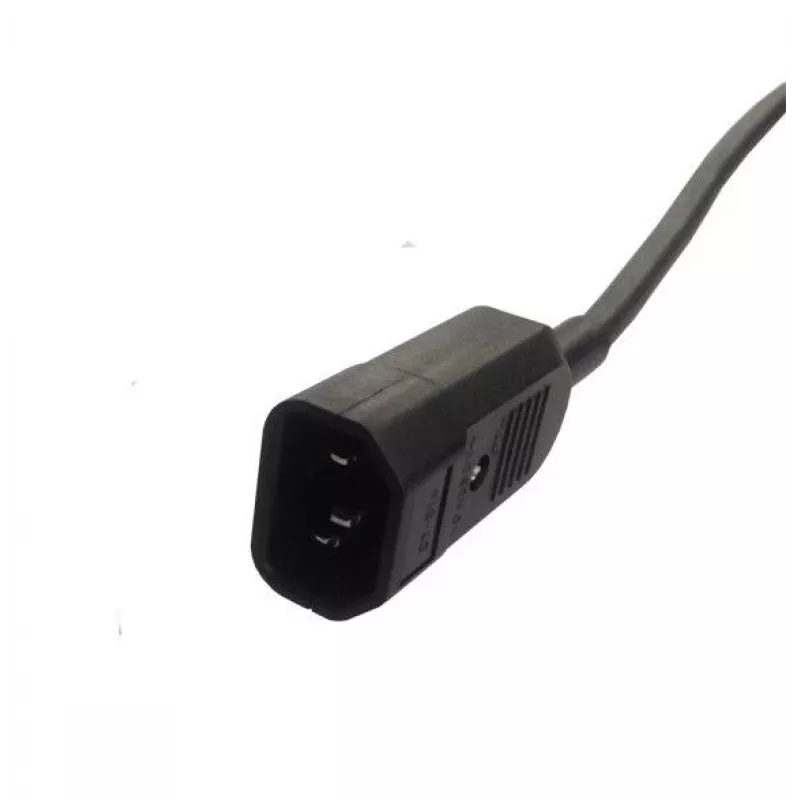

• Input: IEC C14 plug, 2 m cable (H05VV-F 3G1.5mm²)
• Electrical: 230 V AC, 50/60 Hz, 10 A max, 2300 W max
• Protection: Overload protection
• Switch: Illuminated on/off switch
• Housing: Metal, black
• LED indicators: Power on

Why choose it

The DS-8PDU-C14-PE simplifies power management in dense rack environments. Its eight earthed outlets let you connect multiple devices without separate adapters, and the illuminated switch gives a clear power status at a glance. The metal housing ensures durability, while the C14 input is compatible with many existing power cords.

Ideal use cases

• Powering servers, switches, and network equipment in 19" racks
• Distributing power in data centers, server rooms, and IT closets
• Expanding outlet capacity where a single C14 input is available

Good to know

The unit mounts horizontally in 1U of rack space and includes overload protection to help prevent circuit damage. The 2-meter cable offers flexibility for rack placement, and the black metal finish blends with standard rack hardware.
