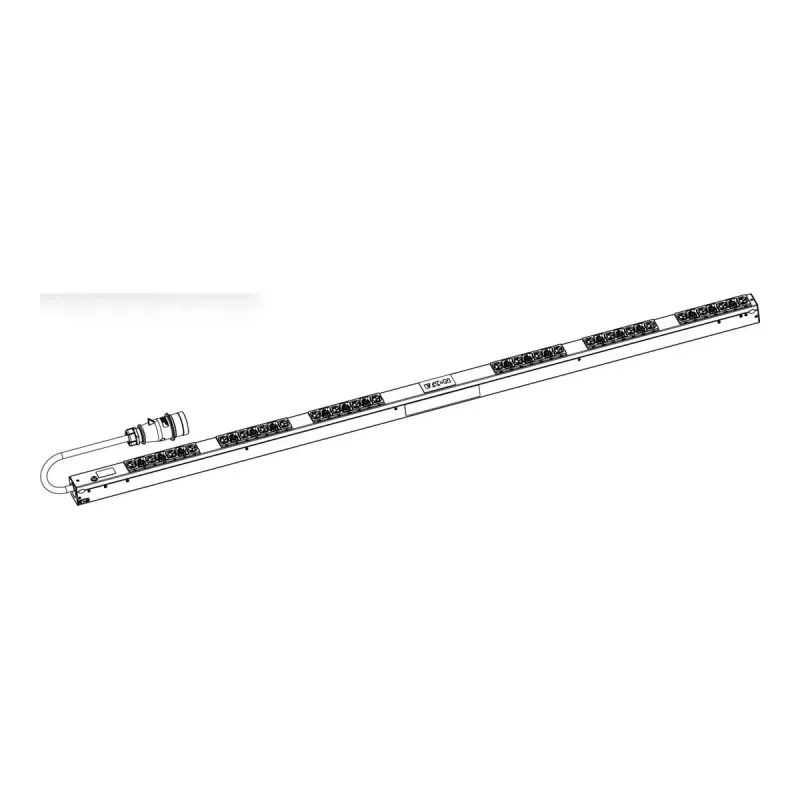

EATON PDU G4 BA 0U 309 16A 3P 24xC13 18xC39 Basic PDU

The EATON PDU G4 BA 0U 309 16A 3P 24xC13 18xC39 is a high-quality basic power distribution unit designed for professional data center and server room environments. This 0U vertical rackmount PDU provides reliable power distribution with 24 IEC C13 and 18 IEC C19 outlets, supporting 3-phase input up to 16A per phase. It features a 3-meter power cord with an IEC 60309 16A 3-phase plug, ensuring secure and efficient power delivery to your critical equipment.

Advantages

This PDU offers tool-less vertical mounting for easy installation in standard 19-inch racks. Its robust steel chassis and black finish ensure durability and a professional appearance. With overload protection via circuit breakers, it safeguards your connected devices against electrical faults. The basic design provides simple, reliable power distribution without unnecessary complexity, making it an ideal choice for cost-effective power management.

Suitable for

• Data centers requiring reliable power distribution for servers and networking equipment
• Server rooms with high-density power needs
• IT professionals seeking a straightforward, no-frills PDU solution
• Applications needing 3-phase power input with mixed C13 and C19 outlets

Key specifications

• PDU Type: Basic (Non-metered, Non-switched)
• Form Factor: 0U Vertical Rackmount
• Input Connector: IEC 60309 16A 3-Phase (5-pin)
• Input Voltage: 230/400V AC
• Input Current: 16A per phase
• Phases: 3-Phase
• Output Receptacles: 24 x IEC C13, 18 x IEC C19
• Total Output Outlets: 42
• Max Output Current (per phase): 16A
• Overload Protection: Yes, via circuit breakers
• Power Cord Length: 3 meters
• Mounting Type: Tool-less vertical rackmount
• Chassis Material: Steel
• Color: Black
• Operating Temperature: 0°C to 60°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure that your rack environment supports proper airflow and that the total load does not exceed 16A per phase. This PDU is best suited for use with Eaton UPS systems and compatible power accessories. Always follow local electrical codes and regulations during installation.
