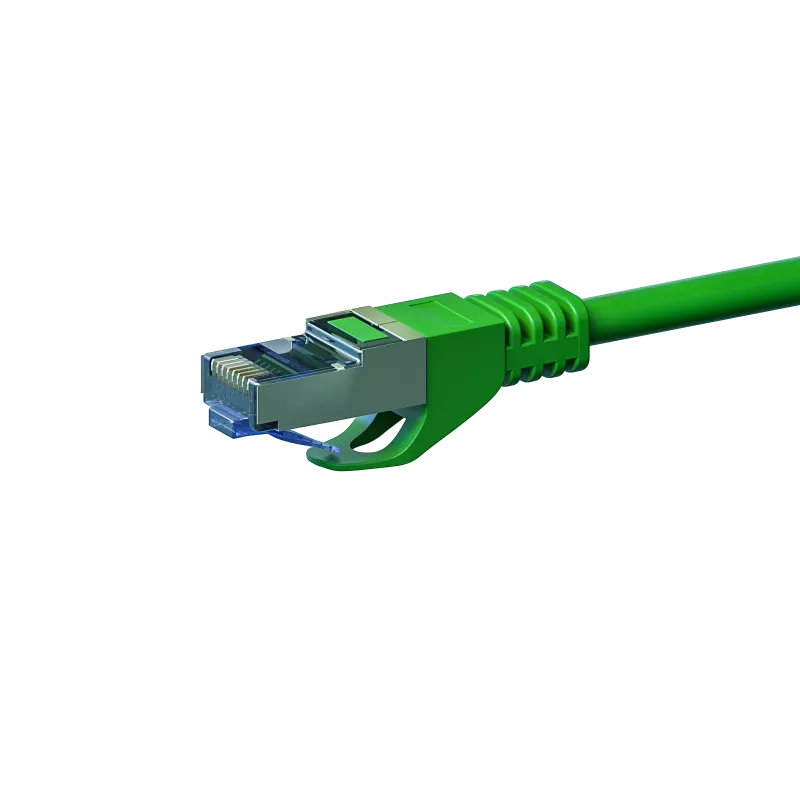

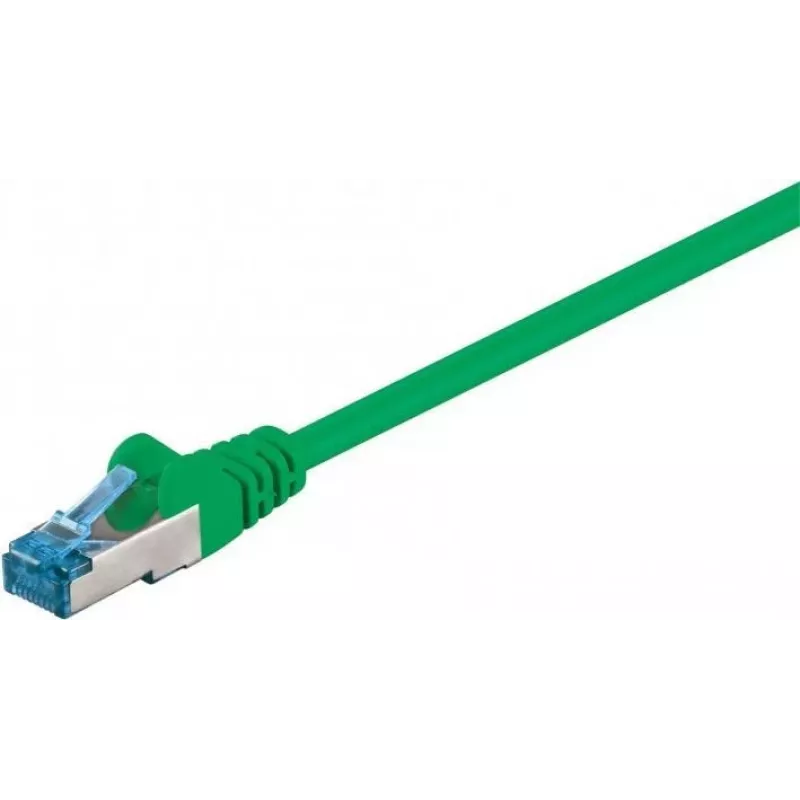

DSIT CAT 6a S/FTP LSOH sieťový patch kábel, 1 m, zelená

High-speed data transmission demands a cable that can keep up without interference or safety hazards. The DSIT CAT 6a S/FTP LSOH Patch Cable delivers reliable 10 Gigabit Ethernet performance in a compact 1-meter length, perfect for connecting devices in tight spaces. Its green LSOH jacket not only identifies your network runs but also ensures low smoke and zero halogen emissions in case of fire, making it safe for enclosed areas.

Who is it for

IT professionals and home users who need a dependable, high-bandwidth connection for data centers, office networks, or home setups. Ideal for connecting servers, switches, routers, and computers where space is limited but performance cannot be compromised.

Main features

• CAT 6a performance supports 10GBASE-T Ethernet up to 500 MHz bandwidth.
• S/FTP shielding: each pair is foil-screened and the overall cable is braid-shielded for maximum immunity to EMI/RFI.
• LSOH (Low Smoke Zero Halogen) jacket reduces toxic fumes and smoke during fire, enhancing safety.
• Stranded copper conductors (AWG 26/7) provide flexibility for easy routing in tight spaces.
• Gold-plated RJ45 connectors ensure corrosion resistance and reliable connectivity.
• Compliant with TIA/EIA-568-C.2, RoHS, and CE standards.

Specifications

• Length: 1 m
• Colour: Green
• Cable type: CAT 6a S/FTP
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor construction: Stranded
• Conductor gauge: AWG 26/7
• Wiring standard: TIA/EIA-568B
• Number of pairs: 4
• Outer diameter: 6.5 mm
• Impedance: 100 Ohm
• Compliance: RoHS, CE, TIA/EIA-568-C.2

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. Use cable ties to manage excess length and maintain proper airflow in racks. This cable is ideal for patch panels and wall outlets in structured cabling systems.
