DSIT DS-10Patch5-8FTP 10" 8-portový FTP CAT 5e patch panel, 1U racková montáž, tienený RJ45, LSA+ IDC, čierna

Network installers and IT administrators working in compact 10-inch wall-mount or desktop enclosures often struggle to find a patch panel that fits without wasting space. The DSIT DS-10Patch5-8FTP solves this by delivering eight shielded CAT 5e ports in a slim 1U metal housing, ideal for small offices, retail back rooms, or home labs where a full 19-inch panel is overkill. Each front RJ45 jack is fully shielded to reject EMI, while the rear LSA+ IDC blocks accept solid or stranded conductors from 22 to 26 AWG. Colour-coded T568A/B wiring guides are printed directly on the panel, and the integrated grounding point ensures a clean path to earth for the foil shield. Whether you're terminating a new drop or tidying an existing bundle, this panel keeps your links tidy and your signal clean.

Key specifications

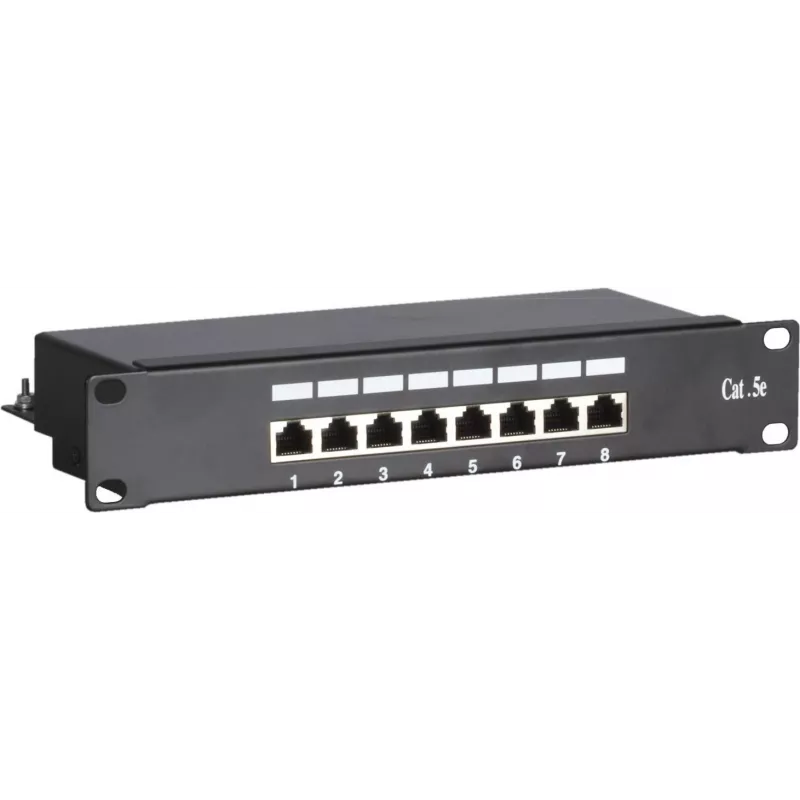

• 10-inch rack mount, 1U height, black metal housing

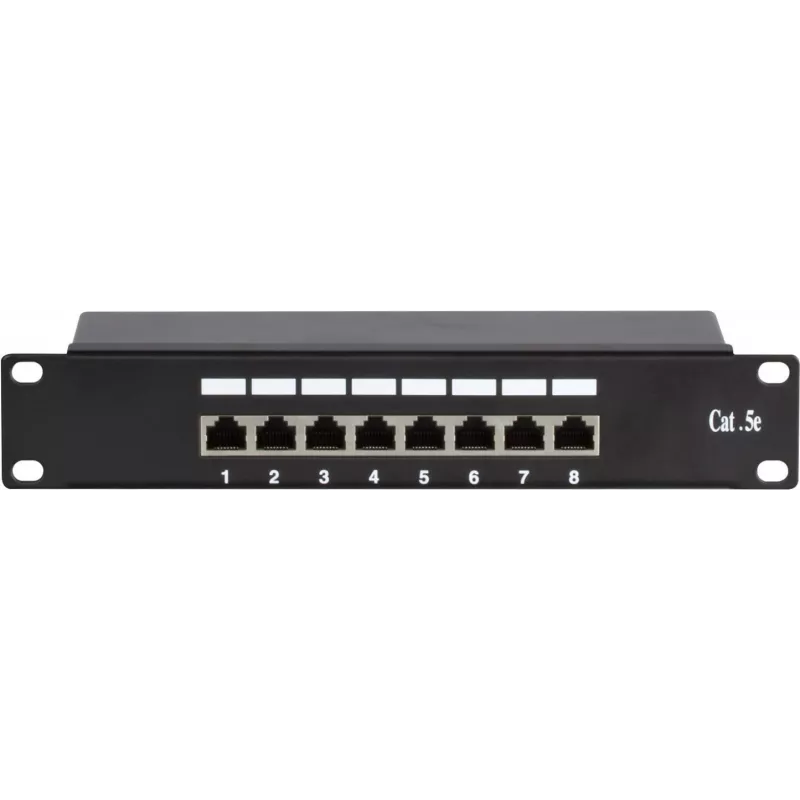

• 8 shielded RJ45 ports, CAT 5e performance, supports 10/100/1000Base-T

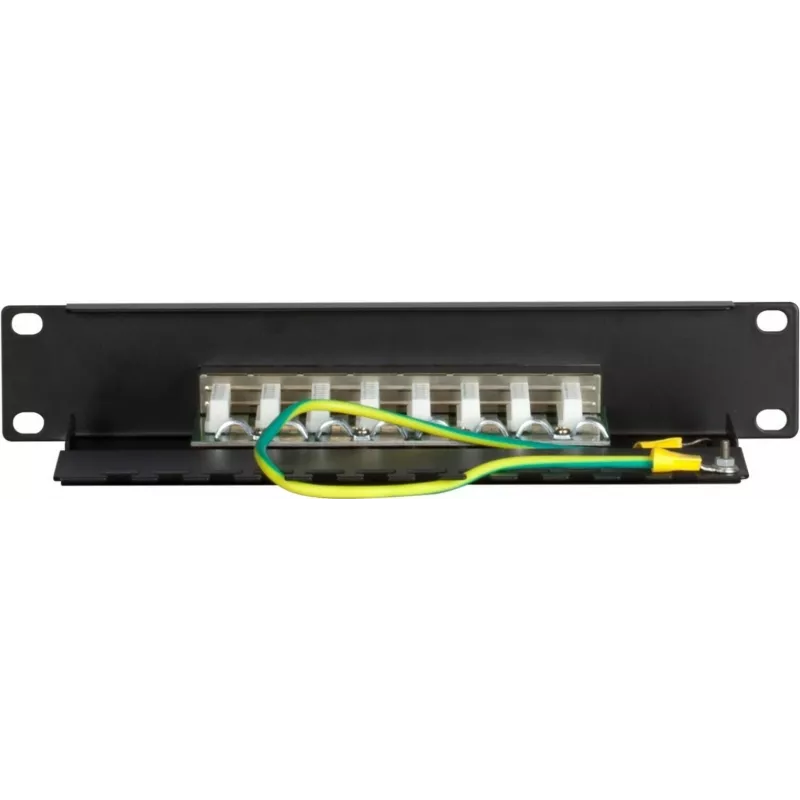

• FTP (Foiled Twisted Pair) shielding with integrated grounding wire
• Rear LSA+ insulation displacement connectors, tool-free punch-down with standard LSA+ tool
• Wiring standard: TIA/EIA 568A/B, colour-coded label
• Accepts 22–26 AWG solid or stranded conductors
• Dimensions: 254 mm wide × 44 mm high × 105 mm deep (approx.)
• Weight: 0.45 kg (approx.)

Why choose it

This patch panel is built for tight spaces without compromising on performance. The all-metal shielded design reduces alien crosstalk and electromagnetic interference, making it reliable even near power lines or industrial equipment. Its LSA+ IDC blocks provide gas-tight, vibration-proof terminations that stay secure for years. The 10-inch form factor is perfect for small structured cabling projects, and the black powder-coated finish blends into any rack or enclosure. Installation is straightforward: punch down the cables on the rear, then connect patch leads on the front—no special tools beyond a standard LSA+ punch-down tool.

Ideal use cases

• Small office or home office (SOHO) network distribution in 10-inch wall cabinets
• Retail point-of-sale systems, security camera NVRs, or IoT gateways in compact enclosures
• Temporary or mobile network setups where space and weight matter
• Upgrading legacy CAT 5e infrastructure to a shielded, rack-mountable solution
• Educational labs or test benches requiring a neat, accessible patch field

Good to know

The panel is compatible with all standard 10-inch racks and brackets; mounting screws are included. It is backward compatible with CAT 5 and CAT 3 cabling, though CAT 5e or better is recommended for Gigabit speeds. For best shielding performance, use FTP cable and ensure the grounding wire is connected to the rack's earth bus. The front ports are clearly numbered for easy documentation, and the panel can be used with both solid and stranded conductors—just match the wire gauge to the IDC slot. A punch-down tool is not included, but any standard LSA+ tool will work.
