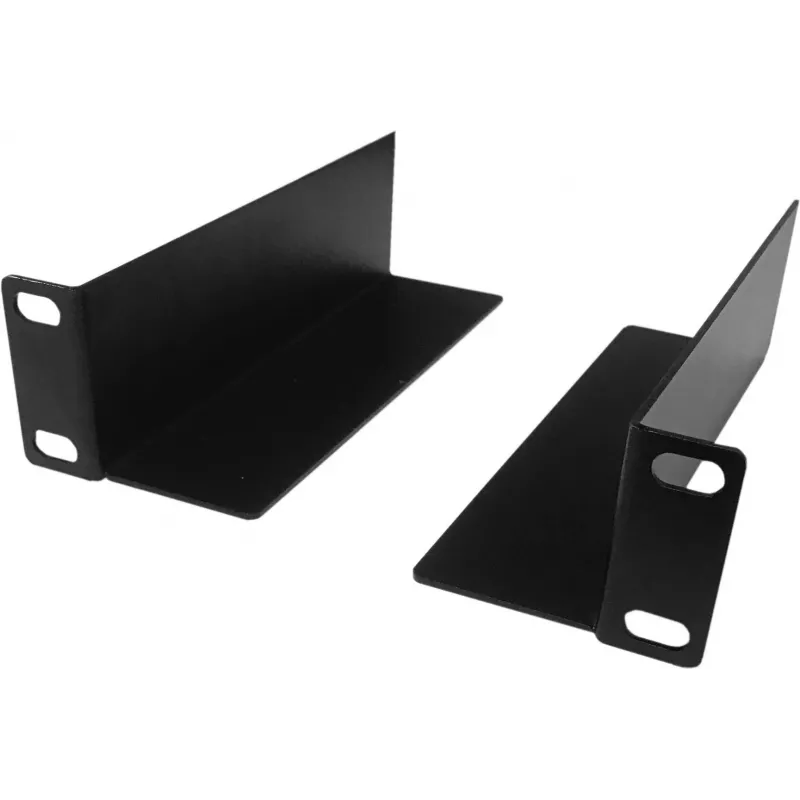

DSIT DS-LS10 10" rackové podporné dosky, hĺbka 136 mm, balenie 2 ks, čierne

When a 10-inch cabinet needs extra load-bearing stability, these DSIT DS-LS10 support plates step in where standard rails fall short. Instead of adding another shelf or bulky bracket, each 136 mm steel plate bolts directly to the rack frame, creating a solid ledge for compact switches, patch panels, or small UPS units. The pair gives you two mounting positions in one package, so a single cabinet can hold both a network device and a power strip without sagging or vibration.

Highlights

• 2 mm steel construction with powder-coated black finish resists scratches and corrosion
• Compatible with 10-inch (25.4 cm) racks, including Digitus and other standard 10-inch cabinets
• 136 mm depth suits shallow network equipment and keeps cable routing tidy
• Sold as a 2-pack for symmetrical left/right installation or dual-device support
• RoHS compliant, with screw-on mounting (fasteners not included)

In daily use

Installation is straightforward: align the plate’s mounting holes with the rack’s vertical rails, insert M6 screws (not included), and tighten. The 250 mm width spans the full internal width of a 10-inch cabinet, so even heavier devices sit evenly. Because the plates are only 136 mm deep, they leave room behind for patch cables and airflow—a practical advantage over full-depth shelves in tight enclosures.

Full specifications

• Product type: Rack support plate
• Rack size compatibility: 10-inch (25.4 cm)
• Plate depth: 136 mm
• Plate width: 250 mm
• Material: Steel
• Thickness: 2 mm
• Colour: Black
• Finish: Powder coated
• Quantity per pack: 2 pieces
• Mounting type: Rack mount (screw-on)
• Application: Equipment support in 10-inch network cabinets
• Brand compatibility: Digitus 10-inch cabinets and compatible racks
• Package contents: 2x support plates
• Environmental compliance: RoHS
• Weight per plate: approx. 0.3 kg
• Total weight (pack): approx. 0.6 kg

Final note

For integrators and IT staff working with compact 10-inch enclosures, the DS-LS10 pair is a low-cost way to add secure, vibration-free mounting points without modifying the cabinet. Keep a set on hand for quick equipment changes or field upgrades.
