DSIT STP Cat6 Slim bez nástrojov RJ45 konektor samec na kábel

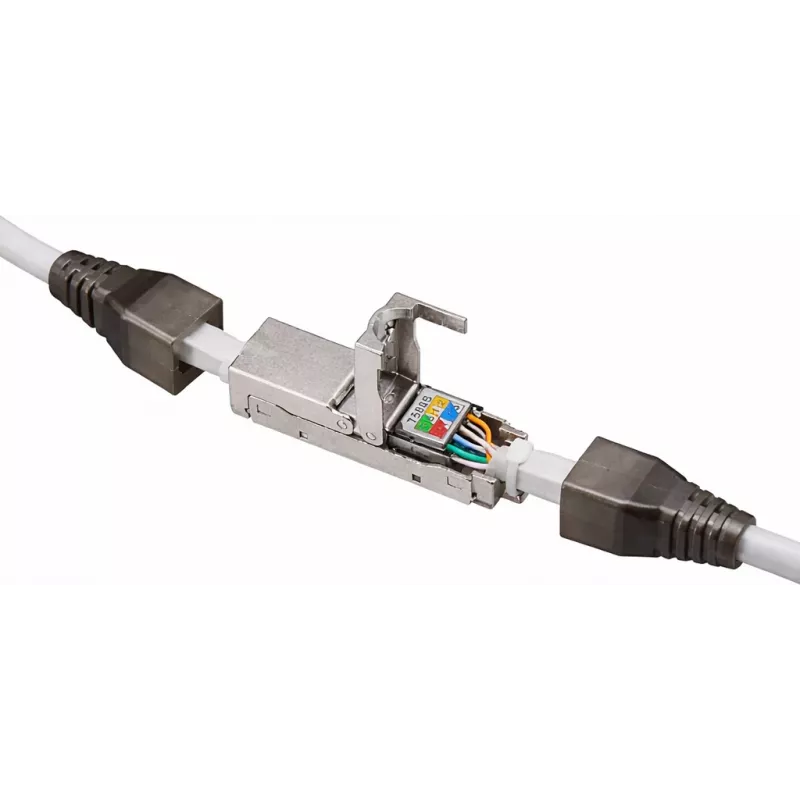

Unlike standard RJ45 plugs that demand crimping tools and precise wire preparation, the DSIT STP Cat6 Slim Toolless Connector (DC-RJ45-CAT6-SLIM) lets you terminate shielded twisted-pair cable in seconds—no crimper needed. Its slim zinc-alloy housing fits into high-density patch panels and tight spaces where bulky boots won’t go, while gold-plated contacts ensure reliable 10-Gigabit performance up to 250 MHz.

Highlights

• Toolless termination: simply insert conductors and snap shut—no crimping tool required.
• Cat6 performance: supports 10GBASE-T Ethernet and 250 MHz bandwidth for demanding networks.
• STP shielding: fully shielded die-cast zinc alloy body protects against EMI/RFI interference.
• Versatile wire compatibility: accepts 22–26 AWG solid or stranded conductors.
• Slim profile: ideal for high-density patch panels, wall plates, and tight cable management areas.
• Gold-plated contacts (50µm): corrosion-resistant and rated for over 750 insertion cycles.
• Reusable: limited re-terminations possible for field corrections or moves.

In daily use

Field technicians appreciate the colour-coded T568A/T568B wiring guide printed directly on the connector, reducing errors during on-site assembly. The toolless design eliminates the need for crimpers, saving time on large installations or quick repairs. The slim form factor allows adjacent ports to be used without interference, making it perfect for 48-port switches or patch panels. Whether you're building custom patch cables, repairing damaged connectors, or setting up a structured cabling system, this connector delivers consistent, high-speed performance.

Full specifications

• Connector type: RJ45 male plug (8P8C)
• Performance category: Cat6 (Category 6)
• Shielding: STP (Shielded Twisted Pair)
• Termination method: Toolless (field terminable)
• Supported wire gauge: 22–26 AWG
• Supported cable types: Solid and stranded conductors
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 250 MHz
• Contact plating: Gold-plated, 50µm
• Housing material: Zinc alloy (die-cast)
• Wiring standard: T568A and T568B (colour-coded)
• Operating temperature: -10°C to 60°C
• Insertion cycles: >750
• Compliance: RoHS, CE
• Application: On-site cable assembly, patch cable repair, network installations

Final note

For installers who value speed and reliability, the DSIT DC-RJ45-CAT6-SLIM offers a professional-grade toolless solution that meets Cat6 standards without the bulk. Its robust construction and slim design make it a smart choice for both new installations and retrofits.
