Duplexný optický patch kábel ShiverPeaks 77810 LC–SC 9/125µm OS1/OS2 3,0 m

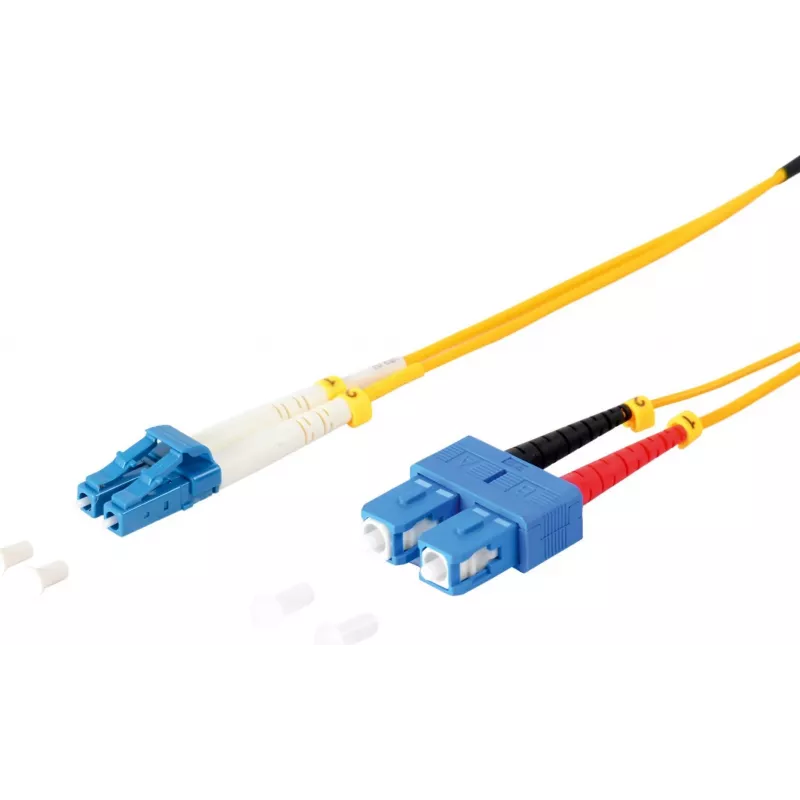

Fiber Optic Duplex Patch Cable ShiverPeaks 77810 LC–SC 9/125µm OS1/OS2 3.0 m is a singlemode duplex fiber patch cord with LC connector on one end and SC connector on the other. The cable contains two 9/125 µm singlemode fibers in a single yellow jacket and is specified for OS1 and OS2 standards. At 3.0 m length it provides duplex transmission for telecommunications, data center links and backbone fiber runs where stable singlemode performance and low attenuation are required.

Advantages

The ShiverPeaks 77810 duplex patch cable offers standardized LC and SC terminations for broad equipment compatibility and a 9/125 µm singlemode fiber design certified for OS1/OS2 use. The two-fiber duplex construction in one jacket simplifies cable management while maintaining separation of transmit and receive channels. The 3.0 m length is suitable for short interconnects in racks and patch panels where low insertion loss and consistent singlemode behaviour are important.

Suitable for

• Telecommunications links requiring singlemode duplex connections
• Data center patching between equipment with LC and SC ports
• Fiber backbone segments and patch panels with short cable runs
• Optical networking equipment testing and temporary interconnects

Key specifications

• Fiber type: singlemode 9/125 µm
• Standards: compatible with OS1 and OS2 singlemode specifications
• Connectors: LC on one end, SC on the other end (duplex)
• Configuration: duplex — two fibers in one jacket
• Length: 3.0 m
• Jacket colour: yellow

How to use

Route the duplex patch cable between the LC and SC ports of the devices to be connected, ensuring correct orientation for transmit and receive channels. Insert the LC connector into the LC adapter or port and the SC connector into the SC adapter or port until each connector latches. Avoid tight bends and kinks in the fiber; maintain the manufacturer’s recommended minimum bend radius during installation. If deploying in racks or patch panels, secure the cable to avoid strain on connectors and maintain orderly cable management.

Recommendations

Before installation, verify end-face cleanliness and inspect connectors; clean as necessary with appropriate fiber cleaning tools. Use this 3.0 m singlemode duplex cable for short interconnects where LC-to-SC connectivity is required and minimize unnecessary optical connections to preserve signal quality.
