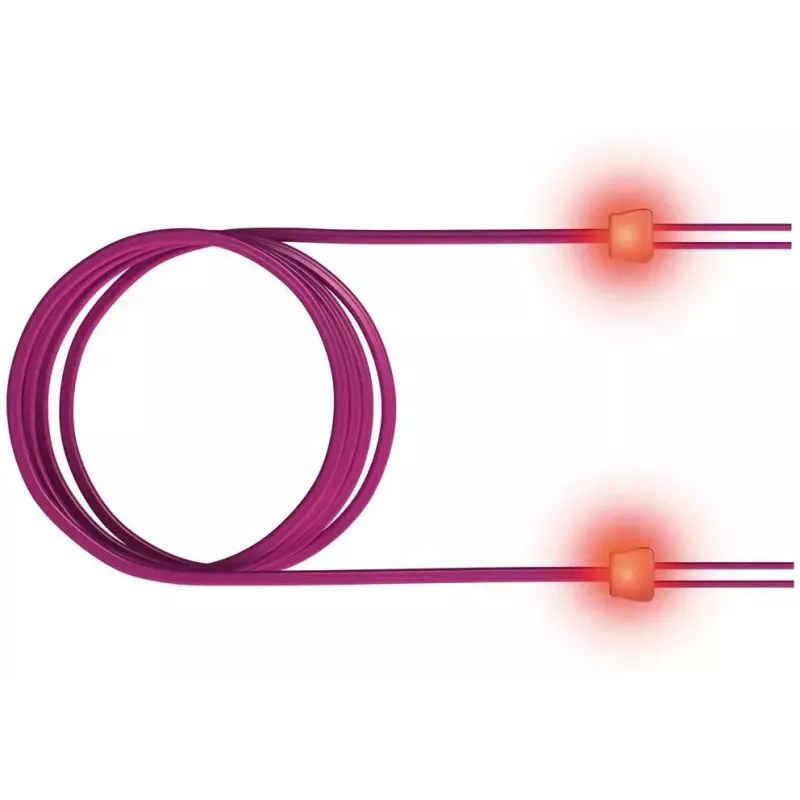

Optický kábel Sacon LSD42100010 1 m LC SC fialový

The Sacon LSD42100010 1m LC–SC OM4 fibre optic cable provides a single-meter duplex connection for short-range high-speed networks. Its 50 µm core and OM4 multimode construction are designed for reliable data transmission in data centre and enterprise environments. The cable features an LC connector on one end and an SC connector on the other, and its violet jacket helps with quick visual identification in cable bundles and patch panels.

Advantages

This OM4 multimode fibre cable supports high bandwidth and low attenuation over short distances, enabling stable full-duplex communication. The LC and SC connectors offer a mix of compact and robust termination styles suitable for a range of network equipment. The 1 m length reduces excess cable in dense rack environments, and the violet colour simplifies organisation and troubleshooting in complex installations.

Suitable for

• Short-run connections between switches, transceivers and patch panels in data centres
• Server-to-top-of-rack or mid-plane connections where 1 m reach is required
• High-density cabling environments requiring colour-coded fibre identification

Key specifications

• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Length: 1 metre
• Connector A: LC (single or duplex-ready form factor)
• Connector B: SC
• Mode: Multimode, full duplex capable
• Jacket colour: Violet

How to use

Insert the LC connector into the LC port of the network device or transceiver and the SC connector into the corresponding SC receptacle or patch panel. Ensure connectors are clean before mating to avoid signal loss; use a fibre cleaning tool if necessary. Route the cable to avoid tight bends and mechanical stress, observing minimum bend radius guidelines for multimode fibre. Verify link status and signal levels after installation to confirm proper operation.

Recommendations

Store and handle the OM4 fibre cable in a dry, dust-free environment. Avoid twisting or kinking the cable and keep connectors capped when not in use. For best performance, use with compatible multimode transceivers and patch panels and follow industry cleaning and inspection procedures before connection.
