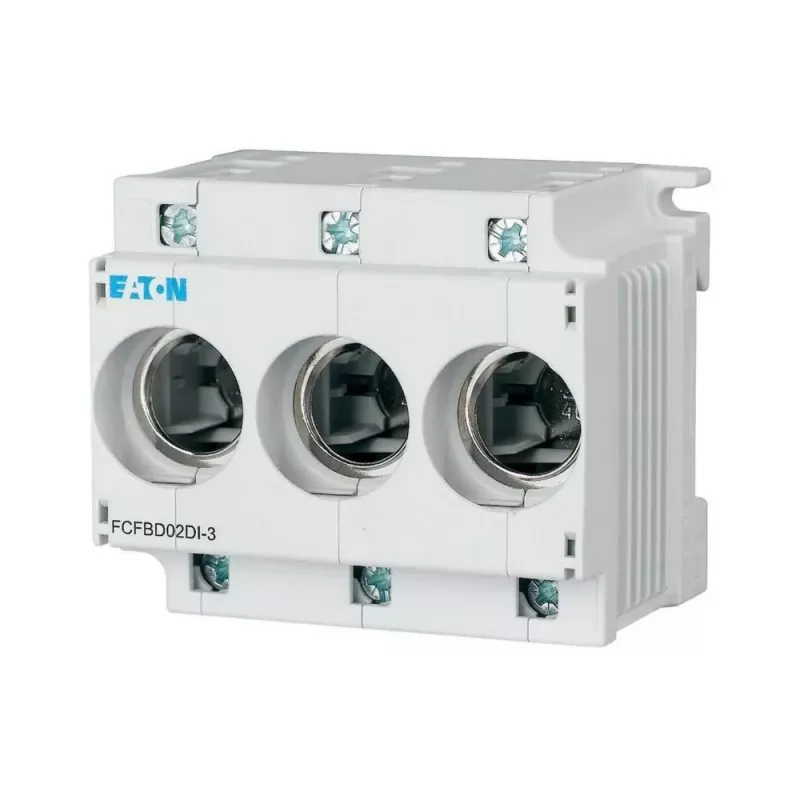

Eaton FCFBD02DI-3 D02 3-pólový držiak poistky, E18, 400 V AC, 63 A, DIN lišta 148810

In industrial and commercial electrical installations, protecting circuits from overcurrent and short circuits requires reliable fuse holders that can accommodate standardized fuse links. The Eaton FCFBD02DI-3 is a 3-pole fuse holder designed for D02 fuse systems with E18 fuse size, providing a secure and accessible mounting solution for fuses up to 63 A.

Who is it for

This fuse holder is intended for electricians, panel builders, and maintenance personnel who need to install or replace D02 fuses in distribution boards, control cabinets, or other DIN rail mounted enclosures. It is suitable for applications where three-phase circuits require individual fuse protection per phase.

Main features

• 3-pole configuration for three-phase circuit protection
• Compatible with D02 fuse system, E18 fuse size
• Rated operational voltage 400 V AC
• Supports fuse links up to 63 A
• DIN rail mounting (EN 60715) for easy installation
• Screw terminals with capacity 1.5 - 25 mm² for solid or stranded conductors
• Front side degree of protection IP20
• Housing made of self-extinguishing thermoplastic
• Compact module width of 3 TE (approx. 54 mm)

Specifications

• Product Type: Fuse Holder
• Fuse System: D02
• Fuse Size: E18
• Number of Poles: 3
• Rated Operational Voltage (Ue): 400 V AC
• Rated Current (In): up to 63 A (depending on fuse)
• Mounting Type: DIN Rail (EN 60715)
• Connection Type: Screw Terminals
• Terminal Capacity (Solid/Stranded): 1.5 - 25 mm²
• Degree of Protection (IP): IP20 (front side)
• Operating Temperature: -25 to +60 °C
• Housing Material: Thermoplastic, self-extinguishing
• Module Width: 3 TE (approx. 54 mm)

Tips

When installing, ensure the fuse holder is mounted on a standard 35 mm DIN rail and that the supply is disconnected. Use appropriate screwdrivers to tighten terminals to the recommended torque. For replacement, always use D02 fuse links with E18 size and correct current rating for the circuit.
