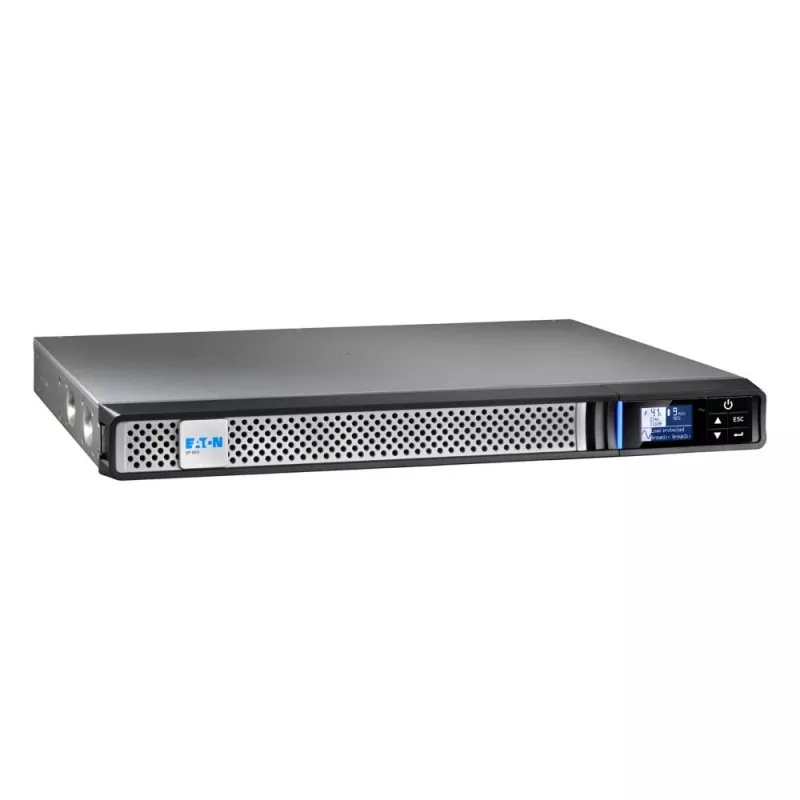

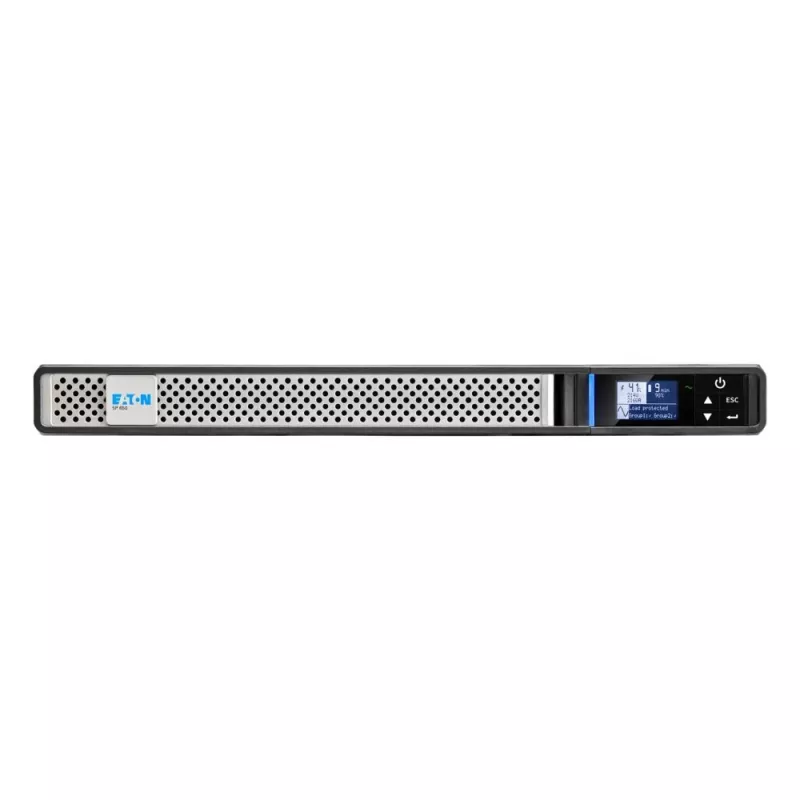

Záložný zdroj Eaton 5P650IRG2 0,65 kVA 520 W 4 AC výstupy

The Eaton 5P650IRG2 is a line-interactive uninterruptible power supply designed for small racks and network closets. With a capacity of 0.65 kVA (520 W) and a 1U rackmount form factor in black, it provides battery backup and voltage regulation for critical equipment. The unit uses sealed lead-acid battery technology and delivers short-term runtime to maintain servers, network devices, or storage during power disturbances. It complies with relevant IEC/EN standards and UL 1778 certification for safety and performance.

Advantages

The UPS offers automatic voltage regulation to protect connected devices from brownouts and surges while minimizing battery use during minor fluctuations. A compact 1U rackmount design saves space in server cabinets and allows straightforward installation in standard racks. The sealed lead-acid battery provides predictable backup times, and integrated USB communication enables basic monitoring and graceful shutdown when paired with management software.

Suitable for

• Small server racks and network closets
• Edge routers, switches and firewalls
• Network-attached storage and backup devices
• Point-of-sale systems and small business workstations

Key specifications

• Output power: 520 W
• Output power capacity: 0.65 kVA
• AC outlets quantity: 4
• USB communication port: 1 (USB 2.0)
• Form factor: 1U rackmount
• Battery type: sealed lead-acid
• Typical runtime: approximately 2 minutes at full load, approximately 9 minutes at half load
• Product colour: black
• Weight: 8.6 kg

How to use

Install the Eaton 5P650IRG2 in a standard 19-inch rack using appropriate mounting hardware and ensure adequate ventilation around the unit. Connect critical equipment to the provided AC outlets and plug the UPS into a reliable mains supply. Use the USB 2.0 port for connection to monitoring software on a management station to enable orderly shutdown and event logging. Perform initial battery charge as recommended by the manufacturer before relying on backup power.

Recommendations

Place the UPS in a climate-controlled environment with ambient temperature and humidity within the ranges specified by the manufacturer. Regularly test the battery and replace it according to the service life to ensure reliable backup. Avoid connecting devices that exceed the rated output power and distribute loads across outlets to prevent overloading.
