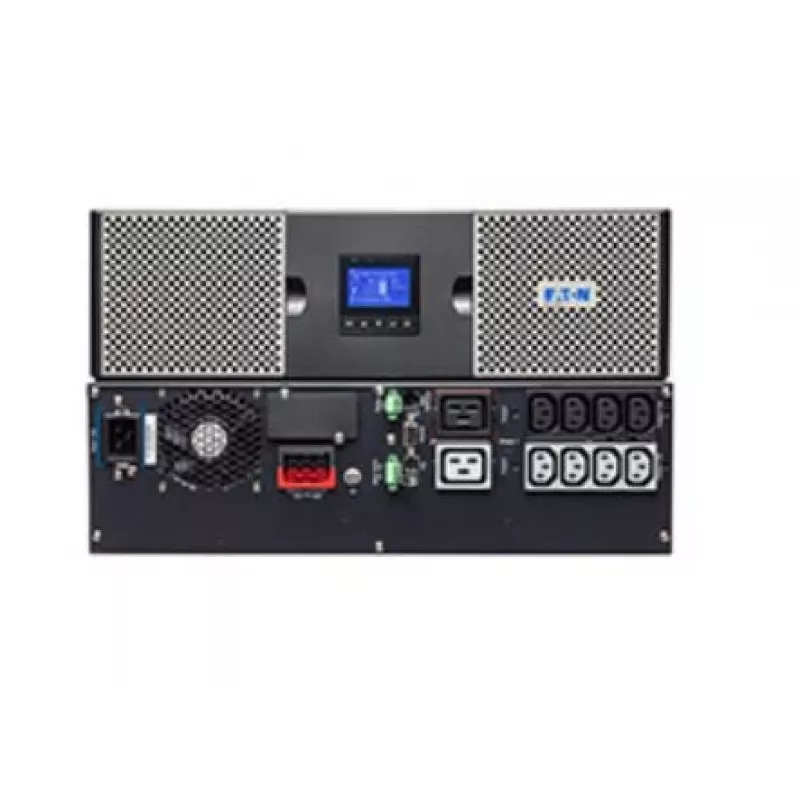

Záložný zdroj napájania Eaton 9PX2200IRT3U

The Eaton 9PX2200IRT3U is a double-conversion online UPS offering 2.2 kVA (2200 W) of output power in a rackmount/tower form factor. Designed to protect critical equipment, it provides battery-backed AC power through ten AC outlets and uses sealed lead-acid battery technology. The unit is certified to IEC/EN standards and is supplied in black, with a compact design suitable for server racks or standalone installations where continuous, clean power is required.

Advantages

The Eaton 9PX2200IRT3U delivers continuous online double-conversion topology that isolates connected devices from mains disturbances and provides consistent output voltage and frequency. With ten AC outlets including a mix of C13 and C19 types, it supports multiple devices simultaneously. The integrated sealed lead-acid battery provides a typical runtime of around 10 minutes at half load, allowing for orderly shutdowns or short-term operation during outages. The single USB 2.0 port enables basic communication and monitoring with management software or local systems.

Suitable for

• Rackmount servers and network switches in small to medium data racks
• Workstations and storage devices requiring clean, uninterrupted power
• Edge computing, telecommunication cabinets, or on-site equipment rooms
• Environments where predictable short-term runtime is needed for graceful shutdown

Key specifications

• Output power capacity: 2.2 kVA / 2200 W
• Topology: Online double-conversion UPS
• AC outlets: 10 outputs (C13 and C19 types)
• Battery type: Sealed lead-acid
• Typical backup time: Approximately 10 minutes at 50% load
• Form factor: Rackmountable or tower configuration
• Communication: 1 × USB 2.0 port for monitoring
• Colour: Black
• Weight: 24.5 kg

How to use

Install the Eaton 9PX2200IRT3U in a compatible 19-inch rack using appropriate mounting brackets or place it on a stable surface in tower orientation. Connect critical equipment to the unit’s AC outlets, ensuring the total connected load does not exceed 2200 W. Plug the UPS into a properly grounded AC input supply and power it on following the user manual. Configure monitoring via the USB 2.0 port and management software if required. During operation the UPS provides continuous double-conversion power; when mains power fails, the sealed lead-acid battery supplies energy to maintain output for short-term runtime and safe shutdown procedures.

Recommendations

Position the UPS in a ventilated area free from excessive dust and heat, allow space for airflow, and avoid placing heavy objects on top of the unit. Periodically verify battery condition and runtime under load, and schedule maintenance or battery replacement according to usage and the manufacturer’s guidelines to ensure reliable backup performance.
